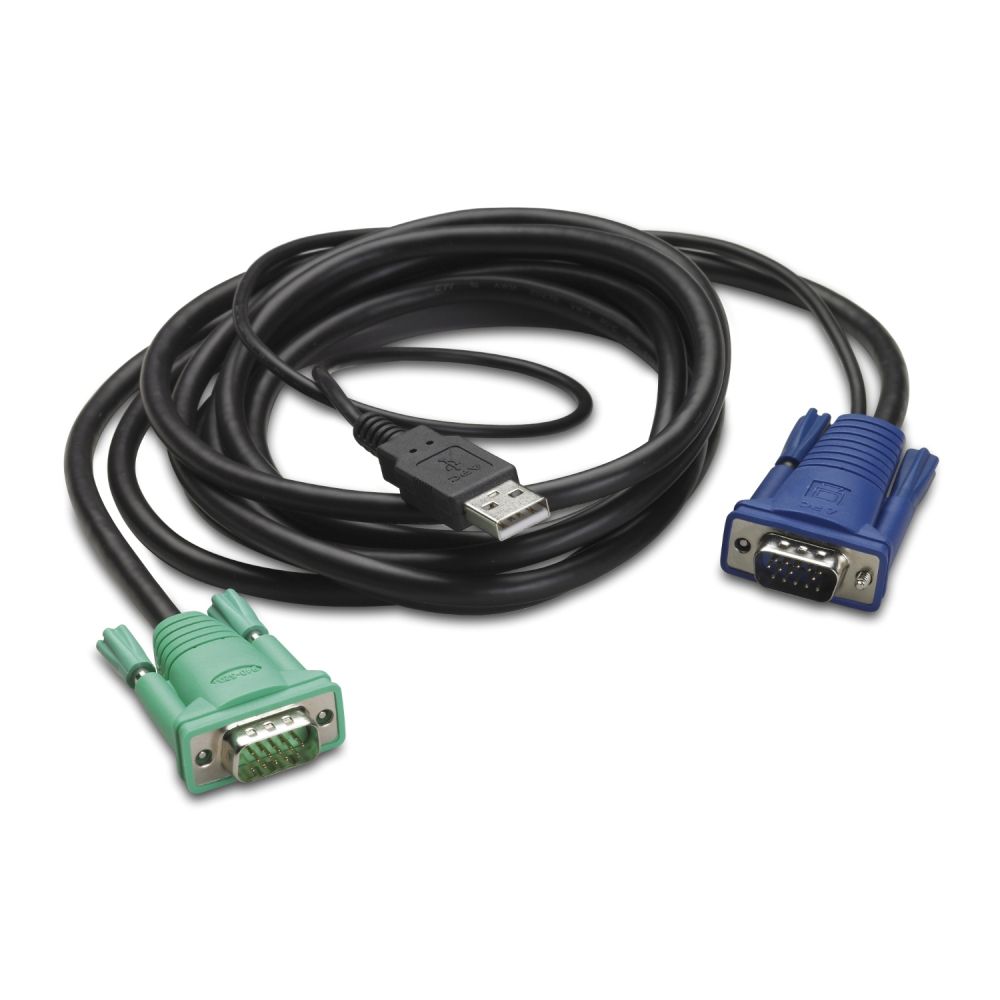

APC AP5821 Keyboard / Video / Mouse KVM cable USB HD-15 VGA M to HD-15 VGA M 1.83 m content_copy

The APC KVM cable AP5821 is an integrated USB and VGA connection cable for use in rack systems with LCD KVM switches. It is used to connect a KVM switch to a server or computer, enabling the operation and maintenance of servers via a central console. The cable is black and has a length of 1.8 meters, providing sufficient reach for typical rack installations.

Applications
This cable is primarily used in server and data center environments, where multiple servers are centrally controlled and monitored via a KVM switch. It enables access to system control, including POST and BIOS level, which is essential for troubleshooting and diagnosing system issues even when the operating system is not functioning. Its intended use is in integrated rack LCD KVM systems, such as models AP5808 or AP5816, to simplify system management.

Features and Equipment in Detail
The cable features a USB-A connector at one end and an HD-15 connector (VGA) at the other end. Both connectors are male plugs, allowing for direct connection to corresponding sockets on KVM switches and servers. The combination of USB and VGA enables the transmission of keyboard, mouse, and display data over a single cable, reducing the number of required connections. The cable length of 1.8 m provides sufficient clearance for cabling within a rack.

Technology Explained Simply
The cable transmits signals for keyboard, mouse, and display (VGA) over a single cable, making cabling in server rooms more organized. The USB connection handles input device control, while the HD-15 connector manages video transmission. The use of plug connectors (plug/plug) ensures a secure and reliable connection suitable for professional IT environments. The black color is standard for rack components to enable a uniform visual appearance.

Compatibility and Accessories
The cable is specifically designed for use with APC rack LCD KVM switches such as AP5808 and AP5816. It is used in conjunction with integrated rack LCD KVM systems to enable the management of multiple servers via a central console. Cascading with multiple KVM switches is possible, creating a modular solution for different platforms and enhancing system flexibility and future scalability.

Installation and Mounting
Installation is performed by directly connecting the USB-A plug to the KVM switch and the HD-15 plug to the server. The cable length of 1.8 m allows for flexible positioning within the rack. Cabling is typically carried out during the setup of a rack LCD KVM system, and should follow the manufacturer’s instructions to ensure proper function and maintenance.

Operational Advantages
The cable reduces the number of required cable connections, making cabling in server rooms more organized and easier to maintain. Direct connection to KVM switches enables centralized control of multiple servers, increasing efficiency in system management. Support for POST and BIOS access allows effective troubleshooting, even when the operating system does not boot. Cascading with additional KVM switches provides a scalable solution for growing infrastructures.

Certifications and Compliance
The cable complies with RoHS, REACH, and WEEE directive requirements, regulating environmental compatibility and disposal after use. Compliance with these standards is relevant for use in professional IT environments, particularly regarding the disposal of electrical and electronic equipment.

Certificates
Compliance certificates	RoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance
Logistics data
Country of origin	China
Harmonized System (HS) code	84733080
Customs product code (TARIC)	8544429090
Total carbon footprint (kg of CO2e)	0.2427430785
Other features
Depth	13 mm
Height	13 mm
Width	25 mm
Packaging data
Weight	70 g
Package length	16.5 cm
Package width	235 mm
Package height	50 mm
Package weight	80 g
Performance
Product colour	Black
Cable length	1.8 m
Connector 1	USB-A
Connector 2	HD-15
Connector gender	Male/Male
Technical details
Sustainable packaging
Proposition 65
Halogen free
Take-back system
Packaging without single use plastic

---
