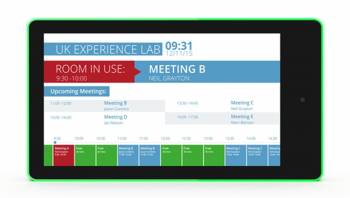

ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC/RFID
|
-5% 251,94 EUR 264,48 EUR |
|
|
( 299,81 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1783273 |
|---|---|
| Mfg Part No: | MT10RK3288A10PoENFC |
| UPC/EAN: | 4038816182890 |
| Weight: | 2 kg |
Product information for ALLNET MT10RK3288A10PoENFC:
ALLNET meeting room LED tablet 10 inch RK3288 NFC/RFID (NXP Mifare, Desfire)
Includes power supply and integrated wall mount with theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms, home automation with API.
NFC can also be used to implement time recording terminals or information terminals with ID, such as multi-unit residential complexes.
Currently tested Android time terminal software: PDS time works, but the config file has to be imported manually, the camera is not addressed. According to the manufacturer, AIDA time works with our article numbers 174715/174716/174717/174888 and 182897 The API/SDK for NFC/RFID and LED We are happy to provide it upon request.
Includes power supply and integrated wall mount with theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms, home automation with API.
NFC can also be used to implement time recording terminals or information terminals with ID, such as multi-unit residential complexes.
Currently tested Android time terminal software: PDS time works, but the config file has to be imported manually, the camera is not addressed. According to the manufacturer, AIDA time works with our article numbers 174715/174716/174717/174888 and 182897 The API/SDK for NFC/RFID and LED We are happy to provide it upon request.
- Full NFC Forum compliance with small form factor antenna
- Embedded NFC firmware that offers all NFC protocols as a pre-integrated feature
- Direct connection to the main host or microcontroller, through physical I2C bus and NCI protocol
- Ultra-low power consumption in polling -Loop mode
- Highly efficient integrated power management unit (PMU)
- supported RF protocols – NFCIP-1, NFCIP-2 protocol (see [8] and [11])
– ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
– NFC Forum T3T via host interface
– ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
– FeliCa PCD mode
– MIFARE PCD encryption mechanism ( MIFARE Classic 1K/4K)
– NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
– ISO/IEC 15693/ICODE VCD mode (see [9])
Further information can be found Please refer to the NFC data sheet. System CPU RK3288, Quad-core cortex A17, 1.6G RAM 2GB Internal memory 16GB Operation system Android 8.1/10
Display Touch screen 10-Point capacitive touch Panel 25,7 cm ( 10,1 inch )LCD panel Resolution 1280*800 Active area 217.4(H)x136.4mm(V) Display mode Normally black ,IPS Viewing angle 85/85/85/85(L/R/U /D) Contrast ratio 800 Luminance 280cd/m2 Aspect Ratio 16:10 Network WiFi 2.4/5GHz 802.11a/b/g/n Ethernet 100M/1000M ethernet Buletooth Bluetooth 4.0 Interface Card slot SD card USB USB Host Micro USB Micro USB OTG USB USB for serial RJ45 with POE RJ45 POE IEEE802.3af/at Power jack DC power input Earphone 3.5mm earphone Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1, RV etc.,support up to 4K Audio format MP3/WMA/AAC etc. Photo jpeg, png, etc. Other VESA 204.5mm NFC NFC with 13.56M frequency)/RFID NXP Desfire Camera 2.0M/P,Front camera Microphone Microphone Speaker 2*1.5W LED Light bar LED light bar with RGB and mixed color Working temp 0--40degree Certificates CE/FCC/RoHS Language Multi-language Accessories Adapter Adapter,12V/1.5A User manual yes Unit (Without packaging) Giftbox (With Packaging) Carton 5pcs/CTN L W H L W H L W H 275.36mm 170.36mm 25mm 390mm 220mm 68mm 405mm 363mm 240mm Net(kg) 0.74KG Net(kg) 2.3KG
Questions & answers
What is the delivery time of ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC/RFID?
The article ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC/RFID is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET MT10RK3288A10PoENFC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC/RFID always at the best possible price. We can give you a discount of 2% on ALLNET meeting room RGB LED tablet 10 inch RK3288 Android 10 and NFC/RFID if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
