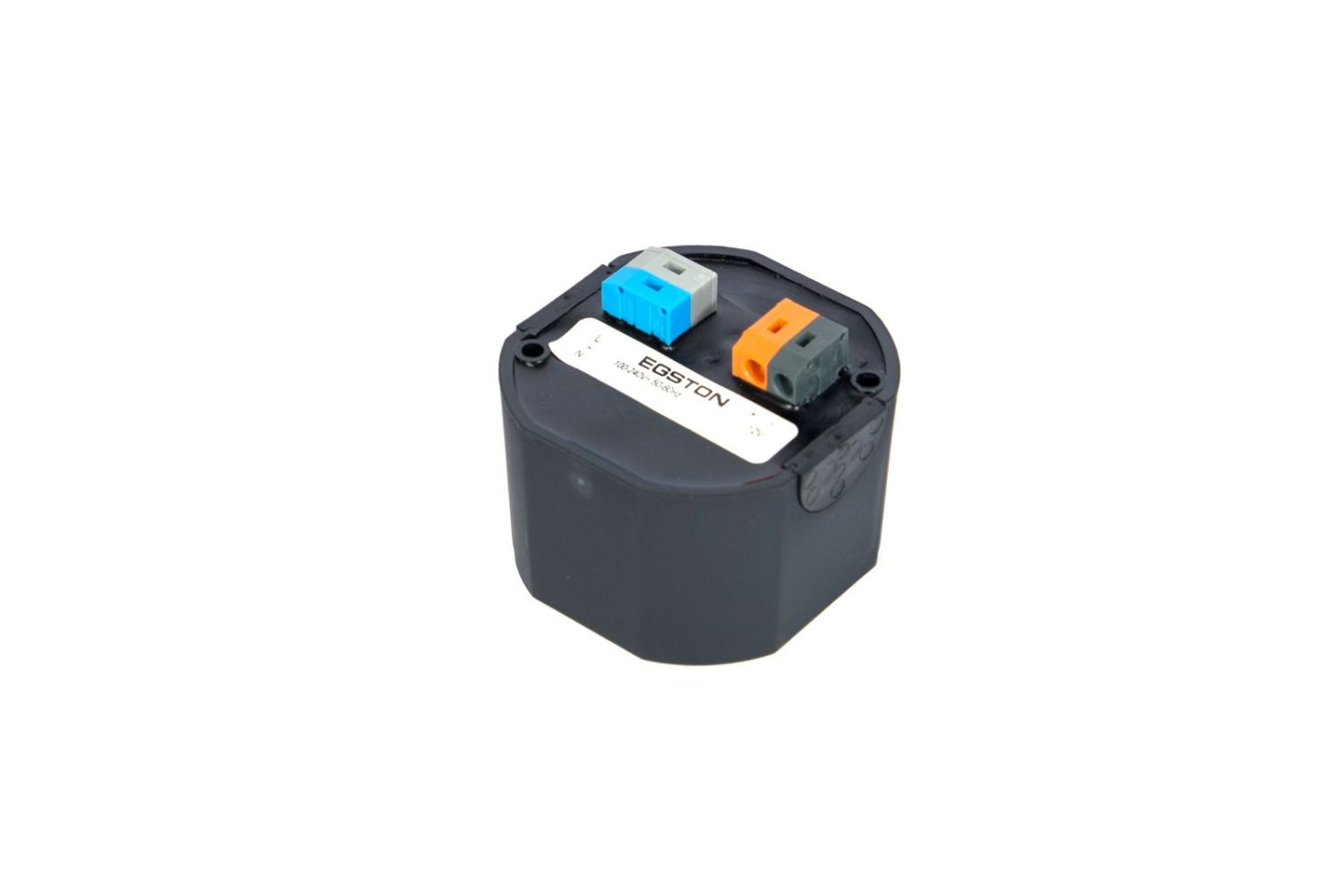

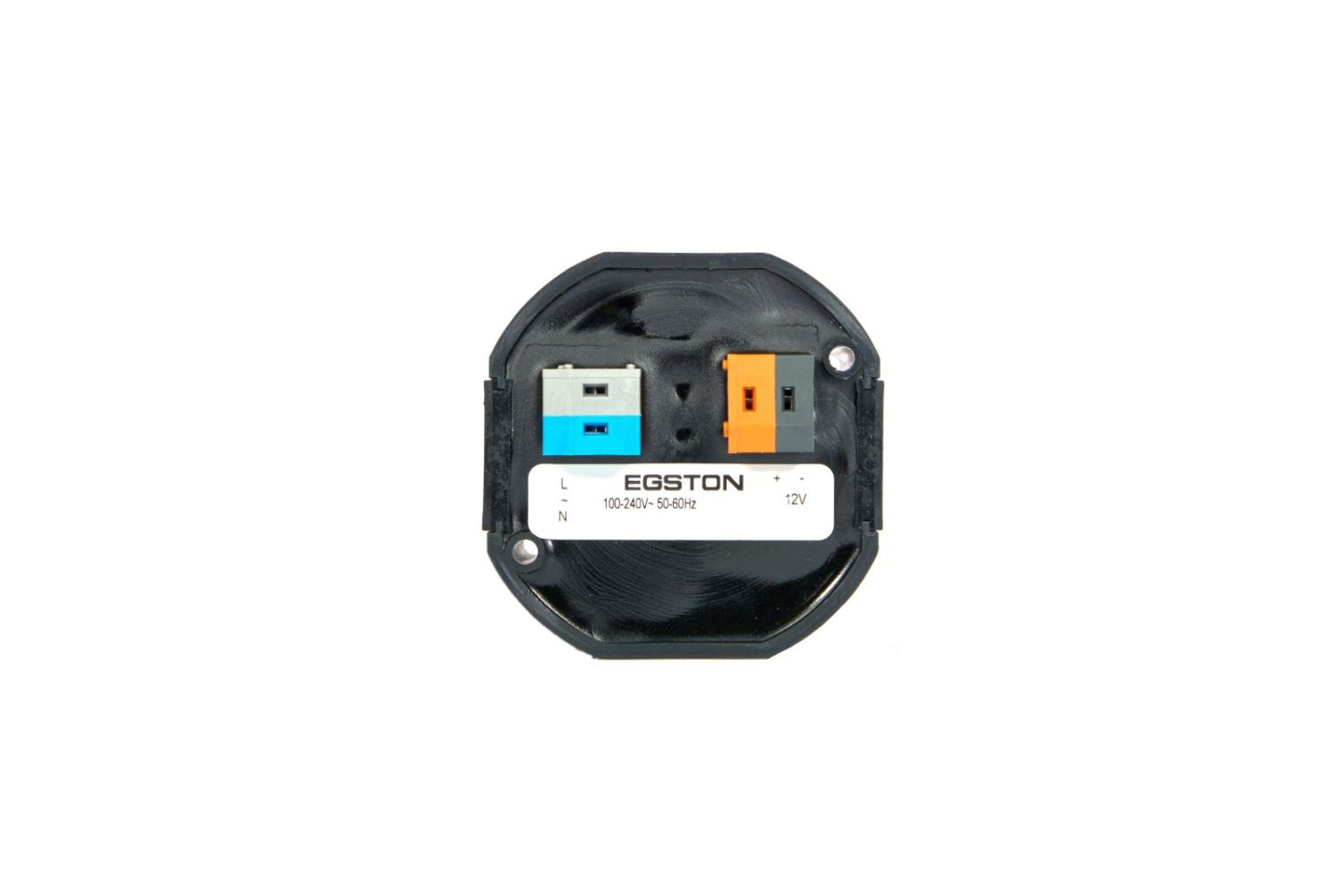

ALLNET replacement power supply 12V/2.5A flush-mounted power supply round standard 76mm Egston
|
33,28 EUR 33,85 EUR |
|
|
( 39,60 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1021425 |
|---|---|
| Mfg Part No: | 003920441 |
| UPC/EAN: | 4038816112132 |
| Weight: | 0.17 kg |
Product information for ALLNET 003920441:
Deep flush-mounted boxes are recommended for installation in a flush-mounted box if it is to be placed behind a switch etc.
The innovative power supply with a wide range input of 90-264 V/AC and stabilized output voltage in the power class 30 W. The devices are suitable for installation in DIN flush-mounted boxes and furniture or for mounting on flat surfaces with unknown flammability. With a height of just 33.5 mm, there is even space for installing the consumer in the flush-mounted box.
Power: 30W / max. 3A
Input: 90-264V AC
Input: stranded wire / double insulated cable / soldering pins / spring-loaded terminals
Output: 12V DC, 24V DC (intermediate voltage on request)
Output cable: stranded wire / soldering pins / spring-loaded terminals
Operating temperature: -20 to 70° C
Efficiency: Efficiency mark Level VI
MTBF: 560,000 h at 25°
Environmental environment: IP68
Applications:
Audio/Video + IT/KT (EN 62368-1)
IT/Commercial (EN 60950-1)
Household / Smart Home (EN 60335-1 )
LED (EN 61347–2-13)
Medical (EN 60601–1 2xMOPP)
The innovative power supply with a wide range input of 90-264 V/AC and stabilized output voltage in the power class 30 W. The devices are suitable for installation in DIN flush-mounted boxes and furniture or for mounting on flat surfaces with unknown flammability. With a height of just 33.5 mm, there is even space for installing the consumer in the flush-mounted box.
Power: 30W / max. 3A
Input: 90-264V AC
Input: stranded wire / double insulated cable / soldering pins / spring-loaded terminals
Output: 12V DC, 24V DC (intermediate voltage on request)
Output cable: stranded wire / soldering pins / spring-loaded terminals
Operating temperature: -20 to 70° C
Efficiency: Efficiency mark Level VI
MTBF: 560,000 h at 25°
Environmental environment: IP68
Applications:
Audio/Video + IT/KT (EN 62368-1)
IT/Commercial (EN 60950-1)
Household / Smart Home (EN 60335-1 )
LED (EN 61347–2-13)
Medical (EN 60601–1 2xMOPP)
Questions & answers
What is the delivery time of ALLNET replacement power supply 12V/2.5A flush-mounted power supply round standard 76mm Egston?
The article ALLNET replacement power supply 12V/2.5A flush-mounted power supply round standard 76mm Egston is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET 003920441 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET replacement power supply 12V/2.5A flush-mounted power supply round standard 76mm Egston always at the best possible price. We can give you a discount of 2% on ALLNET replacement power supply 12V/2.5A flush-mounted power supply round standard 76mm Egston if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
