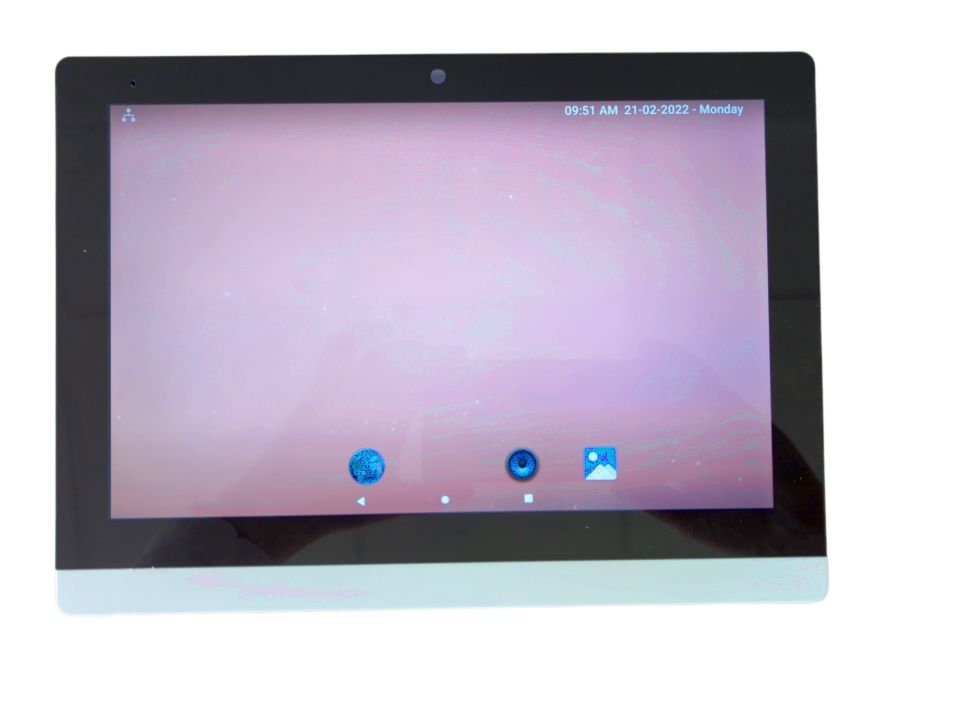

ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN
|
71,88 EUR |
|||||||||||
|
( 85,54 EUR incl. VAT ) ≈ £61.60 | ≈ $81.66 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Lieske Part No.: | 1020778 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ALLDS10RK3288A9 | ||||||||||
| UPC/EAN: | 4038816098467 | ||||||||||
| Weight: | 1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ALLDS10RK3288A9:
The ALLNET DS10 is a special display for integration into telephone systems and door stations. The SIP integration makes it possible to integrate the display as a telephone in a PBX, e.g. Fritz Box, 3CX etc. It is also possible to configure the display as a PBX.
This means you can use it yourself as a telephone system for telephony. Another special feature is the possibility of storing action URLs as buttons. This makes it possible to call the elevator or operate a door opener. 2 built-in relays can also be controlled to implement further switching processes. The built-in SOS function is particularly suitable for older people. It is possible to store several telephone numbers which can be called at the same time.
*Playstore installation via external APP for integration into home automation solutions and flexible use possible, automatic display switch-off and touch to wake function
Update firmware: Download firmware and install it using the update function in the backend.
Technical DetailsFront panel: Plastic RAM / ROM: 4GB / 16GB Display: 10 Inch IPS LCD Screen: 10 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz BLE: Support BLE 4.2 Camera: no camera Memory slot:1 Micro SD slot RS485 port: Support Relays out: 2 Bell in: 1 Microphone: -26dB Speaker: Dual speakers, 4O / 3W Ethernet ports: 1xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Tamper resistant: Support Installation: Wall-mounted Dimension: 251x182.5x29.75mm Working Humidity: 10~90 Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70 °C Touch Screen DisplayDisplay Mode: Normally black, Transmissive LCD Size: 10inch (Diagonal) Aspect Ratio: 16:10 Resolution: 1280x800 Contrast ratio: 900:1 Luminance: 350 cd/m² Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower Touch Screen: Projected capacitive AudioSIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711µ, G.729 Broadband audio codec: G.722 DTMF: In-band , out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Comfort Noise Generator Automatic Gain Control VideoStreaming formats: H.263 NetworkingProtocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP Deployment Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) *Playstore Installation: The installation of the Google Framework takes place via an installation APP. The installation takes a lot of time. The Google Files will update automatically after installation. This can take up to several hours.
This means you can use it yourself as a telephone system for telephony. Another special feature is the possibility of storing action URLs as buttons. This makes it possible to call the elevator or operate a door opener. 2 built-in relays can also be controlled to implement further switching processes. The built-in SOS function is particularly suitable for older people. It is possible to store several telephone numbers which can be called at the same time.
*Playstore installation via external APP for integration into home automation solutions and flexible use possible, automatic display switch-off and touch to wake function
Update firmware: Download firmware and install it using the update function in the backend.
Technical DetailsFront panel: Plastic RAM / ROM: 4GB / 16GB Display: 10 Inch IPS LCD Screen: 10 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz BLE: Support BLE 4.2 Camera: no camera Memory slot:1 Micro SD slot RS485 port: Support Relays out: 2 Bell in: 1 Microphone: -26dB Speaker: Dual speakers, 4O / 3W Ethernet ports: 1xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Tamper resistant: Support Installation: Wall-mounted Dimension: 251x182.5x29.75mm Working Humidity: 10~90 Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70 °C Touch Screen DisplayDisplay Mode: Normally black, Transmissive LCD Size: 10inch (Diagonal) Aspect Ratio: 16:10 Resolution: 1280x800 Contrast ratio: 900:1 Luminance: 350 cd/m² Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower Touch Screen: Projected capacitive AudioSIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711µ, G.729 Broadband audio codec: G.722 DTMF: In-band , out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Comfort Noise Generator Automatic Gain Control VideoStreaming formats: H.263 NetworkingProtocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP Deployment Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) *Playstore Installation: The installation of the Google Framework takes place via an installation APP. The installation takes a lot of time. The Google Files will update automatically after installation. This can take up to several hours.
Questions & answers
What is the delivery time of ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN?
The article ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALLDS10RK3288A9 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN always at the best possible price. We can give you a discount of 2% on ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ALLNET (Akuvox C319) Touch Display Tablet DS10 10 inch PoE with 4GB/16GB, Android, SIP, WLAN we can offer you a price of 71,34 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
