ALLNET antenna 868MHz 7.3dbi antenna (N-Female) Omnidirectional/omnidirectional ANT-868-7.3dbi-OMNI LORA HELIUM IoT
|
-11% 35,40 EUR 39,60 EUR |
|
|
( 42,13 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1890416 |
|---|---|
| Mfg Part No: | ANT-868-7.3dbi-OMNI |
| UPC/EAN: | 4038816207524 |
| Weight: | 0.8 kg |
Product information for ALLNET ANT-868-7.3dbi-OMNI:

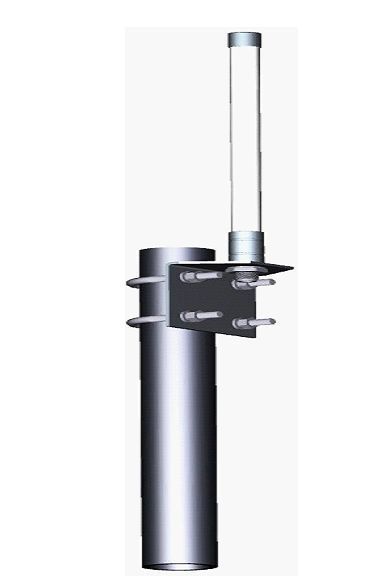

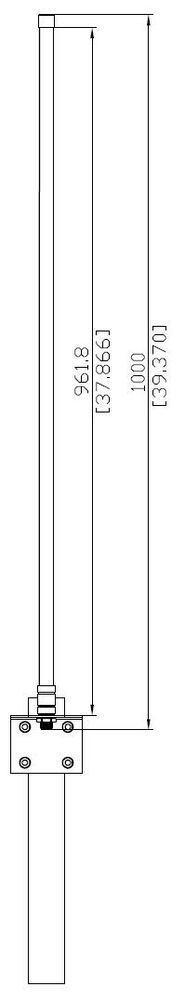

Highlights: 860~880MHz omnidirectional antenna, 4 array Gain: 7.3dbi (see data sheet for more details) Beam angle: H360 V20 Impedance: 50 Ohm VSWR: Model ANT-868-3dbi-OMNI ANT-868-5dbi-OMNI, 2 array ANT-868 -6dbi-OMNI, 3 Array ANT-868-7.3dbi-OMNI, 7 Array Electrical Specification Frequency: 868MHz, 860-880MHz Polarization Vertical Polarized Max Gain 3.5dbi 5dbi 6dbi 7.3dbi H Beamwidth 360deg / omni coverage E Beamwidth 65deg 32deg 26deg 20 deg VSWR typical: 50 ohm Max Power 50watts Mechanical Specification Connector N-Female, Long Neck Radome Fiberglass, Dia 20mm Color White/Grey Total Length with Connector 314mm 600mm 800mm 1000mm Weight incl Mount Kit 0.55kg 0.65kg 0.7kg 0.8kg Working Temperature Range - 45°C to +75°C Max winload 180km/h Storage Temperature -50°C to +75°C Antenna Test Data: 2D Radio Pattern: 3D Radio Pattern: Installation:
Questions & answers
What is the delivery time of ALLNET antenna 868MHz 7.3dbi antenna (N-Female) Omnidirectional/omnidirectional ANT-868-7.3dbi-OMNI LORA HELIUM IoT?
The article ALLNET antenna 868MHz 7.3dbi antenna (N-Female) Omnidirectional/omnidirectional ANT-868-7.3dbi-OMNI LORA HELIUM IoT is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET ANT-868-7.3dbi-OMNI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET antenna 868MHz 7.3dbi antenna (N-Female) Omnidirectional/omnidirectional ANT-868-7.3dbi-OMNI LORA HELIUM IoT always at the best possible price. We can give you a discount of 2% on ALLNET antenna 868MHz 7.3dbi antenna (N-Female) Omnidirectional/omnidirectional ANT-868-7.3dbi-OMNI LORA HELIUM IoT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
