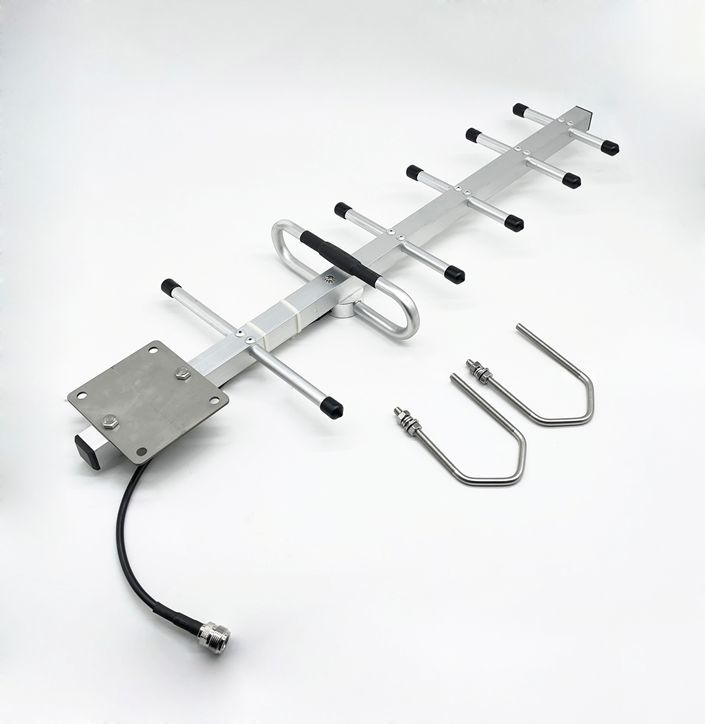

ALLNET antenna 868MHz 14dbi antenna (N-Female) YAGI ANT-868-14dbi-Yagi LoRA HELIUM IoT
|
75,05 EUR |
|||||||||||
|
( 89,31 EUR incl. VAT ) ≈ £64.32 | ≈ $85.26 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 1929122 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ANT-868-14dbi-Yagi | ||||||||||
| UPC/EAN: | 4038816208828 | ||||||||||
| Weight: | 1.4 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ANT-868-14dbi-Yagi:

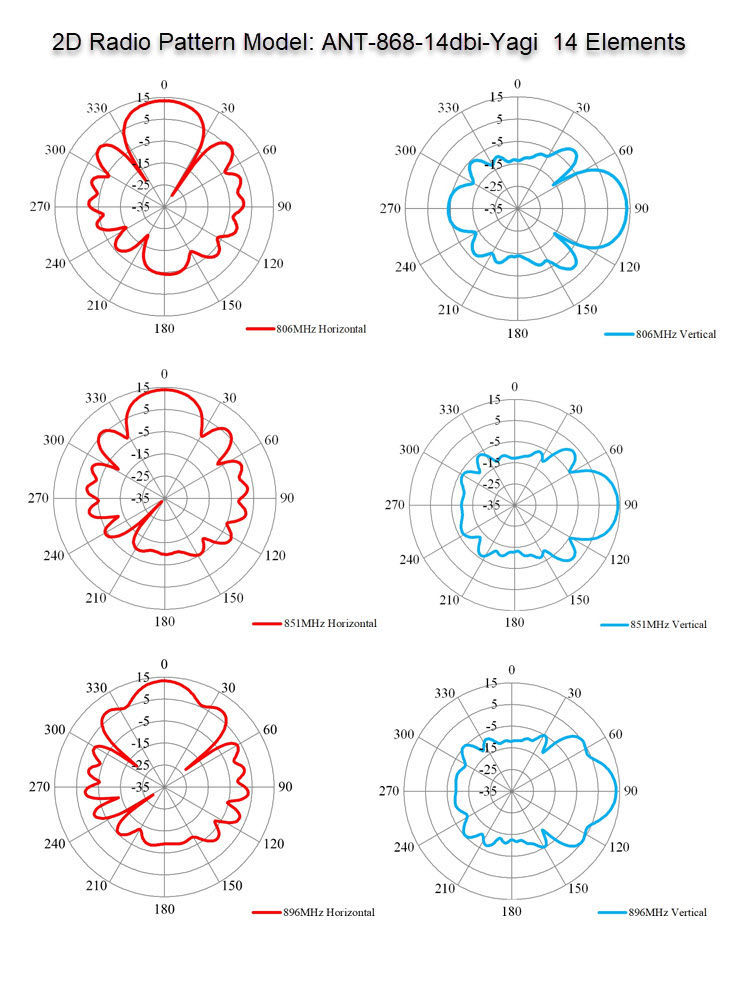

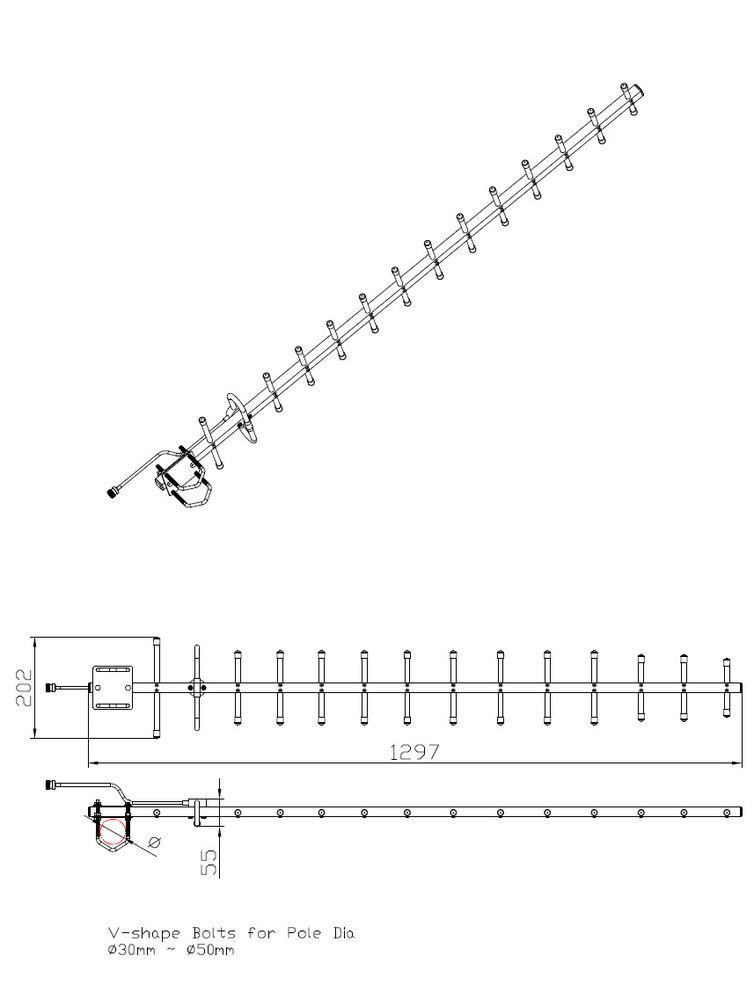

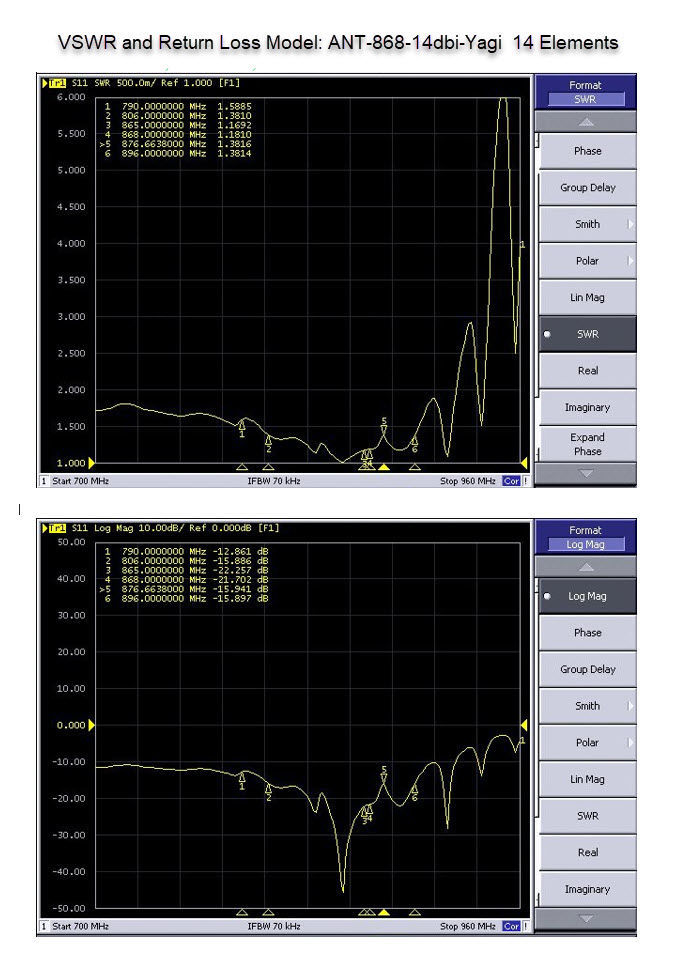

Highlights: 860~896MHz Yagi antenna 14 elements Gain: 14dbi (see table for more details) Beam angle: 33°/30° (see table for more details) Impedance: 50 Ohm VSWR: Model ANT-868-10dbi-Yagi ANT-868-12.5 dbi-Yagi ANT-868-14dbi-Yagi Electrical Specification WideBand: 806-896MHz Polarization Vertical Polarized / Horizontal Polarized Max Gain 10dbi 12.5dbi 14dbi H Beamwidth (-3dB, V-Pol) 73° ± 7° 42° ± 5° 33 ° ± 5° E Beamwidth 55° ± 5° 39° ± 3° 30° ± 5° VSWR 50 ohm F/B Ratio >15dB >17dB >20dB Max Power 100watts Mechanical Specification Connector N-Female Radome Fiberglass, Dia 20mm Color White /Grey Dimension 582 * 202 * 55mm 941 * 202 * 55mm 1297 * 202 * 55mm Weight incl Mount Kit 0.7kg 0.9kg 1.2kg Max windload 200km/h, 125mph Working Temperature Range -45°C to +75°C Storage Temperature - 50°C to +75°C Antenna Test Data: Mechanical Dimmension:
