ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm
|
10,98 EUR |
|
|
( 13,07 EUR incl. VAT ) ≈ £9.38 | ≈ $12.56 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 872544 |
|---|---|
| Mfg Part No: | ANT-CAB-NM-NM-150 |
| UPC/EAN: | 4038816008930 |
| Weight: | 0.12 kg |
Product information for ALLNET ANT-CAB-NM-NM-150:

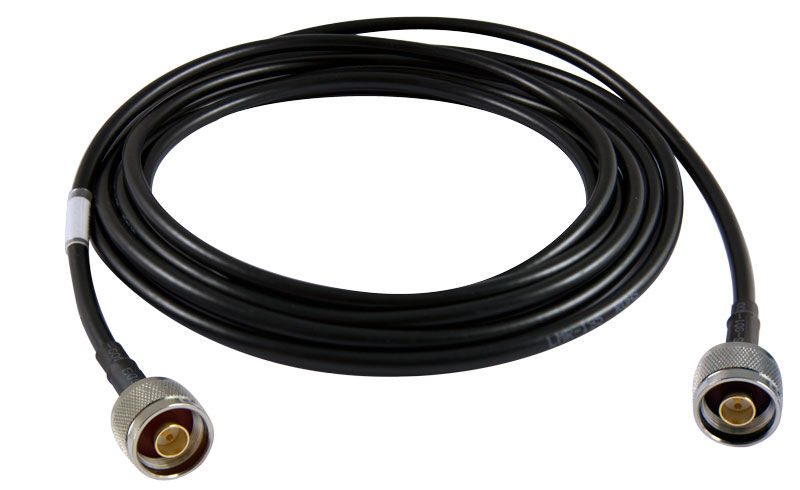

ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm
ANT-CAB-NM-NM-150, N-Type plug <-
Attenuation at 2. 4GHz: approx. 1.15 dB
Attenuation at 5.xGHz: approx. 1.80 dB
Inner conductor: copper strand, bare, diameter: 0.97 mm
Insulation: SPE, diameter: 2.67 mm
Outer conductor: aluminum foil
Cu Braid: tinned, 85% optical coverage
Sheath: PUR, diameter 4.95 mm (+/- 0.2mm), halogen-free
Color: black
Bending radius (without tensile load):
Installation, one-time - 15mm
multiple - 75mm
Temperature range: -40 to + 85 degrees C
ANT-CAB-NM-NM-150, N-Type plug <-
N-Type plug
Length: 150 cmAttenuation at 2. 4GHz: approx. 1.15 dB
Attenuation at 5.xGHz: approx. 1.80 dB
Inner conductor: copper strand, bare, diameter: 0.97 mm
Insulation: SPE, diameter: 2.67 mm
Outer conductor: aluminum foil
Cu Braid: tinned, 85% optical coverage
Sheath: PUR, diameter 4.95 mm (+/- 0.2mm), halogen-free
Color: black
Bending radius (without tensile load):
Installation, one-time - 15mm
multiple - 75mm
Temperature range: -40 to + 85 degrees C
Questions & answers
What is the delivery time of ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm?
The article ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET ANT-CAB-NM-NM-150 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm always at the best possible price. We can give you a discount of 2% on ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of ALLNET antenna cable LMR-195 N-Type(m) N-Type(m) 150 cm via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
