ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT

Your rating:
Average rating
Rating for ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT
( 0 / 5 ) 0 ratings
ALLNET ANT-868-12.5dbi-YagiALLNET ANT-868-12.5dbi-YagiALLNET ANT-868-12.5dbi-YagiALLNET ANT-868-12.5dbi-Yagi

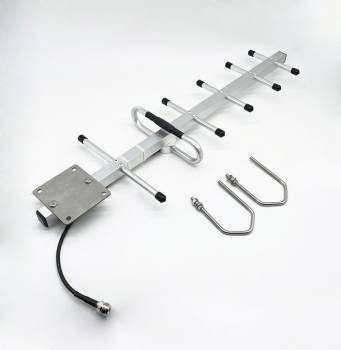

ALLNET ANT-868-12.5dbi-Yagi
This image may differ from the desired article.
-7% 54,28 EUR 58,50 EUR
( 64,59 EUR incl. VAT )
plus delivery charges
2025-09-13Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1929121
Mfg Part No: ANT-868-12.5dbi-Yagi
UPC/EAN: 4038816208613
Weight:1 kg
All products of ALLNET

Product information for ALLNET ANT-868-12.5dbi-Yagi:

Highlights: 860~896MHz Yagi antenna 6 elements Gain: 12.5dbi (see table for more details) Beam angle: 42°/39° (see table for more details) Impedance: 50 Ohm VSWR: Model ANT-868-10dbi-Yagi ANT-868- 12.5dbi-Yagi ANT-868-14dbi-Yagi Electrical Specification WideBand: 806-896MHz Polarization Vertical Polarized / Horizontal Polarized Max Gain 10dbi 12.5dbi 14dbi H Beamwidth (-3dB, V-Pol) 73° ± 7° 42° ± 5° 33° ± 5° E Beamwidth 55° ± 5° 39° ± 3° 30° ± 5° VSWR 50 ohm F/B Ratio >15dB >17dB >20dB Max Power 100watts Mechanical Specification Connector N-Female Radome Fiberglass, Dia 20mm Color White/Grey Dimension 582 * 202 * 55mm 941 * 202 * 55mm 1297 * 202 * 55mm Weight incl Mount Kit 0.7kg 0.9kg 1.2kg Max windload 200km/h, 125mph Working Temperature Range -45°C to +75°C Storage Temperature -50°C to +75°C Antenna Test Data:
Mechanical Dimmension:


Questions & answers

What is the delivery time of ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT?

The article ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET ANT-868-12.5dbi-Yagi to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT always at the best possible price. We can give you a discount of 2% on ALLNET antenna 868MHz 12.5dbi antenna (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
