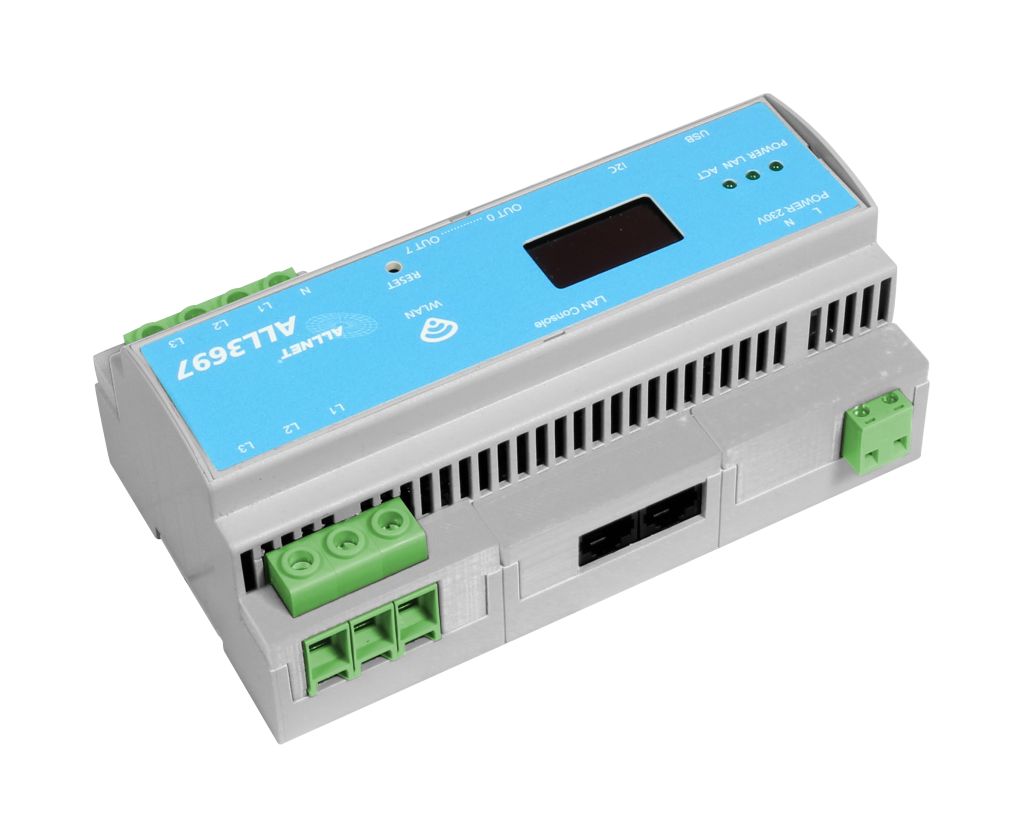

ALLNET MSR power meter central ALL3697-32A 32A 3-phase including S0 (opt.) & induction & 2 sensor ports for IP building automation
|
378,67 EUR 388,64 EUR |
|
|
( 450,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 1180407 |
|---|---|
| Mfg Part No: | ALL3697-32A |
| UPC/EAN: | 4038816109095 |
| Weight: | 1 kg |
Product information for ALLNET ALL3697-32A:
Measuring device for recording and checking your current power consumption. Direct connection of the current phases up to 32A per phase. Current measurement via integrated shunts Can be accessed anywhere independently via the Internet (Internet connection at the location of the ALL3967 is required) Easy to use and install thanks to the web interface Integrated web server Alert via email when a set value is exceeded 1x I2C port for other sensors/actuators from the ALLNET MSR measurements -Control rules series Extensive consumption display with live diagram, chart function, table display, etc. Possibility to download the measured values in database format, e.g. as a CSV file Interfaces: 1x network, 1x USB, 1x I2C, connection of the 3 phases L1/L2/ L3/N features and interface:
The power meter offers you the opportunity to display your consumption graphically. You can display a daily, weekly, monthly or annual graph and show or hide individual phases.
The power meter configuration page offers you the opportunity to set individual values within the device. Example: labels and graph colors.
If you would like to continue using the power meter values or export them for archiving, you can easily download them as a CSV file via the web menu. Of course, there is also the chance to retrieve the values live via JSON.
Technical data: Interfaces: 1x direct phase connection (L1/L2/L3/N) up to 32A
1x I2C port for other sensors/actuators from the ALLNET MSR measurement control rules series
1x USB 2.0
4x TTL outputs
4x open collector outputs
1x Console RS232
1x OLED display
1x LAN 10/100Mbps
1x WIFI 1T1R 150Mpbs Network connection: 1x RJ45 10/100Mbps Power supply: 100~240 VAC, 50/60 Hz, internal power supply Power consumption: Housing: DIN rail housing 12TE subunits Environment: Operating temperature: 0 ~ 40 °C
Operating humidity: 10% ~ 85% (non-condensing)
Storage temperature: -20 ~ 60 °C
Storage humidity: 5% ~ 90% (non-condensing) Dimensions: 160 x 91 x 63 mm ( Length x width x height) Weight: 370 grams (excluding packaging and accessories) Marking: CE, RoHS Packaging contents: 1 piece ALLNET ALL3697 QIG manual
