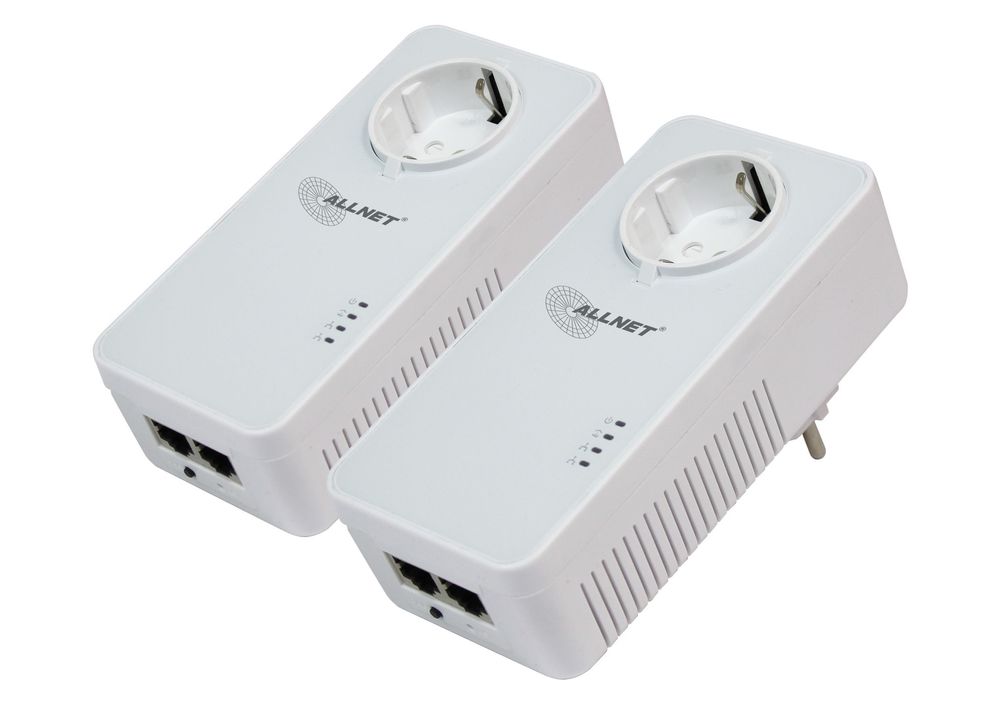

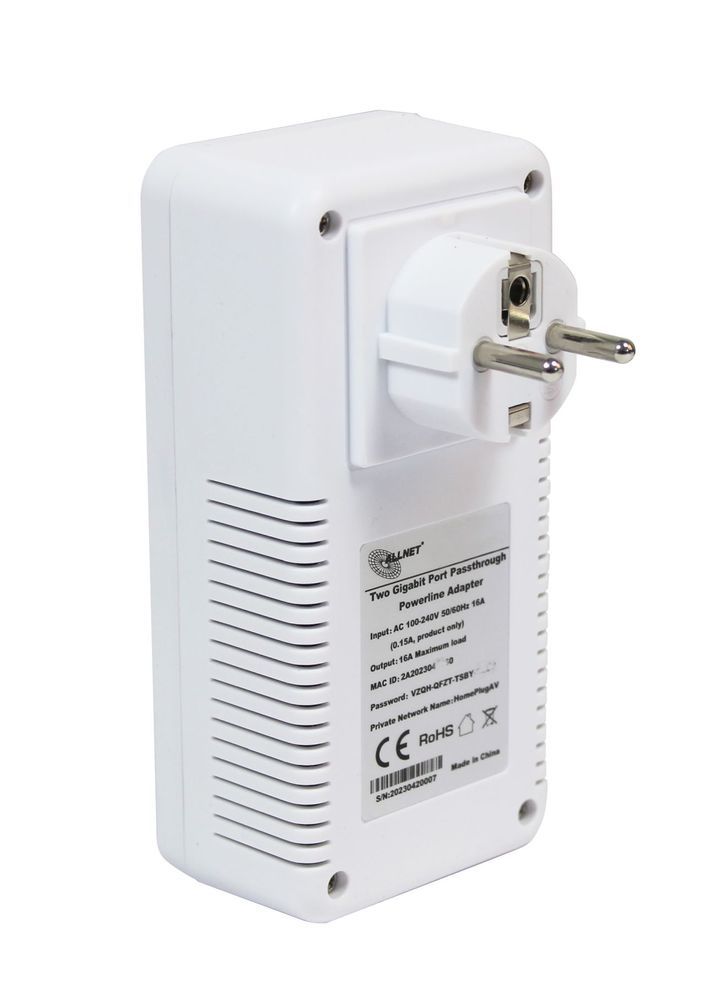

ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2

Your rating:
Average rating
Rating for ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2
( 0 / 5 ) 0 ratings
ALLNET ALL1681205v2DoubleALLNET ALL1681205v2DoubleALLNET ALL1681205v2Double
ALLNET ALL1681205v2Double
This image may differ from the desired article.
87,70 EUR
( 104,36 EUR incl. VAT )
2025-09-12Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2
Lieske Part No.:2113289
Mfg Part No: ALL1681205v2Double
UPC/EAN: 4038816129024
Weight:0.6 kg

Product information for ALLNET ALL1681205v2Double:

Highlights: New HomePlug AV2 standard Up to 1200 Mbps Powerline data transfer rate via Powerline Compatible with other HomePlug AV technologies MIMO support 2 Gigabit Ethernet ports Secure communication and protection of your data with the push of a button Easy installation Notch filter (26.96 - 27.41 MHz) Amateur radio protection With the ALL1681205v2 adapter, the second ALLNET powerline adapter generation according to the HomePlug AV2 standard with Smartlink 1200 Mbps and MIMO support comes onto the market.
The ALLNET ALL1681205v uses the latest Qualcomm Atheros QCA7500 / QCA8334 chipset. It has two Gigabit Ethernet RJ45 interfaces and is compatible with the powerline standards IEEE1901/Homeplug AV and GreenPHY. This enables easy use with existing Powerline devices from other manufacturers. The solution is compliant with IEEE1901, Homeplug AV and Homeplug AV2, enabling easy compatibility with existing Homeplug AV2 devices and other providers of IEEE1901 PLC (Powerline Line Communication) devices.
High data rates and Quality of Service (QoS) enable the use of HD multimedia applications and support high-speed digital multimedia home networks throughout the home, including IPTV services, simultaneous HD video and audio distribution, voice over IP calls, Online gaming, high speed internet, to realize.
The ALL1681205v2 offers a simple Plug Item ALL1681205v2 Interface 2* LAN 10/100/1000Base-TX applied for RJ45 interface LED display lights PWR(power light)
PLC(PLC signal light)
ETH(Ethernet light) Transmission band 2-68MHz protocol HomePlug AV2
IEEE 802.3 IEEE 802.3u 10/100Ethernet Standard security 128-AES Transfer rate(PHY) 1200Mbps modulation OFDM plug EU Type-F Support operating
system Windows 98/ME/NT/2003/7 Windows XP
Home/Pro Mac OSX Linux Power source AC 100V-240V 120/50Hz Operating
environment working temperature:0°C ~ +70°C
working humidity 10%-90% non-condensed state size 145mm×70mm×43mm L×W×H weight 0.30kg marks CE ROHS


Questions & answers

What is the delivery time of ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2?

The article ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET ALL1681205v2Double to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2 always at the best possible price. We can give you a discount of 2% on ALLNET Powerline 1200Mbit 2-Bundle Bridge RJ45 HomePlugV2 SmartLink Passtrough ALL1681205v2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
