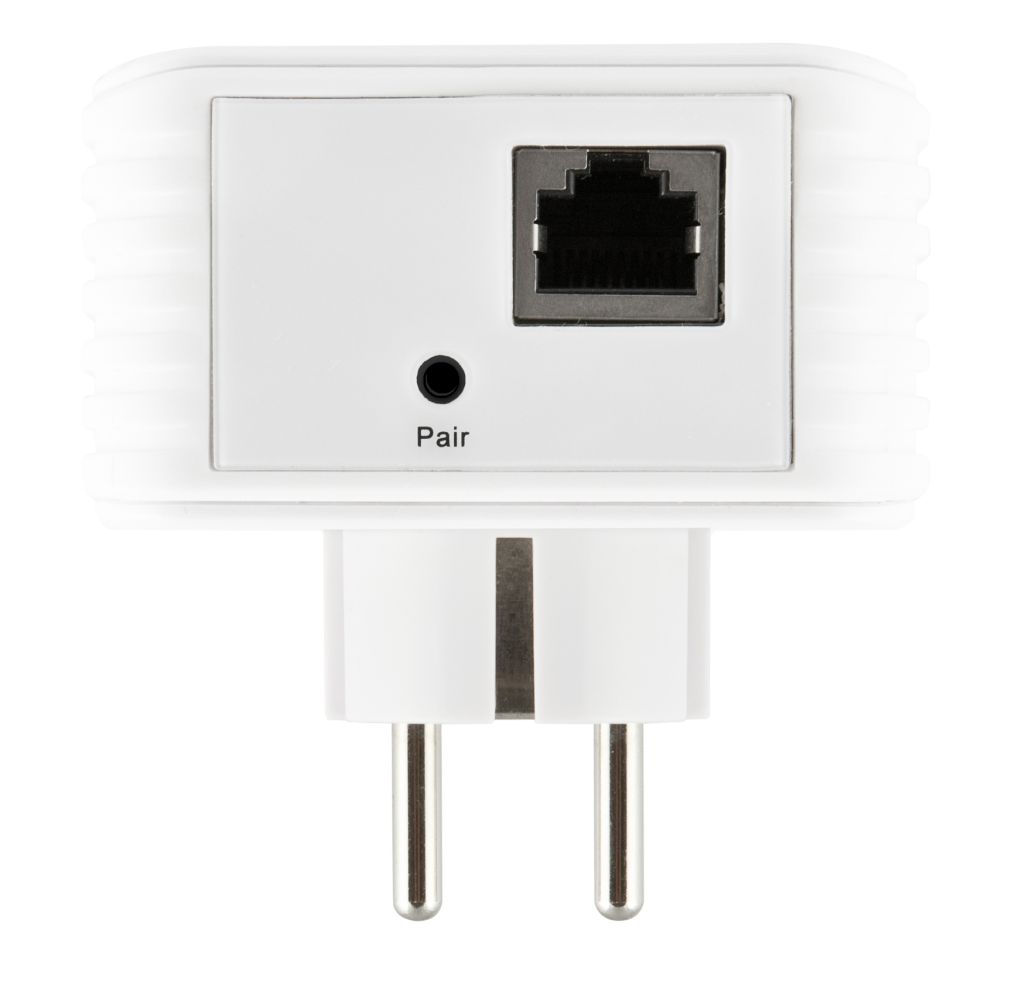

ALLNET ALL1681203 / 1200Mbit HomePlugAV2 PoE IEEE802.3at adapter

ALLNET ALL1681203 / 1200Mbit HomePlugAV2 PoE IEEE802.3at adapter
Highlights:
New HomePlug AV2 standard
Up to 1200 Mbps Powerline data transfer rate via Powerline
Compatible with other HomePlug AV technologies
MIMO support
1 Gigabit Ethernet ports
Secure communication and protection of your data with the push of a button
Easy installation
integrated PoE injector according to IEEE802.3at with max. 30W for IP cameras / PoE lamps / PoE PD switches e.g. ALL-SG8205PD
With the ALL1681203 adapter, the first ALLNET powerline adapter according to HomePlug AV2 standard with Smartlink 1200 Mbps and MIMO support comes onto the market .
The ALLNET ALL1681205 uses the latest Qualcomm Atheros QCA7500 / QCA8334 chipset. It has Gigabit Ethernet RJ45 interfaces and is compatible with the powerline standards IEEE1901/Homeplug AV and GreenPHY. This enables easy use with existing Powerline devices from other manufacturers.
High data rates and Quality of Service (QoS) enable the use of HD multimedia applications and support high-speed digital multimedia home networks throughout the home, including IPTV services, simultaneous HD video and audio distribution, voice over IP calls, Online gaming, high speed internet, to realize.
The ALL1681203 offers simple plug & play networking via a push button, without the need for software configuration. The Network Management Key (NMK) with its 128-bit AES hardware encryption ensures secure, authenticated access to the logical network and protects the network from hackers.
The new HomePlug AV2 standard enables highly efficient data transmission on the power cable with technologies such as Efficient Notching & High Efficiency PHY Protocoll Data Unit (PPDU) Structure.
The ALL1681203 also delivers PoE according to IEEE802.3at with a maximum of 30W power on the Gigabit network connection. This PoE connection allows you to ideally connect an IP telephone / IP camera / PoE information display ALL11557 cm ( 4550 inch ) / PoE clock "ALL-PoE-CLK2,5 cm ( 1 inch ) or PoE counter "ALL-PoE-CNT1 anywhere there is a socket. The maximum cable length on the PoE side can be up to 100m with CAT6.
Technical data:
Element
Specification
Chipset:
Qualcomm QCA7500 + QCA8334
Standards:
• IEEE 1901, IEEE 1905.1 and HomePlug AV Compliant
• HomePlug AV2 Compliant
• AV2 30MHz and 67MHz MIMO profiles
• AV2 30MHz and 67MHz SISO profiles
• Power Save mode
• Co-existence with HomePlug 1.0/Turbo Nodes
• Compliant to ErP 2013 directive
• IEEE 802.3 10/100/1000 Ethernet(1200Mbps)
Gross data rate Powerline:
up to 1200Mbps
Frequency band:
2MHz to 68MHz
Access method Powerline:
Priority-based CSMA/ CA channel access
Quality of Service:Priority-based CSMA/CA channel access schemes maximize efficiency
and throughput
Integrated Quality of Service (QoS) Enhancements
Supports IGMP managed multicast session
Modulation type:
OFDM 4096/1024/256/64/16/8 QAM, QPSK , BPSK, ROBO, and Mini-ROBO modulation scheme
Powerline connection:
Type F protective contact plug (DE), switch mode 85VAC to 265VAC
Network connection:
1x RJ45 10/100/1000Mbit
IGMP:Support IGMP managed multicast sessions
IGMP snooping with multicast to multiple unicast support
IGMP/MLD address filtering
Power over Ethernet:Data PIN's: 1.2 & 3.6
Power: 4.5 & 7.8
Max. 30 PoE IEEE802.3at 48V
Nodes/Clients:
up to 15 devices
Encryption:
128Bit AES encryption with key management
(can be activated via Simple Connect Button)
LED displays:
Power LED
PowerLine Link/ACT Status LED
1x Ethernet Link/ACT Status LED
Power supply:
Type F protective contact socket/plug (DE), Type C/E (FR) , Switch Mode 85VAC to 265VAC
Power consumption:
Operation 32W Watt
Standby max. 3 Watt without PoE
Operating systems for operation:
all TCP/IP operating systems
Operating systems for configuration software:
Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit
Housing:
Plastic housing
Environment:
Operating temperature: 0 ~ 70 °C
Operating humidity: 10% ~ 90% (non-condensing)
Storage temperature: -10 ~ 70 °C
Storage humidity: 10% ~ 95% (non-condensing)
Marking:
CE, ROHS
Dimensions:
115mm x 65mm x 30mm (height x width x depth)
Weight:
300 grams (adapter only)
Packaging contents:
1 piece ALLNET ALL1681203
1 piece RJ45 patch cable 1.8m
1 piece CD-ROM with manual & software
