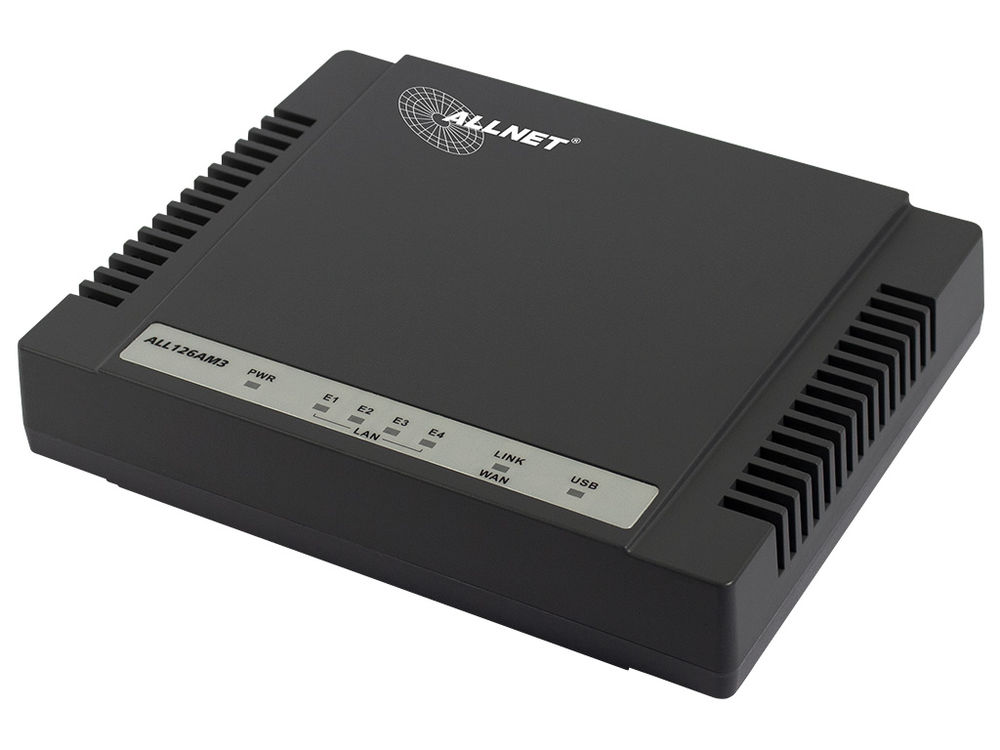

ALLNET point-to-point modem VDSL via 2-wire managed master ALL126AM3

VDSL2 master modem for leased lines over 2-wire connections up to a length of
max. 2200 meters and a bandwidth of 100 Mbit/s (depending on length) HIGHLIGHTS VDSL CO master modem according to VDSL2 standard for high data throughput Integrated 4-port Ethernet 10 /100Mbps Switch Two RJ11 sockets for telephone/line connection Integrated DSL splitter and surge protection Various VDSL bandwidth profiles configurable Configuration via web browser (HTTP/HTTPS) Energy-saving, low power consumption (only approx. 5.5W) VDSL technology from Metanoia up to 100Mbps/ sym. Can be used for a pure point-to-point connection in conjunction with a slave CPE modem, e.g. ALL126AS3 network connection via twisted two-wire telephone cable. Parallel telephony connection for analogue telephones on the same line possible. The ALLNET ALL126AM3 VDSL master modem can be used in conjunction with the ALL126AS3 VDSL slave modem Leased lines can be implemented using a simple 2-wire copper cable with a length of up to 2.5 kilometers.
Bandwidths of up to 100 Mbit/s are possible for short distances.
At the same time, analogue telephones can be connected and operated via the same line. Existing telephone cabling can also be used for high-performance data services. Especially for outdoor buildings / hotels / hospitals, this technology represents the optimal solution for providing high-performance network applications cost-effectively and with minimal effort via 2 twisted pair cables.
Technical Details: Element Specification Chipset: Metanoia VDSL MT-5311
ARM Cortex A9 Standards: IEEE802.3 standard
IEEE802.3u standard
ITU-T G993.2 VDSL2 standard Interfaces: 4x RJ-45 10/100Mbps auto-negotiation RJ-45 Ethernet port
1x RJ-11 port for VDSL2/Line
1x RJ-11 port POTS device
1x USB2.0 Max. Bandwidth: Symmetrical 100 Mbps at max. 300m LED display: Power LED
4x Link/Active Status for Ethernet port
Link LED for VDSL port Switching procedure: Store and forwardIP address QoS: - IPv4/IPv6

• 8 queue
• MFC / DSCP
• 802.1P VLAN priority management and features - POTS splitter on board for analog telephones
• Band plans selectable
• supports web management (HTTP/HTTPS)
• supports USB 2.0 for dongles
• supports G.998.4 G.INP
• supports surge protection for VDSL input
• supports SSL/SSH security
• supports IPV4/IPV6 addresses
• supports dual firmware image backup
• supports VLAN tag pass trough Power consumption: 5.52W Environment: Operating temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage temperature: -20°C ~ 70°C (-4°F ~ 150 °F) Humidity: 10 to 90% (non-condensing) Dimensions/Weight: Width/Height/Depth: 184 x 40 x 146 mm
Weight: 0.385kg (without power supply) Mark: CE Packaging contents: - ALL126AM3 VDSL Master Modem

• Plug-in power supply 12V 1A
• 1 patch cable LAN
• 1 patch cable telephone (Western plug)
