ALLNET point-to-point modem VDSL2 via 2-wire unmanaged ALL-MC116V2 / Max. 3km with max. 160Mbit/s

Highlights: VDSL2 modem can be set as either master or slave Simple 2-wire connection for point-to-point connection Up to 160 Mbit/s symmetrical for up to 3km (cable dependent) 2x RJ45 10/100/1000Mbps Ethernet ports NEW: 1x 1000 Base-X SFP slot for optional SFP modules also available as a practical bundle of 2 Optional DIN rail adapter: Art. 102424 Supports jumbo frames (2K bytes MTU) Selectable G. INP mode Selectable 8-band profile With the ALL-MC116VDSL2 modem the ALLNET is a pure VDSL2 single port bridge on the market that meets the basic requirement of a high-performance point-to-point connection using a 2-wire connection - typically a telephone connection - with all the advantages of a VDSL2 connection. The modem has both RJ11 sockets and terminal sockets for pure wire connections. The additional option of grounding the devices (with the ALL95100 lightning protection) provides the necessary protection against lightning strikes in the area of application. Two gigabit ports connect the modem to the network. The new ALL-MC116VDSL2 now also has an optional Gigabit SFP slot to expand communication with copper or fiber GBIC modules if necessary.

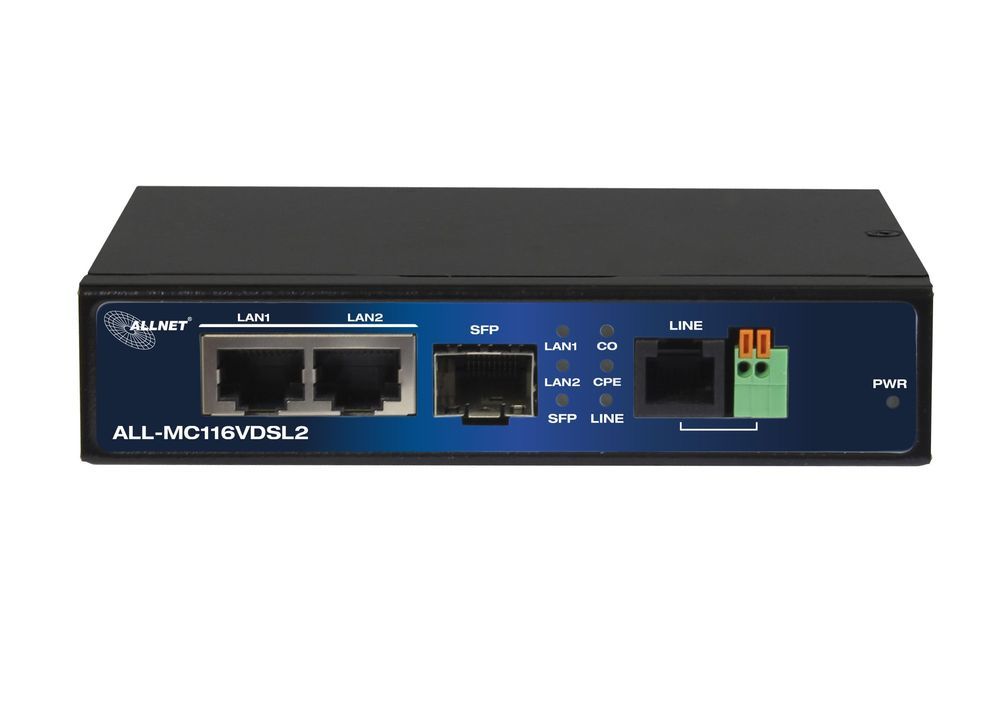

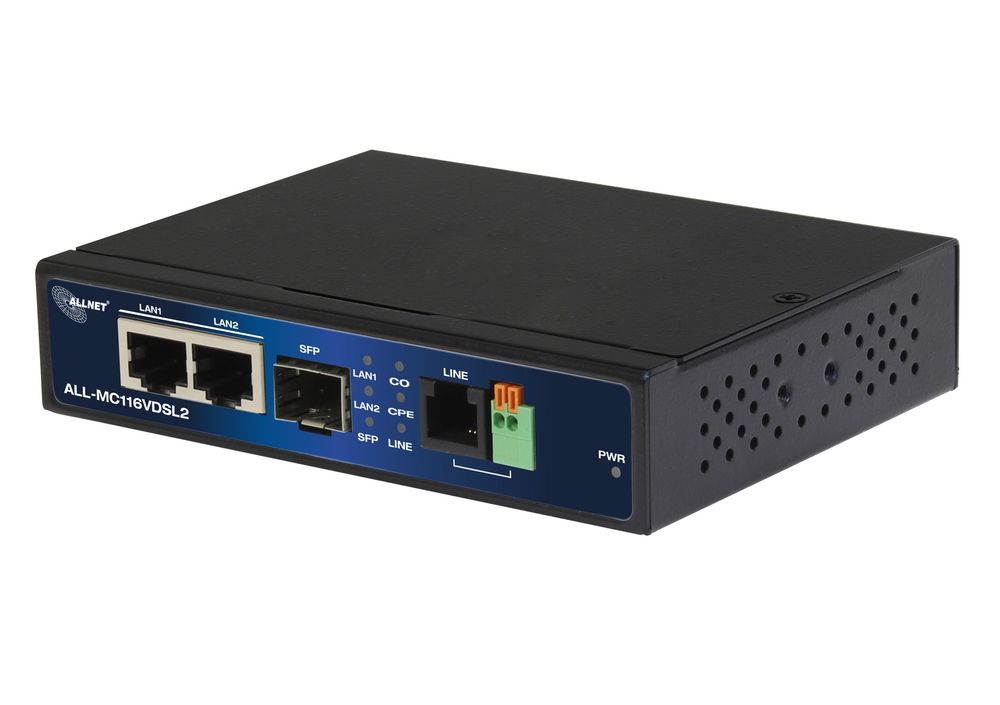

The ALL-MC116VDSL2 can be configured quickly and easily using the DIP switch as either a master or slave modem. There are numerous LEDs on the front of the device for visual signaling of the operating states and connections.Technical Details: Element Specification Standards: IEEE 802.3ab
IEEE802.3u
IEEE 802.3z Interface: 2x 10/100/1000 Base-T RJ45
1x 1000Base-X SFP Slot
VDSL Interface:
Connector: RJ-11/Terminal block DMT Encoding/PTM Transmission On-board surge protector
MTU: 2K

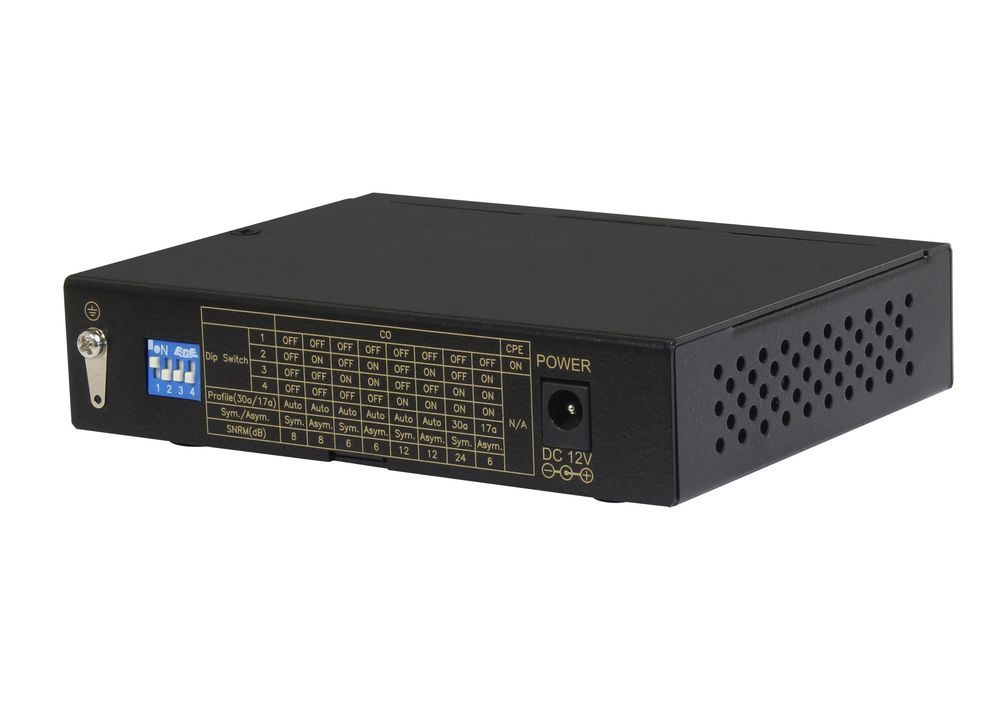

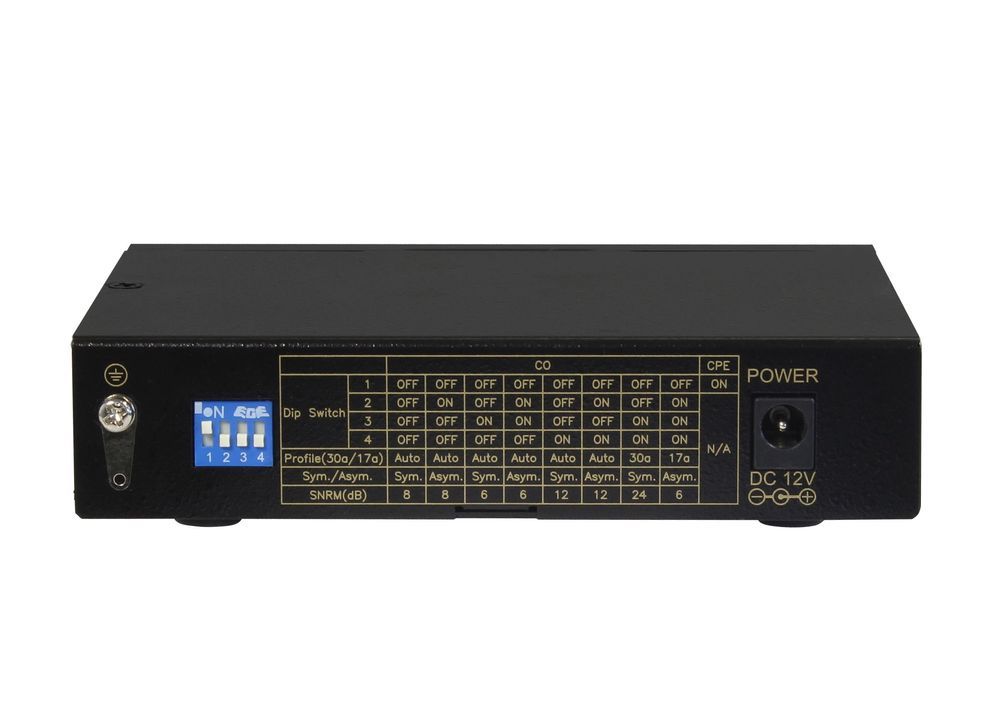

4-position DIP Switch
Selectable CO or CPE mode
Selectable Band profile
Selectable G.INP
Power supply: DC 12V via AC switching adapter (including) Power Consumption: 3W Typical LED indicators:
LAN: Act/Link, PWR: Power
Line: Act/Link, Line Mode: CO/CPE
Housing: Metal housing Dimensions: 124 x 93 x 27 mm (12,4 cm ( 4,9 inch ) x 9,3 cm ( 3,7 inch ) x 2,7 cm ( 1,1 inch ))
Weight:
Approximately 0.34Kg only the device Environment: 0~50° C (Operating Temperature)
-20~70° C (Storage Temperature)
10 - 90% (non-condensing Humidity) Marks: CE, FCC , RoHS Compliant Package contents: 1x ALL-MC116VDLS2 modem
1x external power supply
1x manual
