ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2

This image may differ from the desired article.

-5% 169,86 EUR 179,10 EUR
( 202,13 EUR incl. VAT ) plus delivery charges

2025-12-05Delivery time from supplier's stock (ca.) 6 workdays
In Stock: >500 pieces
1x ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2 202,13 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	2037492
Mfg Part No:	ALL-MC116SPV-VDSL2
UPC/EAN:	4038816114525
Weight:	1 kg

All products of ALLNET

Product information for ALLNET ALL-MC116SPV-VDSL2:

Highlights: Cost-effective VDSL2 Ethernet unmanaged bridge modem Supports VDSL profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a Supports 1000Base-X SFP slot Supports ITU-T G.993.5 vectoring Supports G. INP Supports UPBO Technical Details : Element Specification Standards: IEEE 802.3ab
IEEE802.3u
IEEE 802.3z Interface: 2x 10/100/100Base-T RJ45 with IEEE802.3at PoE port with max. 30W per port = 60W PoE Budget
VDSL2 Interface:
Comply with ITUT G993.2 VECTORING
Connector: RJ-11/Terminal block
DMT Encoding/PTM Transmission
On-board surge protector Power supply: DC 54V AC to DC Medial compliant IEC/EN/UL60601-1 1x MOPP switching adapter (including) Power Output: 60W Maximum (each LAN port 30W) LED indicators: AN:Act/Link, PoE, Overload
VDSL2: Act/Link, Line Mode: CO/CPE Housing: Metal housing Dimensions: 137 x 100 x 27 mm (13,7 cm ( 5,4 inch ) x 10 cm ( 3,9 inch ) x 2,7 cm ( 1,1 inch ) )
Weight:
Approximately 0.42Kg only the device Environment: 0~50° C (Operating Temperature)
-20~70° C (Storage Temperature)
10 - 90% (non-condensing Humidity) Marks: CE, FCC, RoHS Compliant Package contents : 1x ALL-MC116SPVDLS2 modem
1x external medial compliant IEC/EN/UL60601-1 1x MOPP power supply
1x manual

Questions & answers

What is the delivery time of ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2?

The article ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET ALL-MC116SPV-VDSL2 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2 always at the best possible price. We can give you a discount of 2% on ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem & 2x PoE IEEE802.3at Ports unmanaged "ALL-MC116SPV-VDSL2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

This product is recommended as accessory for

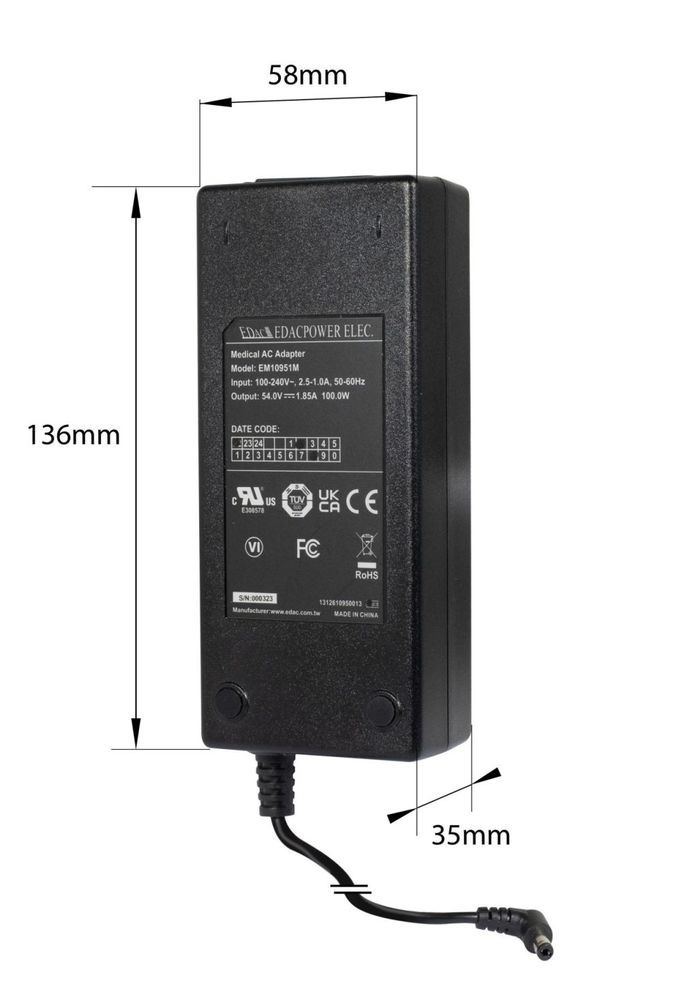

ALLNET replacement power supply 54V/1.85A Medical 5.5mm x 2.1mm Incl. power cable for cold appliance cable
