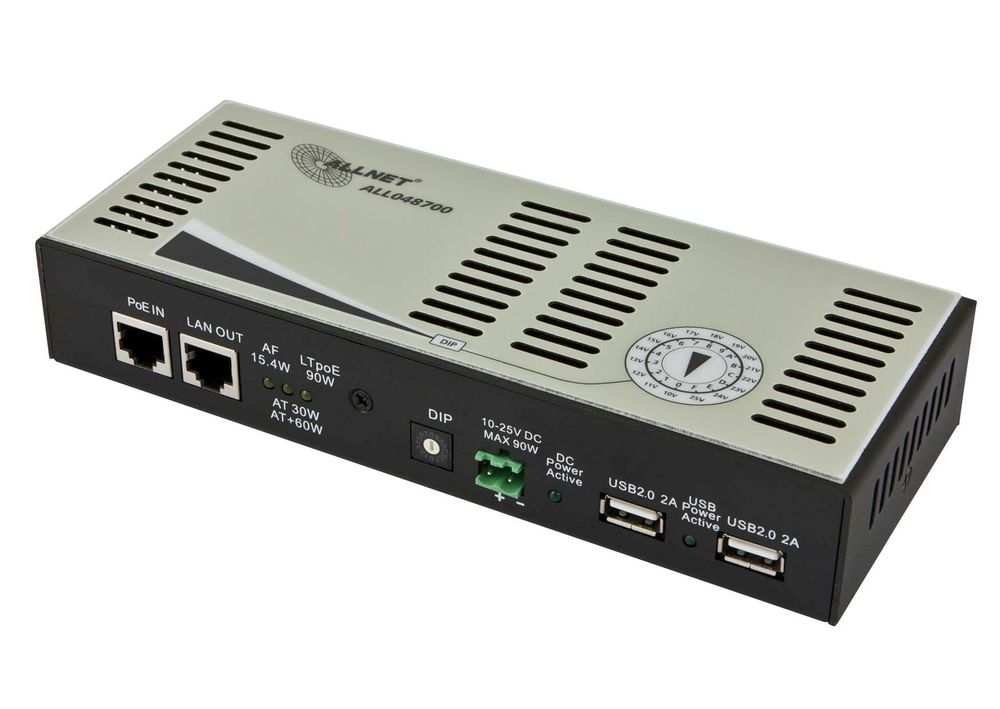

ALLNET ALL048700 / Splitter HPoE 90W 10-25V 2x USB 2.0 10W

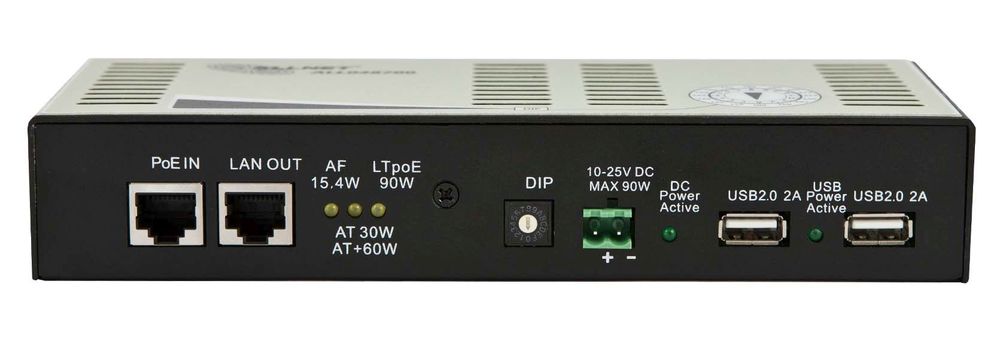

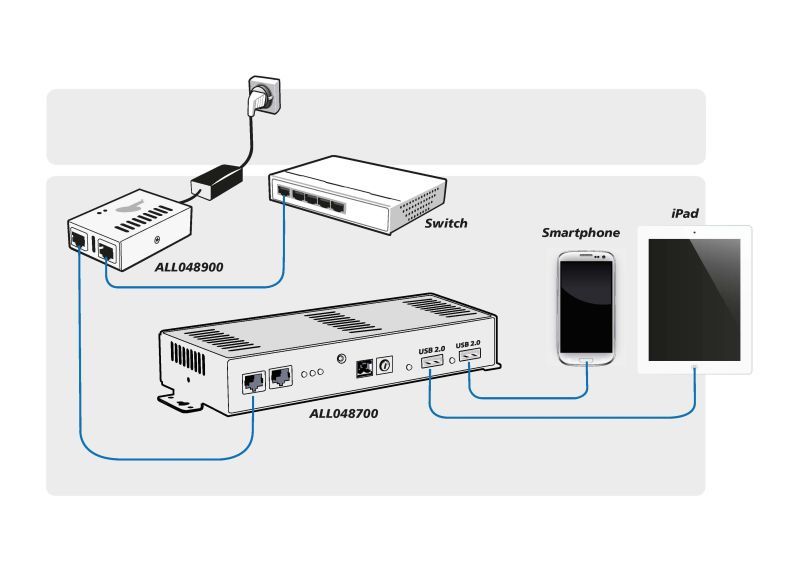

Highlights:. IEEE802.3af / at Standardbis to 90W output AusgangsleistungDC 10-25V2x USB output 5V / 2APower over Ethernet, even if it does not support your device & nbsp, The Power Over Ethernet Splitter allows them their network devices such as Access Points , LAN cameras or switches / hubs that are not PoE-capable trotzem via CAT6 cable as the power supply wherever she splits the devices benötigen.Der ALL048700 before the device coming from the network cable voltage and the data back to two sockets. Here, a voltage of 10V-25V (in 1V steps) is output via a rotary switch again, thus this Splitter Universal is einzusetzten. The splitter is compatible with IEEE802.3af / at / LT PoE ++ and provides even, depending on the input power up to an output power of 90 watts. Moreover, via the two USB ports such as smartphones and tablets loaded werden.Technische data: & nbsp, Element Specification Supported standards: LT PoE ++ IEEE802.3af Power over Ethernet Power over EthernetIEEE802.3at enhancementsIEEE802.3 10BaseTIEEE802.3u 100BaseTXIEEE 802.3ab 1000BaseTAnschlüsse : 1x RJ45 input (data and power) 1x RJ45 output (data only) 1x output (power only) Phönixklemmen2x USB 2.0 5V outputs a max. 2ALED indicators: Power / PoE 2.1A (Max.120W), Standby: typ. 1,8WGehäuse: metal housing, wall-mountable Dimensions: Length / Width / Height: 200 x 80 x 36 mm Weight: 440g (o power supply and packaging.) Environment: Operating temperature: 0 ~ 50 ° CLuftfeuchtigkeit operation: 10% ~ 90% (non-condensing) Storage temperature: -40 ~ 70 ° C Humidity Storage: 5% ~ 90% (non-condensing) Marking: CE
