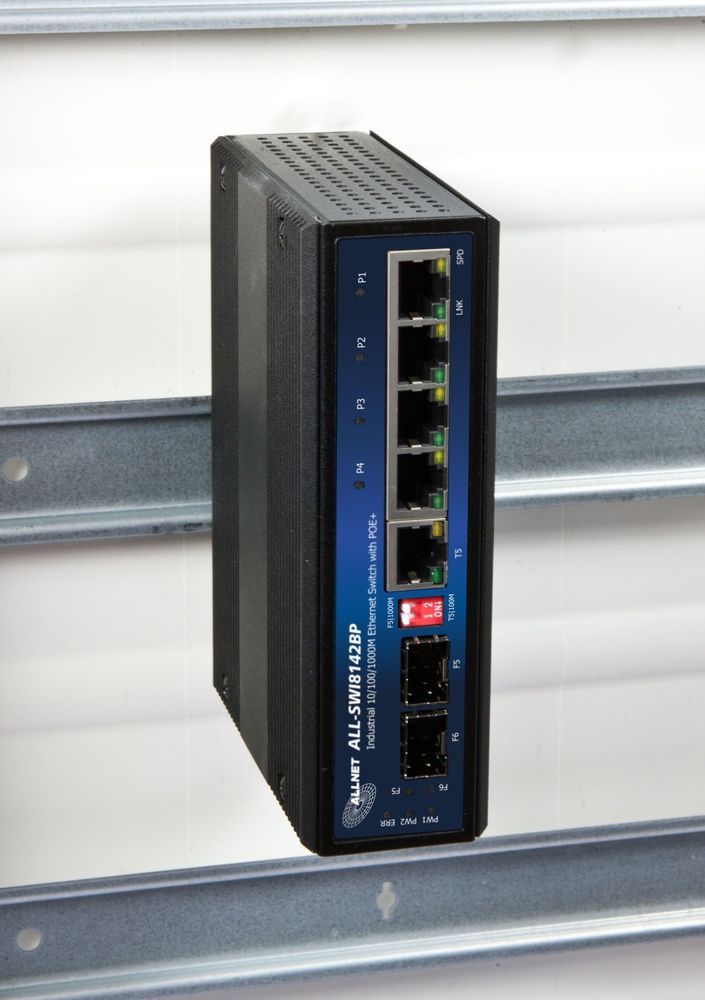

ALLNET ALL-SWI8142BP / 4 Port PoE + 2 SFP Gigabit unmanaged Switch HUT/DIN Power Booster

ALLNET ALL-SWI8142BP / 4 Port PoE + 2 SFP Gigabit unmanaged Switch HUT/DIN Power Booster\dlashHighlights:Performant "Power Booster -- 12V/24V/48V DC power consumption
Robust 6 port industrial Gigabit PoE injector
4x 10/100 /1000M TX PSE (802.3af/at PoE+)
2x 100/1000M SFP slots for MiniGbic modules
Voltage amplifier from 12V/24V/48V DC up to 55V DC
Input voltage range: 12-56V DC
Extended operating temperature: -40°C to +75°C
The 6 Port High Power Industrial PoE+ Switch is a high-performance voltage amplifier developed with our highly efficient ColdDesign technology and can amplify the low input voltage of 12V/24V/48V DC up to 55V DC to meet the requirements of IEEE802.3at standards to meet. ColdDesign technology not only amplifies the input voltage but also reduces excessive heat generation to a minimum. The injector is equipped with two FSP fiber ports to expand the network by connecting additional devices via the redundant fiber optic connections. Thorough testing ensures the functionality of your security, transport and telephony applications, providing you with a reliable partner.
Technical data:
IEEE standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure,
IEEE802.3af for POE
IEEE802 .3at for POE+
Switch Architecture
Back-plane (Switching Fabric): 12Gbps
Data Processing
Store and Forward
Flow Control:
IEEE 802.3x Flow Control and Back Pressure
Jumbo Frame
9KB
MAC address Table Size
1K
Packet Buffer Size
1M
Network Connector :
5xRJ-45 10 /100/1000BaseT(X) auto negotiation,
4 Giga POE+ 802.3at/af 30W PSE per port
Auto MDI/MDI-X function, Full/Half duplex
2 x SFP 100/1000M BaseX
Network Cable
UTP/STP Cat.5e or above Cable
EIA/TIA-568 10-ohm (100m)
Fiber Cable (Multi-mode)?/125um,62.5/125um
Fiber Cable (Single-mode): 9/125um
Protocol
CSMA/CD
LED
PW1(Power 1) Green,
PW2(Power 2) Green,
ERR (Fault) Amber,
TX/RJ-45 port:
LNK (Link/Active) Green,
SPD(Speed) 10/100(OFF) ,1000 (Green)
SFP Fiber Per port:
Link (Green)
Active Flash
DIP Switch
DIP 1: OFF: Port 5 SFP ON (DEFAULT)
ON: Port 5 SFP OFF
DIP 2: OFF: SFP 1000M (DEFAULT)
ON: SFP 100M
Reserve polarity protection
Present
Overload current protection
Present
Power Supply
Redundant Dual DC 12V-56V Power Input
Power Consumption
5.76W@12/24/48 VDC full load, Without POE
Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A @24VDC,
Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected
POE power
POE power per port 30watts. Maximum 36Watts per port at 12/24/48VDC input
Maximum total power 126Watts at 24VDC and 48VDC power input.
Maximum total power 65W at 12VDC power input
Removable Terminal Block
Provide 2 Redundant power, Alarm relay contact ,6 Pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG)?-24/14-22
Stranded wire( AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Operating Temperature
-40° ~ 75° fully tested.
Operating Humidity
5% to 95% (Non-condensing)
Storage Temperature
-40° ~ 85° C
MTBF (mean time between failure)
510,304 hrs ( MIL-HDBK-217F) at 25°C
Housing
Rugged Metal, IP30 Protection
Case Dimension ( L x W x D)
142mmx43mmx105mm (LxWxD)
Installation mounting
DIN Rail mounting and Wall Mounting
Certifications:
EN55022/24
ITE equipment
EN50155
Railways Applications Electronic Equipment used on Rolling Stock
EN55011
Industrial, Scientific and Medical (ISM) equipment
EN50121-3-2
Railway Applications – Electromagnetic Compatibility – Part 3-2 Rolling Stock - Apparatus
EN50121-4
Railway Applications – Electromagnetic Compatibility – Part4 Emissions and Immunity of the Signaling and Telecommunications Apparatus
Safety
IEC EN60950-1
EMC/EMS
CE, FCC, VCCI
EMI
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN 50155 / EN 60068-2-6
Vibration
EN 50155 / EN 60068-2-27
Shock
EN 50155 / EN 60068-2-32
Free Fall
