Allnet ALL-SNB6132BDGrau
48,3 cm ( 19 inch )cabinet, 32HE, B600 / T1000mm, glass door, light gray, SNB series content_copy

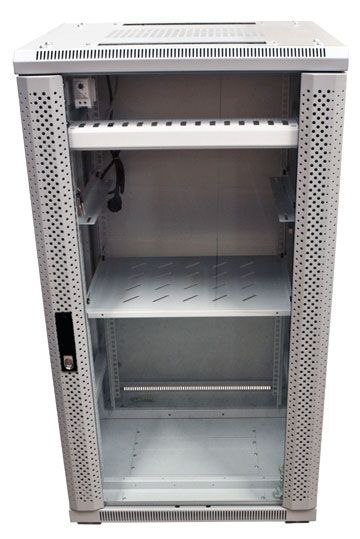

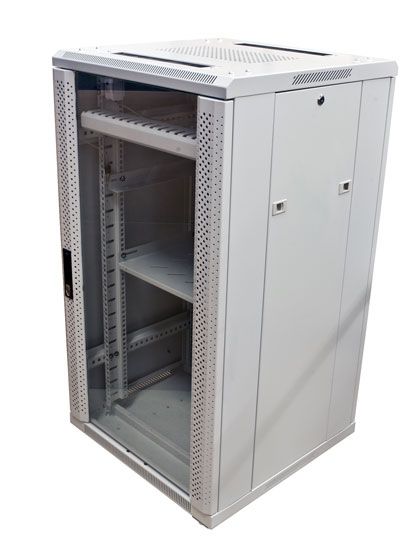

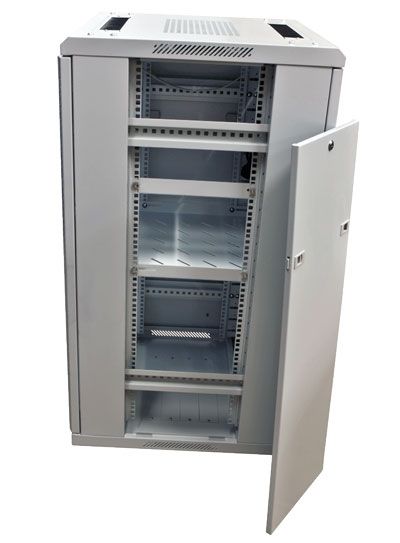

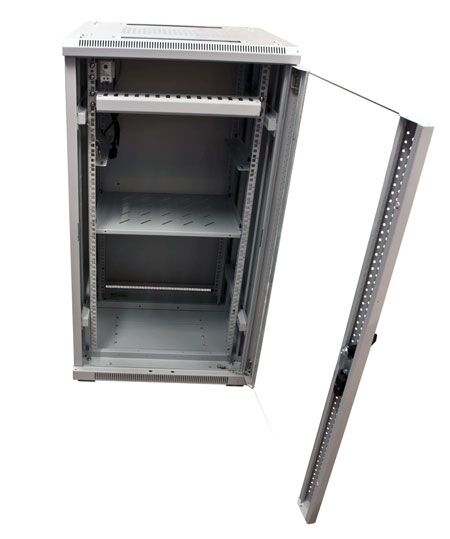

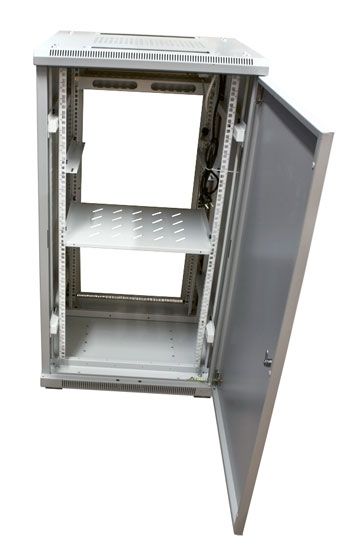

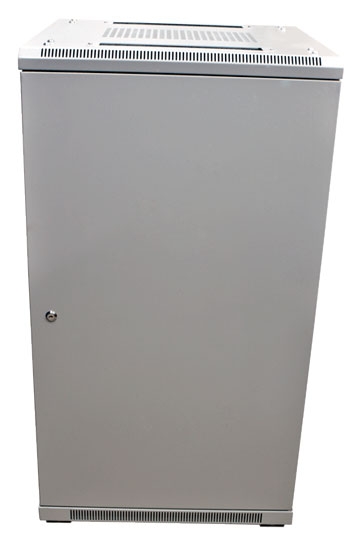

The Allnet server rack ALL-SNB6132BDGrau is a pre-assembled 48,3 cm ( 19 inch ) rack with a usable height of 32 U, designed for use in IT and network infrastructures. It features a width of 600 mm, a depth of 1000 mm, and a total height of 1555 mm. The front door is made of glass and equipped with a lock, as is the rear door made of solid sheet metal. The side panels are removable and also fitted with locks, facilitating access to internal components. The rack is finished in light grey, similar to RAL7035, and offers a usable depth of 850 mm. The front and rear 48,3 cm ( 19 inch ) mounting profiles are marked with height unit indicators, enabling precise installation of devices. The profile spacing at the front and rear is 800 mm and is adjustable in 20 mm increments up to 880 mm to support various device configurations.

Applications

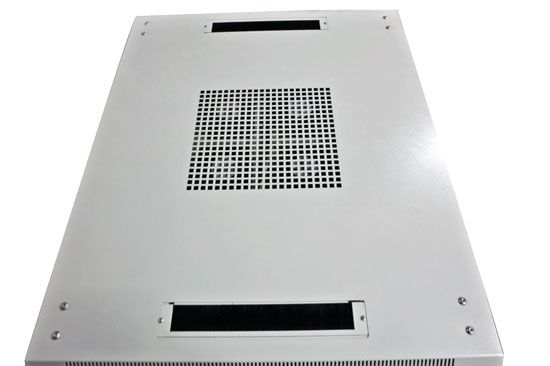

This rack is suitable for use in server rooms, data centres, IT infrastructures, and technical rooms where structured and secure mounting of network and IT equipment is required. Its robust construction and load capacity of up to 500 kg make it suitable for use with heavy equipment. The integrated cable management and brush strips at the cable entries (top front/rear and bottom front, central, rear) support orderly cable routing and prevent cable-related interference. The doors are reversible (left/right), allowing flexible adaptation to the specific installation site.

Functions and Equipment in Detail

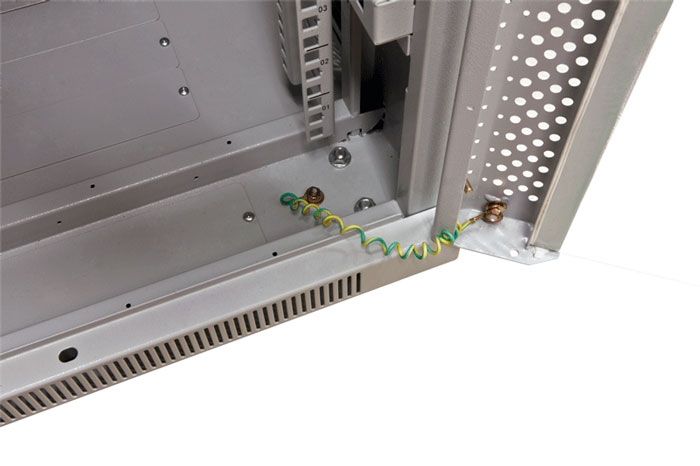

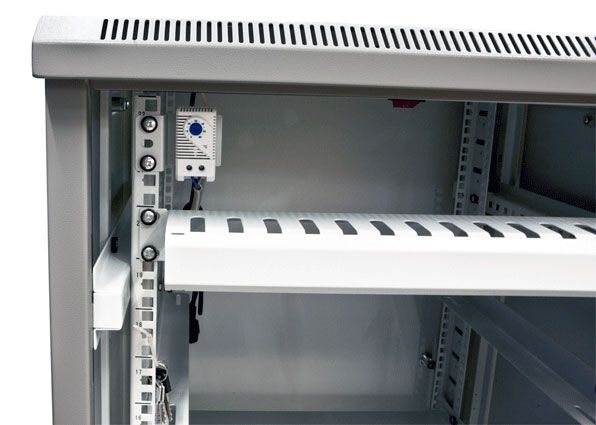

The rack is equipped with four fans, each fitted with a thermostat, ensuring efficient cooling of installed devices. The fans are connected via a 220 V cable. Earthing is achieved via an M6 earthing bolt, with the doors connected via earthing cables to ensure a secure electrical connection. The front and rear 48,3 cm ( 19 inch ) mounting profiles are marked to enable precise device installation. The cable management plate with cover (H44/W482/D68 mm) supports structured cable routing. The rack is fully disassemblable, facilitating transport and installation.

Technology Explained Simply
The 48,3 cm ( 19 inch ) standard is the standard width for IT and network equipment, enabling easy mounting of servers, switches, routers, and other devices. Height units (U) define the vertical positioning of devices – 32 U corresponds to a total height of approximately 1555 mm. The adjustable feet (height 20–70 mm) allow for level positioning of the rack on uneven floors. The integrated cable management with brush strips ensures that cables are not pulled through the doors, protecting them from mechanical damage. The fans with thermostats automatically regulate cooling based on the internal temperature of the rack.

Compatibility and Accessories
Various accessories are available for this rack to extend its functionality. These include blanking plates in different heights (1 U, 2 U), shelf dividers (1 U, 2 U) for compartmentalising the interior, Keystone module carriers for patch panels, power strips (e.g. 8x or 9x outlets, CEE7), cable ties, Velcro tape, L-brackets, and mounting kits with cage nuts and screws. These components allow for individual adaptation of the rack to specific requirements, such as integrating patch panels, power supply, or additional cable management.

Assembly and Installation
The rack is pre-assembled and can be fully disassembled, simplifying transport and installation. The adjustable feet allow for level positioning. The front and rear 48,3 cm ( 19 inch ) mounting profiles are pre-installed and marked to enable precise device installation. The doors are fitted with locks and can be mounted on the left or right. Cable management is achieved via brush strips at the top and bottom entries.

Operational Advantages
The rack offers a high load capacity of up to 500 kg, making it suitable for use with heavy IT and network equipment. The integrated cooling provided by the four fans with thermostats ensures constant internal temperature. The structured cable management and brush strips prevent cable damage and support orderly cabling. The removable side panels and reversible doors increase flexibility during installation and maintenance. The pre-assembled configuration significantly reduces installation time. The rack is delivered without a plinth, and installation without a plinth is recommended.

Protection Rating and Environmental Conditions
The rack is rated IP20, meaning it is protected against access with fingers and against solid foreign objects larger than 12.5 mm. It is not intended for outdoor use or in damp environments. The light grey finish (similar to RAL7035) provides a professional appearance that integrates well in technical rooms. The usable depth of 850 mm provides sufficient space for mounting deeper devices, with a front patch space of 75 mm.

Technical data
19/10"/DIN-rail	19"
Colours	Light grey
Width	600 mm
Door type	Glass door
Height units	32 HE
Cabinet type	Floor-standing cabinet
Depth	1000 mm
Height	1555 mm

---
