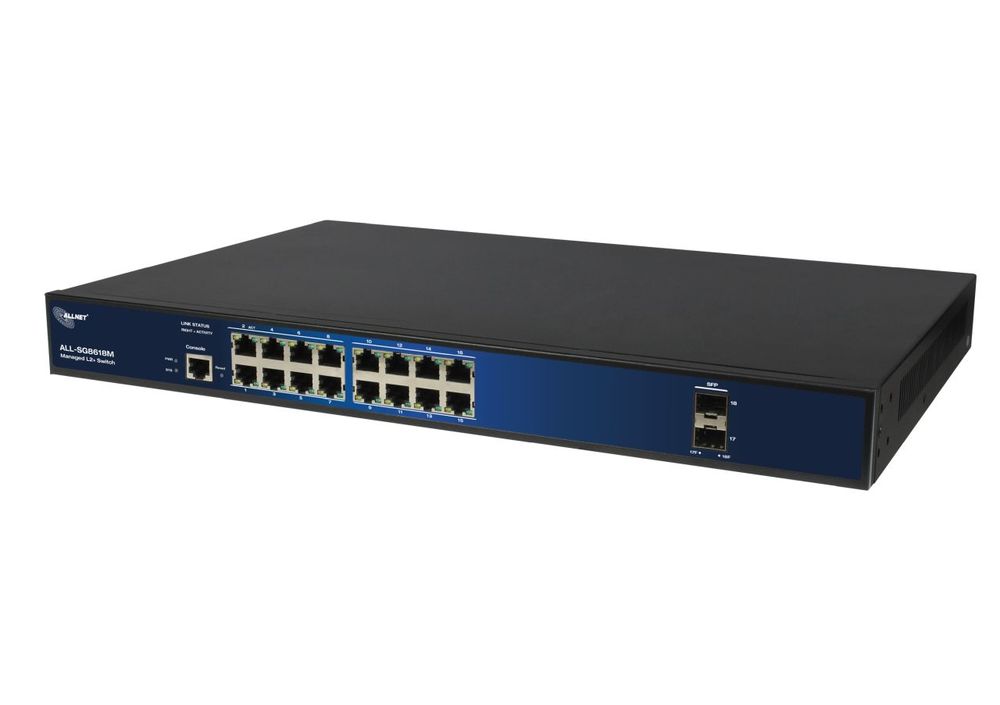

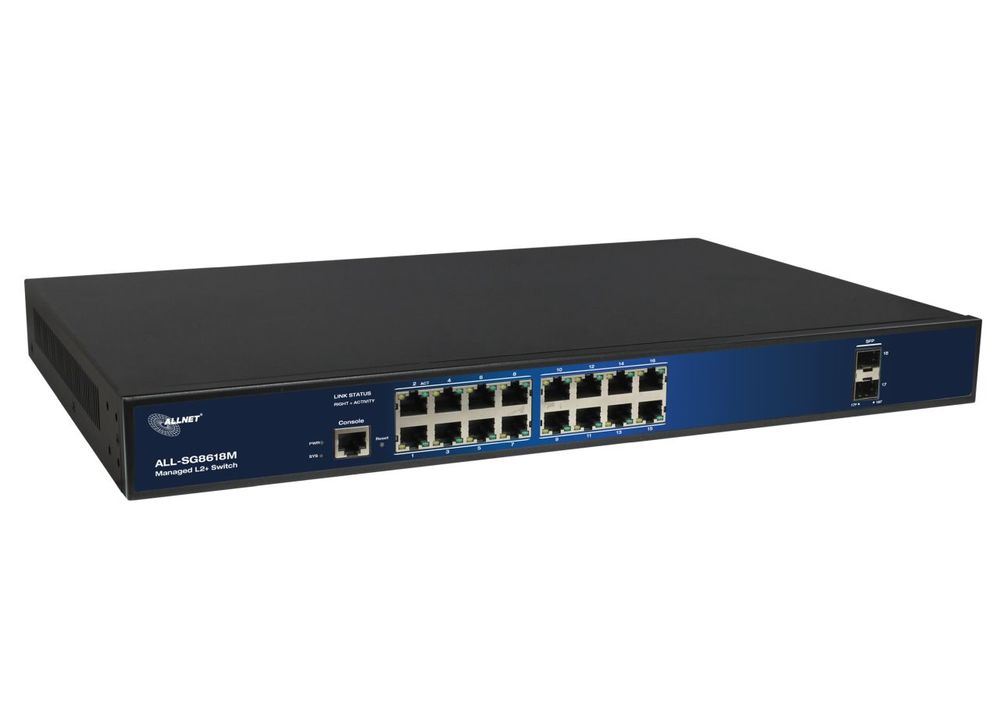

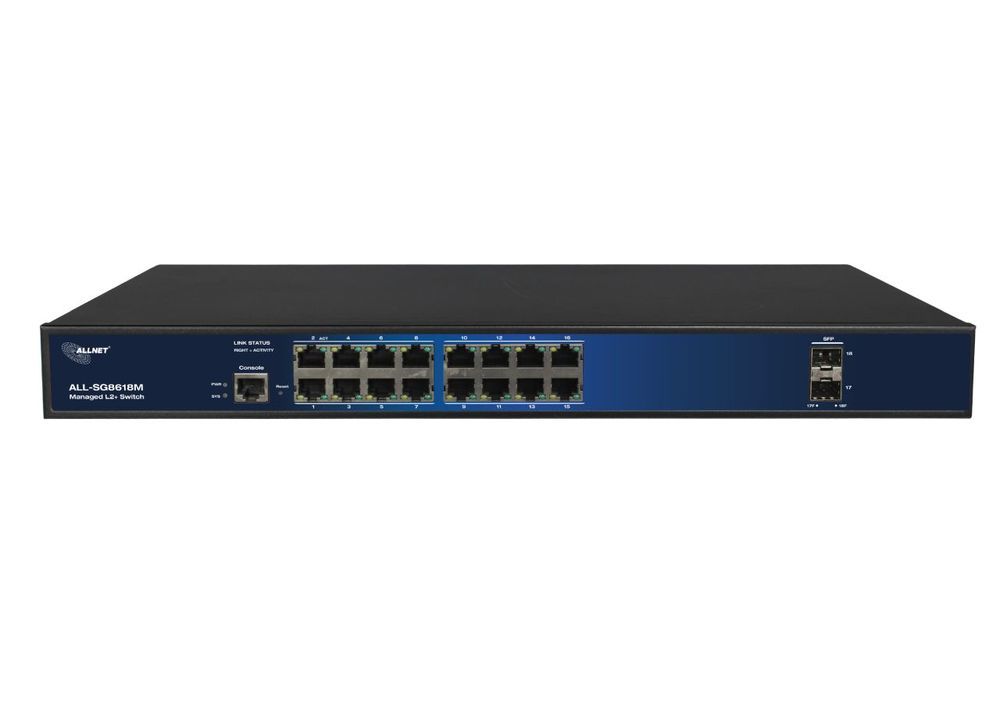

ALLNET Switch fully managed 16 Port Gigabit / 16x LAN / 2x SFP / fanless / 48,3 cm ( 19 inch ) / ALL-SG8618M

Highlights: 6 port Gigabit Layer2+ fully managed switch architecture. upports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection upports back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet) LAN 4K Static / Port-Based / Tagged Based / Protocol / Voice VLAN / 802.1ad Q-in-Q ink Aggregation static link / LACP / Algorithm MAC based or IP based GMP Snooping 256 groups IGMP v1/v2/v3, Fast Leave oS (QoS>QoS multi-label, queue config, QoS mapping) tormcontrol otal fanless, no more annoying noises... 22,9 cm ( 9 inch )inch angle or wall/table mounting possible ALL-SG8618M is a 16* 10/100/1000M RJ45 ports and 2*100/ 1000M SFP fiber slot ports L2+ managed Ethernet fiber switch , built-in 35W power supply. Support 1U/19 inch rack installation.It is programmed for advanced switch management functions such as strong>802.1Q VLAN and strong>Q-in-Q VLAN , ultiple Spanning Tree protocol MSTP), loop nd strong>BPDU guard, GMP snooping, and LD snooping. lso, the strong>Link Layer Discovery Protocol LLDP) s the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. t provides a quick, safe and cost-effective Ethernet network solution for small businesses and enterprises.
Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, ALL-SG8618M is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile they help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.
Robust Layer 2 Features
ALL-SG8618M can be programmed for advanced Ethernet fiber switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. The ALL-SG86xx series allows the operation of a high-speed trunk combining multiple ports.
Powerful Security Functions
ALL-SG8618M provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.
Enhanced Security and Traffic Control
ALL-SG8618M supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
User-friendly Secure Management
For efficient management, ALL-SG8618M is a managed switch, equipped with console, web and SNMP management interfaces. With management interface, ALL-SG8618M offers an easy-to-use, platform independent management and configuration facility. ALL-SG8618M supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile ALL-SG8618M offers Cisco-like command via Telnet or console port and customer doesn't need to learn new command from these switches. Furthermore,ALL-SG8618M offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.
Intelligent SFP DDM Function
ALL-SG8618M support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
ast Recovery /strong>Redundant Ring /strong>for Critical Network Applications
The ALL-SG8618M supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer's industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 20ms.
1588 Time Protocol for Industrial Computing Networks
The LL-SG8618M is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

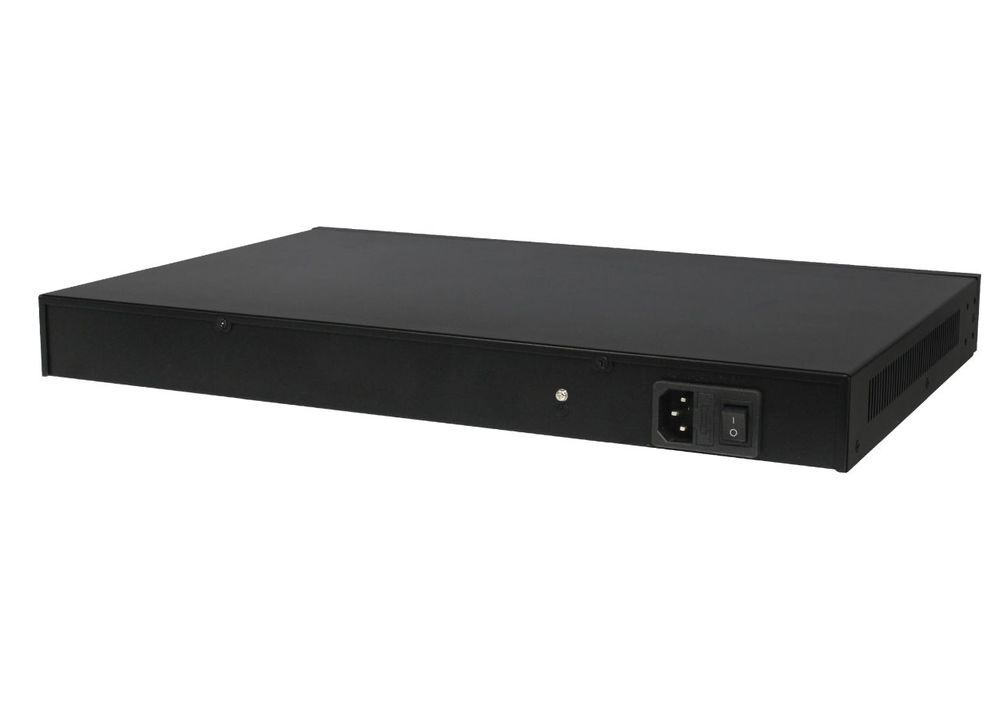

Technical Details: Model ALL-SG8618M Copper Ports 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports Fiber Ports 2-100/1000BASE-X SFP interfaces, supports 00/1000Mbps dual mode Console Ports 1 x RS- 232-to-RJ45 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 36Gbps/non-blocking Throughput 23,819Mpps @64 bytes Address Table 8K entries Share Data Buffer 4.0 b Jumbo Frame 9600 Bytes SDRAM 1Gb Flash Memory 128Mb Flow Control IEEE 802.3x pause frame for full-duplex,Back pressure for half-duplex Reset Button > 2 ec: Factory default nd reset Power Supply 100~240V AC, 50/60Hz, 4A (max.) Power Consumption 12V, 45watts/1122 BTU LED Indicators Power: Green Solid on- power work normal, off- power disconnected
System: reen
Blink-work normally, solid on- soft work abnormal, fast Blink- soft upgrade
10/100/1000T RJ45 Interfaces ( Port 1 to Port 16): 000 LNK/ACT (Green), 10/100 LNK/ACT (yellow)
Blink- port connected with data transmission Solid on- port connected without data transmission
100/1000Mbps SFP Interfaces (Port 17 to Port 18): reen
Blink- port connected with data transmission Solid on- port connected without data transmission EMC Surge Immunity: EC61000-4-5 ESD Protection: ESD IEC61000-4-2: EFT IEC61000-4-4 Dimension 440x240x44.5mm Weight 3.2kg Working Temperature - 10°C to 45°C Storage Temperature -20°C to 70°C MTBF 50,000hrs Layer 2 functions Port configuration Auto-negotiation Flow Control
Port Mirror: TX/RX/BOTH Many-to-1 monitor
CPU Mirror
Traffic statistics Link Aggregation Static link aggregation LACP(Dynamic Trunk/Static Trunk)
Algorith based on Source/Destination MAC
Algorithm based on Source/Destination IP MAC Table Aging Time Static MAC address
Dynamic MAC address management VLAN 4094 ctive VLANs 4094 ID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling
Private VLAN (Protected port)
GARP/GVRP ACL 256ACLs L2, L3 e L4
Time-based ACL
IP ACL
MAC ACL
MAC-IP ACL
User-Defined ACL
ICMPv6 Spanning tree 802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter Ring Protection Static Routing IPv4 Unicast: Static Routing(Software Base) IPv6 Unicast : Static Routing(Software Base) IPV6 IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Telnet(v6)
Http/Https
Interface IPV6
ACL IPV6
