ALLNET Switch unmanaged 5 Port? 5x GbE? PoE Budget 85W? 1x bt out, 3x PoE af/at out, 1xPoE bt 90W in? Fanless, DIN, PD input? ALL-SG8005PD-BT90
|
41,80 EUR |
|||||||||||
|
( 49,74 EUR incl. VAT ) ≈ £35.86 | ≈ $48.45 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Lieske Part No.: | 1156416 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ALL-SG8005PD-BT90 | ||||||||||
| UPC/EAN: | 4038816130648 | ||||||||||
| Weight: | 0.1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ALL-SG8005PD-BT90:

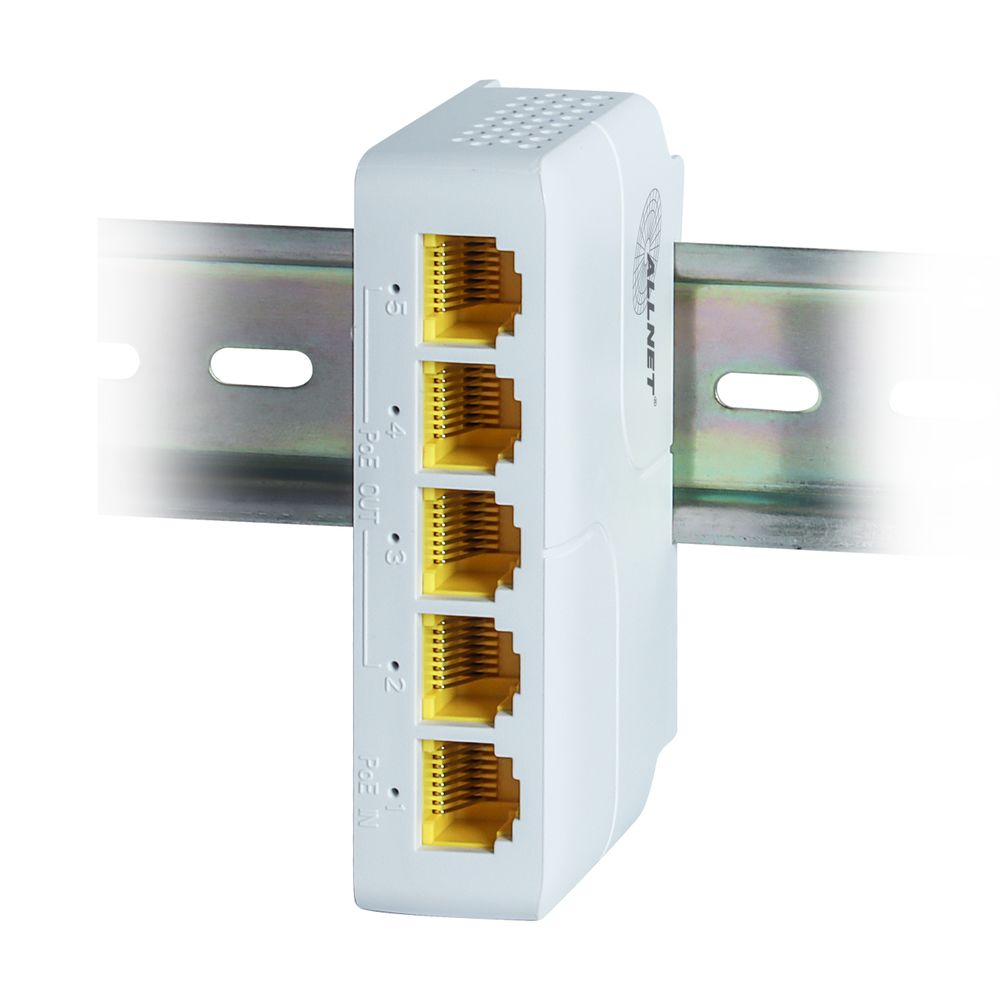

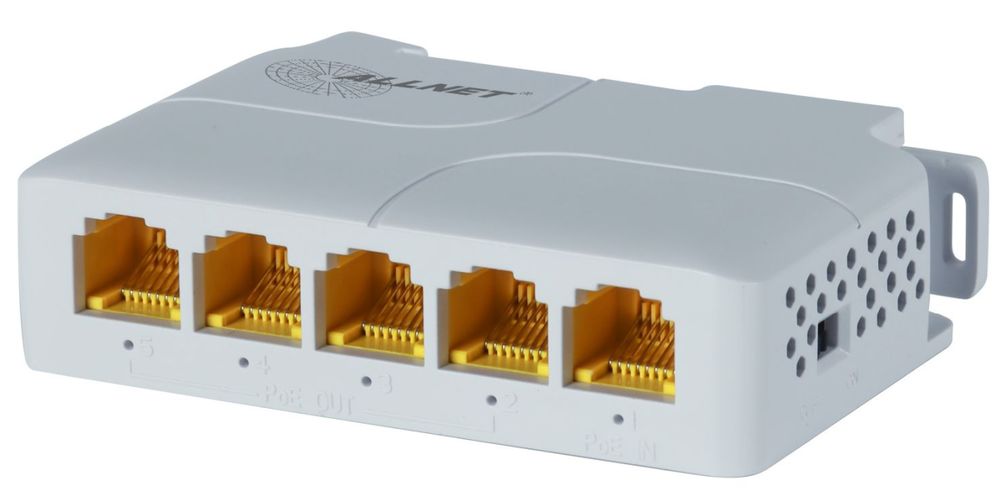

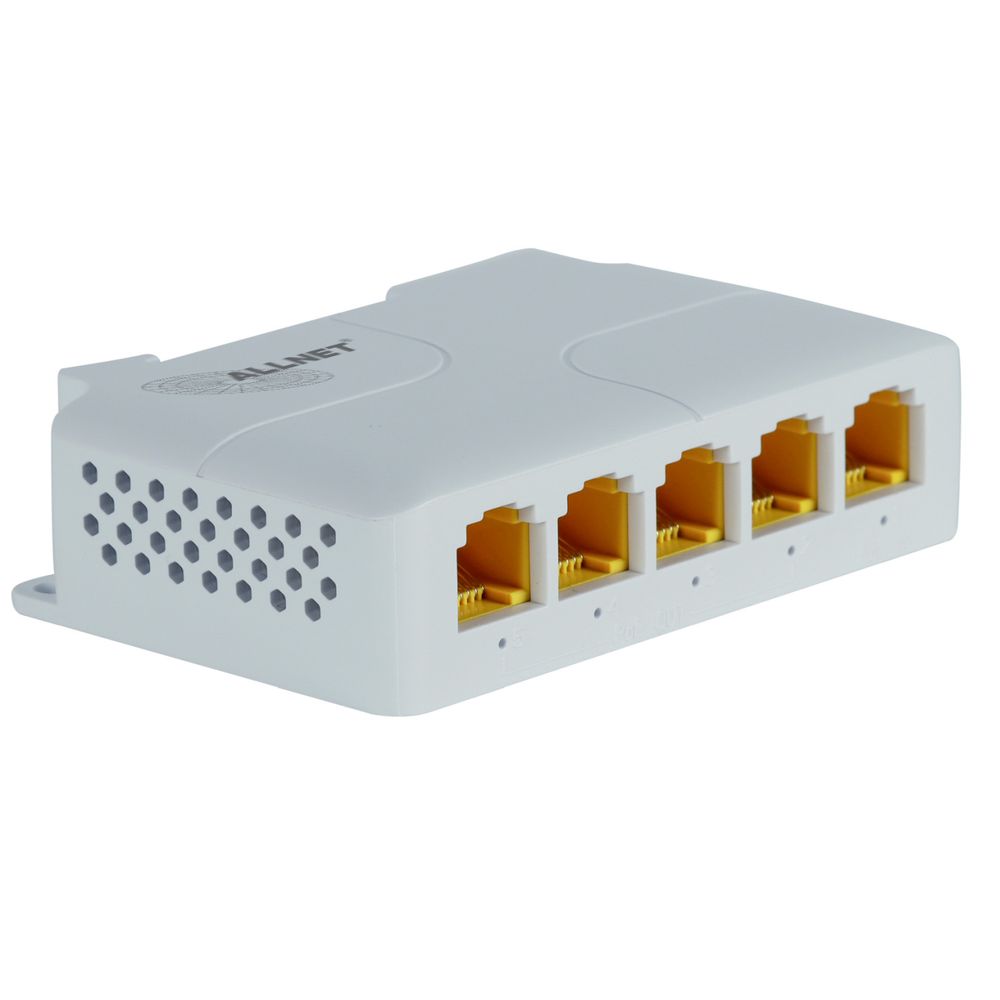

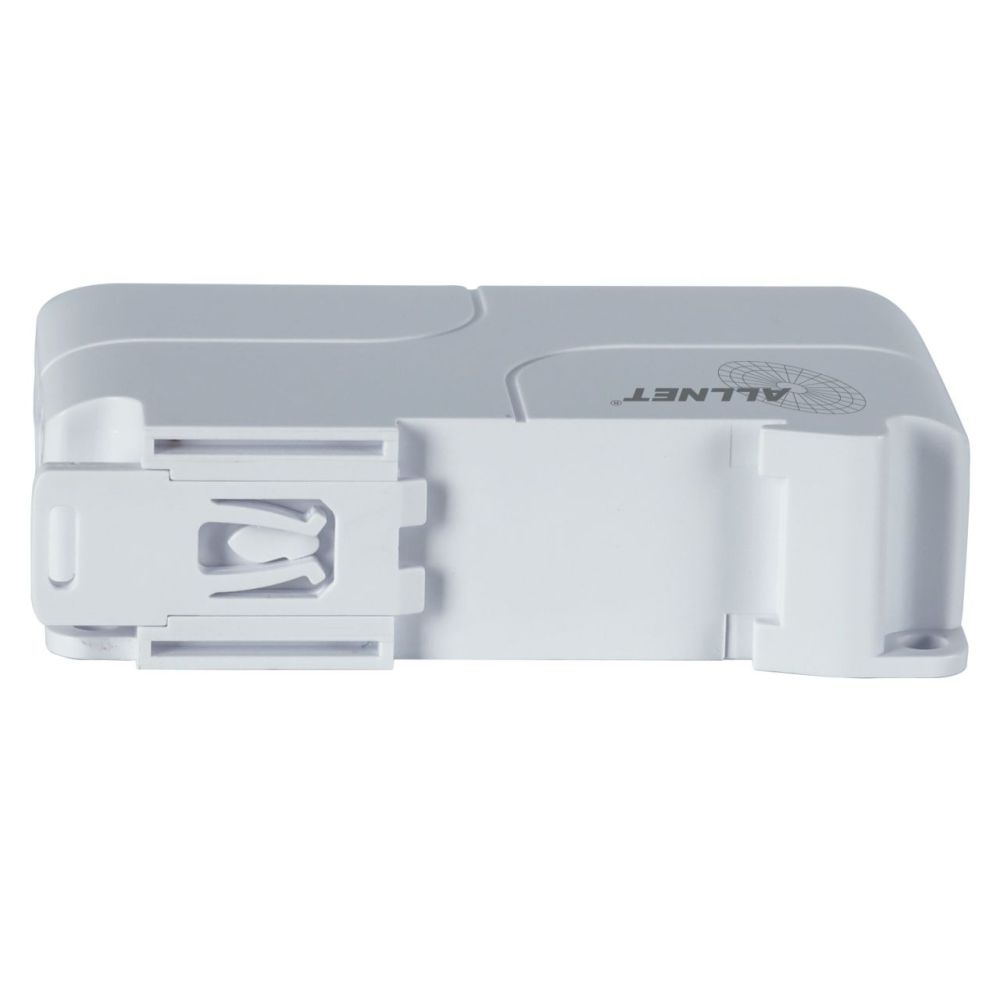

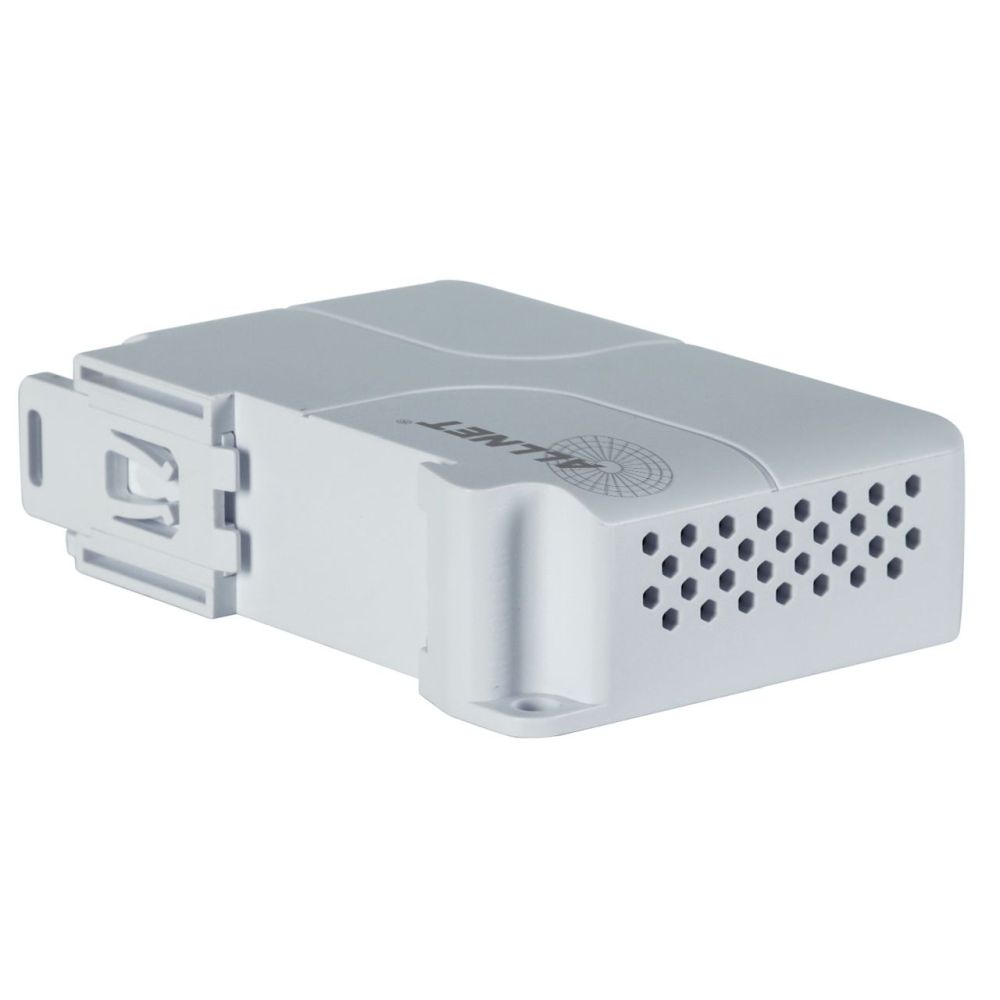

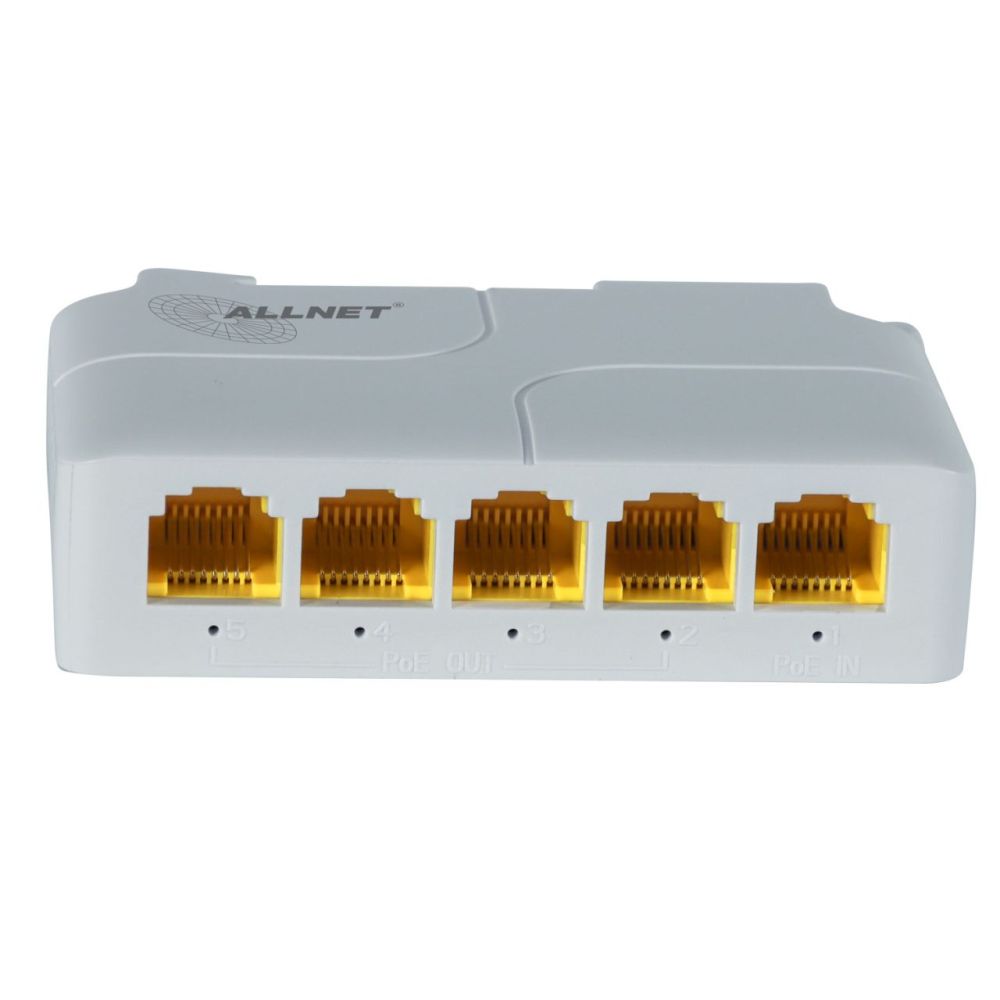

ALLNET Switch unmanaged Layer2 5 Port • 4x GbE • PoE Budget 85W • 4x PoE af/at out 1xPoE bt 90W in• Fanless, DIN, PD input • ALL-SG8005PD-BT90 Highlights: Compact switch for the DIN rail 5x 10/100/1000M copper ports of which port 2 max. 60W, port 3-5 PoE output ports max. 30W per port, port 1 = PoE PD BT 90W input Compact PoE switch with PD input and PoE outputs for DIN rail Port 2 PoE output with max. 60W PoE according to IEEE802.3bt
- Port 3-4 PoE output with max. 30W according to IEEE802.3af/at
- Port 1 PoE PD input Power supply via PoE network, no AC or DC power supply required, Supports standard PoE bt, Input max 90 W, PoE voltage 44-57 VDC PoE Pin: Input: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) Output: 1/2 (+), 3/6 (-) Compact design: L+W+H = 82 x 52 x 23mm Cascading of max. 4 switches possible (no POE left for devices) One Touch VLAN function can be activated via switch. The ALLNET ALL-SG8005PD Gigabit PoE+ Extender/Switch is a compact, powerful device that uses the latest network standards to extend your Ethernet signal over a distance of up to 100 meters per device. With the ability to achieve up to 500 meters total range, this extender offers flexibility and versatility. This amplifier is powered by Power over Ethernet (PoE), meaning no separate power supply is required. This allows use even in places without existing power cables or sockets. Extending the range or increasing the connection options is done without any additional effort. The 4 PoE ports offer a maximum budget of 85W PoE power. Port 2 delivers up to 60W, while ports 3-5 can each provide a maximum of 30W per port. In addition, ports 2-5 support both PoE and non-PoE compatible end devices, allowing flexible use.

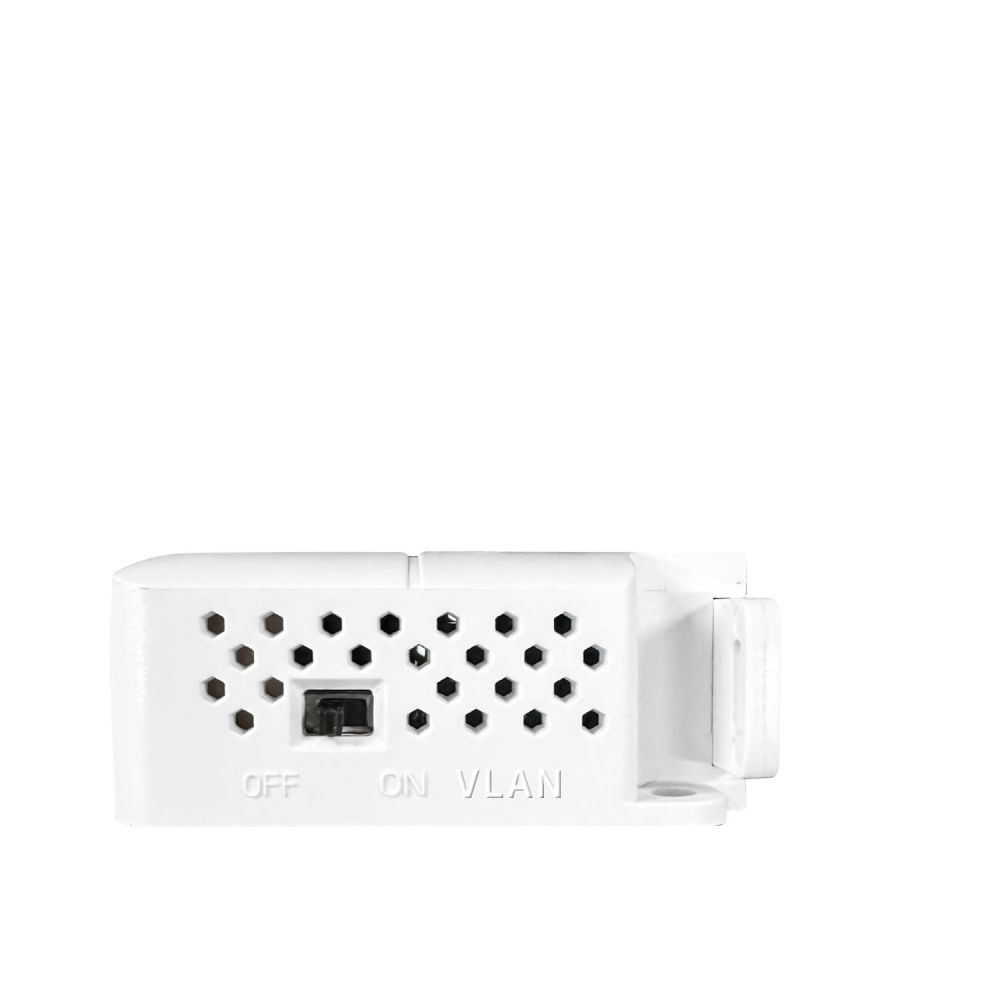

This solution is ideal for providing a reliable network connection in control cabinets or electrical switchboards. The additional ports can be used for IoT devices or other smart home end devices, which further increases the versatility and application possibilities of this extender. The switch offers the possibility of choosing between two operating modes via a switch: OFF-Normal mode or ON-VLAN Model ALL-SG8005PD-BT90 Product name ALLNET 5 Port PoE Extender Network transmission medium 10Base-T : Cat5e or above UTP(=100m)
100Base-TX : Cat,5e or above UTP(=100m)
1000Base-TX : Cat,5e or above UTP(=100m) Ethernet 4*10/100/1000Mbps PoE Port PoE Output
1*10/100/1000Mbps Ethernet Port Input Transmission distance Up to 100m per extender Network protocol IEEE802.3
IEEE802.3u
IEEE802.3x PoE protocol IEEE802.3bt (90) Input Port 1
IEEE802.3bt (60W Output Port 2
IEEE802.3at (30W) Output Port 3-5 Backplane bandwidth Store and forward
MAC address table 1k
Switching capacity 10Gbps Forwarding Rate 10BASE-tx: 14880PPS/port
100BASE-tx:148800pps/port
1000BASE-tx:1488000pps/port Port Function Power priority mechanism
fast and forward
MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode Packet forwarding rate 7.4Mpps PoE inputs 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) PoE outputs Ports 1-3 (1/2 +, 3/6-line pair)
Port 4 (1/2 +, 3/6-, 4/5 +, 7/8-line pair) Operating temperature -10~55°C Storage temperature -40~85°C Humidity Operating: 10% to 90% relative humidity (non-condensing)
Storage: 5% to 95% relative humidity (non-condensing) PoE power Input:DC44-57V
90W
Output:DC44-57V
85W PoE voltage 44-57 Vdc Size of the product 82*52*23mm Weight of the product 55g Marks CE
