Allnet ALL-MC115-VDSL-DIN MC-115 VDSL2 DIN / DIN / HAT-rail adapter content_copy

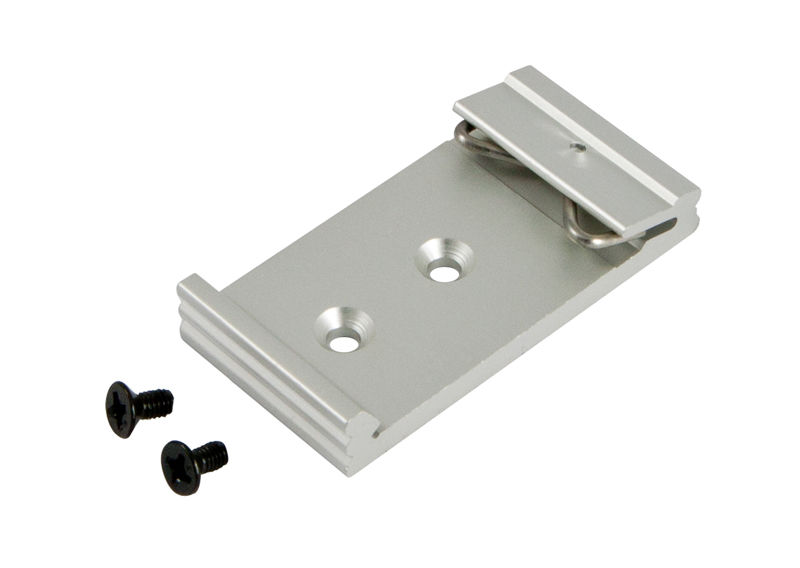

The HUT-DIN-rail adapter from Allnet, part number ALL-MC115-VDSL-DIN, is a specially developed accessory for mounting VDSL modems from the ALL-MC115VDSL2 and ALL-MC116 series onto DIN rail (Hutschiene). It enables secure and standardized fixation of the devices in enclosures, distribution boxes, or other installation systems equipped with DIN rails. Mounting is achieved via a click-lock mechanism, ensuring quick and tool-free installation. The adapter is designed for use in industrial and telecommunication environments where stable and secure mounting of network devices is required.

Applications
This adapter is primarily used in the installation of VDSL modems, particularly in telecommunication, for setting up point-to-point connections, or for using ISP bridge modems. It is suitable for applications in enclosures, distribution boxes, server rooms, or other technical units where devices are mounted on DIN rails. Use in industrial environments or for installing network infrastructures outdoors is also possible, provided the devices themselves meet the required protection ratings.

Functions and Features in Detail
The HUT-DIN-rail adapter is a mechanical mounting component that does not perform any electrical or data-related functions. It serves exclusively for mounting and stabilizing VDSL modems. Fixation is achieved via a click-lock mechanism, ensuring secure holding. The adapter is designed for mounting on standard DIN rails, commonly used in electrical and IT technology. The precise fit and mechanical stability are optimized for devices from the ALL-MC115VDSL2 and ALL-MC116 series.

Technology Explained Simply
The adapter uses DIN-rail technology, widely adopted in the electrical and IT industries. The DIN rail (also known as Hutschiene) is a standardized mounting system installed in enclosures, distribution boxes, and other technical housings. The adapter is simply clicked onto the rail, automatically securing the device. This simplifies installation and allows for quick, tool-free mounting. The mechanical design ensures secure fixation, even under vibrations or movement during operation.

Compatibility and Accessories
The adapter is specifically developed for the modem series ALL-MC115VDSL2 and ALL-MC116. It is compatible with models ALL-MC116V2, ALL-MC116SV-VDSL2, and ALL-MC116SPV-VDSL2, used as point-to-point modems or ISP bridge modems. These devices support VDSL2 technology, partially with vectoring, and offer features such as PoE (Power over Ethernet) or unmanaged network ports. The adapter is mounted directly onto the devices, which are then clicked onto the DIN rail. Suitable enclosures and mounting accessories, such as 48,3 cm ( 19 inch ) wall-mounted enclosures from the SO series or DIN-RAIL wall-mounted enclosures from the SO-DIN series, are also available and can be used for installation.

Mounting and Installation
Mounting is tool-free. The adapter is attached to the VDSL modem, with the exact mounting method determined by the device's design. Subsequently, the device with the adapter is clicked onto the DIN rail. The click-lock mechanism ensures secure fixation. Installation is quick and requires no additional fastening elements. Positioning depends on the enclosure or housing construction, with the DIN rail serving as the standard mounting system.

Operational Advantages
Using the HUT-DIN-rail adapter provides standardized and secure mounting of VDSL modems. Tool-free mounting reduces installation time and effort. Mechanical stability ensures reliable fixation, even in environments with vibrations or movement. Compatibility with various models from the ALL-MC115VDSL2 and ALL-MC116 series enables flexible use in different application scenarios. Installation in enclosures or distribution boxes is straightforward, provided a DIN rail is present.

General
Product type	HUT-DIN rail adapter
Compatibility	ALL-MC115VDSL2, ALL-MC116 series
Mounting method	click lock on DIN rail
Manufacturer	Allnet

---
