ALLNET point-to-point coax 8 port master chassis/amplifier EOC 100 plus EOC G.hn WIFI flush-mounted box/through-box ALL-GHN108S-100-UP-Dose
|
151,67 EUR |
|
|
( 180,49 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2114668 |
|---|---|
| Mfg Part No: | ALL-GHN108S-100-WIFI |
| Weight: | 1 kg |
Product information for ALLNET ALL-GHN108S-100-WIFI:

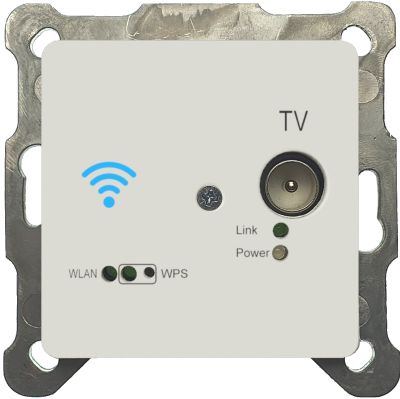

An existing coaxial cable is used for the simultaneous transmission of DVB-C and network data. The EOC WLAN flush-mounted socket ALL-GHN108S-100-WIFI is a C-through socket with integrated 2.4 GHz WLAN (Wi-Fi 4 2x2 802.11n) and has 2 antennas (2T2R).
The coaxial socket provides a broadband cable signal (108 - 860 MHz) and can be used with a commercially available receiver.
The TV signal is output via the coaxial socket, the network data via WLAN.
The individual flush-mounted sockets/G.hn modules are networked automatically.
The EOC WLAN ALL-GHN108S-100-WIFI" is operated via remote power supply by a master/amplifier "ALL-GHN108M-Coax-254 cm ( 100 inch ). It can then supply 4 subsequent EOC 100 "ALL-GHN108S-100-UP-Dose or EOC WIFI ALL-GHN108S-100-WIFI.
The EOC WLAN ALL-GHN108S-100-WIFI" can be installed in a single flush-mounted box as well as in a multiple flush-mounted box. Each EOC WLAN "ALL-GHN108S-100-WIFI can exchange data with any other flush-mounted socket. Recommended application: Building upgrade with Gigabit with existing coaxial cabling and a small budget Home users Small company networks Hotels Hospitals Health resorts Retirement homes Renovation of old buildings Coax DVB-C single socket for series distribution Installation in single and multiple sockets Frequency range: 2 - 80 MHz Network standard: G.Hn Gross data rate: 2000 Mbps Net data rate: 1700 Mbps Transmission loss: 300 - 860 MHz: -2 dB (16 dB directional coupler) Transmission loss: 300 - 860 MHz: -3 dB (10 dB directional coupler) Directional coupler: 10 dB or 16 dB Hardware encryption: AES 128-bit Quality of Service: VLAN/TOS/Packet Classifier Remote maintenance: TR-069 Remote Management (optional) Suitable only for DVB-C cabling Not suitable for satellite cabling
Technical data: Software: openWRT 21.02.0 CPU: MIPS24KEc 580 MHz RAM: 64 MB RAM Flash: 32 MB Crypto: AES 128/256 Wi-Fi4: Data rate 2x 150 Mbit/s (gross) 2x2 802.11n Freqency: 2.4 GHz Antenna: 2T2R
The coaxial socket provides a broadband cable signal (108 - 860 MHz) and can be used with a commercially available receiver.
The TV signal is output via the coaxial socket, the network data via WLAN.
The individual flush-mounted sockets/G.hn modules are networked automatically.
The EOC WLAN ALL-GHN108S-100-WIFI" is operated via remote power supply by a master/amplifier "ALL-GHN108M-Coax-254 cm ( 100 inch ). It can then supply 4 subsequent EOC 100 "ALL-GHN108S-100-UP-Dose or EOC WIFI ALL-GHN108S-100-WIFI.
The EOC WLAN ALL-GHN108S-100-WIFI" can be installed in a single flush-mounted box as well as in a multiple flush-mounted box. Each EOC WLAN "ALL-GHN108S-100-WIFI can exchange data with any other flush-mounted socket. Recommended application: Building upgrade with Gigabit with existing coaxial cabling and a small budget Home users Small company networks Hotels Hospitals Health resorts Retirement homes Renovation of old buildings Coax DVB-C single socket for series distribution Installation in single and multiple sockets Frequency range: 2 - 80 MHz Network standard: G.Hn Gross data rate: 2000 Mbps Net data rate: 1700 Mbps Transmission loss: 300 - 860 MHz: -2 dB (16 dB directional coupler) Transmission loss: 300 - 860 MHz: -3 dB (10 dB directional coupler) Directional coupler: 10 dB or 16 dB Hardware encryption: AES 128-bit Quality of Service: VLAN/TOS/Packet Classifier Remote maintenance: TR-069 Remote Management (optional) Suitable only for DVB-C cabling Not suitable for satellite cabling
Technical data: Software: openWRT 21.02.0 CPU: MIPS24KEc 580 MHz RAM: 64 MB RAM Flash: 32 MB Crypto: AES 128/256 Wi-Fi4: Data rate 2x 150 Mbit/s (gross) 2x2 802.11n Freqency: 2.4 GHz Antenna: 2T2R
