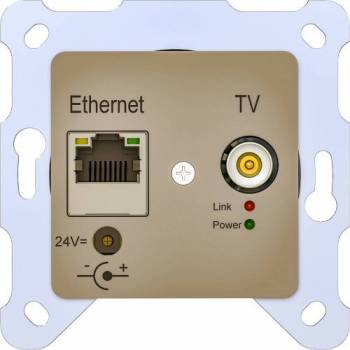

ALLNET point-to-point coax 8 port master chassis/amplifier EOC 100 plus EOC G.hn flush-mounted box/through-box ALL-GHN108S-100-UP-Dose

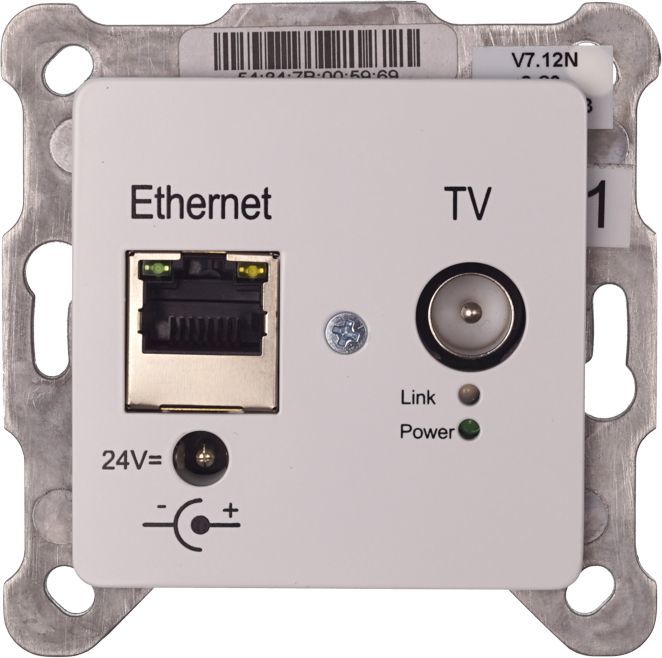

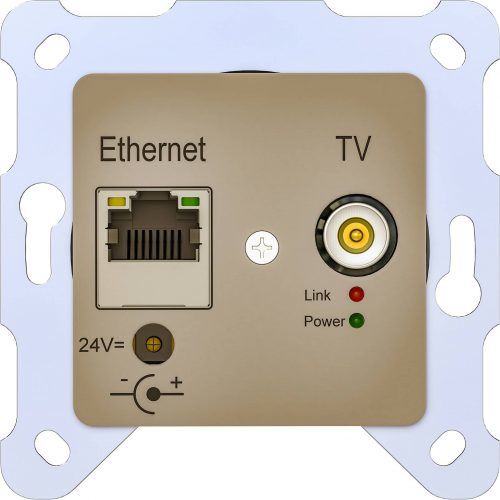

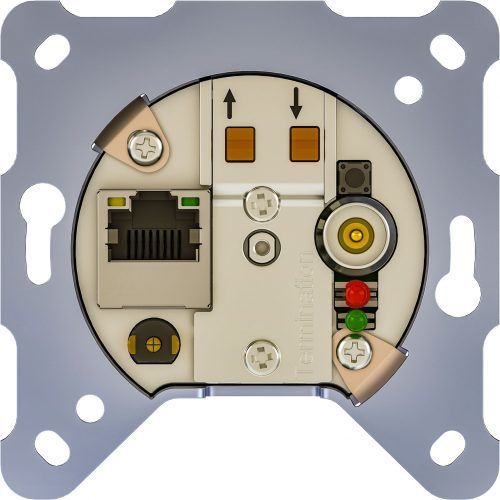

The EOC 100MHz UP-box ALL-GHN108S-100-UP-Dose is a C-through box with integrated Gbit LAN interface. A coaxial cable is used for the simultaneous transmission of DVB-C (108 MHz – 850 MHz) and network data (standard G.Hn over COAX WLAN Powerline DOCSIS 3.0/3.1 over Coax net data rate 1.5 Gbit 240 Mbit – WiFi 4²
600 Mbit - Wi-Fi 5²
800 Mbit - Wi-Fi 6² 400 Mbit Powerline AV1200²
400 Mbit Powerline AV2000² 1600 Mbit/s download³
240 Mbit/s upload³ Acquisition costs medium Wi-Fi4 devices cheap
Wi-Fi5 devices medium
Wi-Fi6 devices expensive AV1200 devices cheap
AV2000 devices medium high
required DOCSIS - CMTS server Power consumption up to 3W/Gbit >6 W/Gbit
Access point included up to 6 W/Gbit >8 W/Gbit
Server included Susceptibility to interference not susceptible to interference due to many users not susceptible to interference due to electrical consumers Wiretapping security yes WPA3 yes
WPA2 no yes yes visual effect small
disappears in the wall medium
router is in the room large
protrudes from the socket medium
modem is in the room ² Source:
³ Source: Technical data: DVB-C single socket for series distribution Installation in single and multiple sockets Frequency range: 2 – 80 MHz Network standard: G.Hn Gross data rate: 1000 Mbps Net data rate: 650 Mbps Through loss: 108 – 860 MHz: -2 dB (18 dB directional coupler) Through loss: 108 – 860 MHz: -3 dB (12 dB directional coupler) Directional coupler: 16 dB (other values on request) Hardware encryption: AES 128-bit Quality of Service: VLAN/TOS/Packet Classifier Remote maintenance: TR-069 Remote Management (optional) Suitable only for DVB-C cabling
Not suitable for satellite cabling Power consumption EOC 100 ALL-GHN108S-100-UP-Dose Data rate net Power consumption 50 Mbit/s 2.06 watts 100 Mbit/s 2.27 watts 200 Mbit/s 2.47 watts 300 Mbit/s 2.68 watts 400 Mbit/s 2.81 watts 500 Mbit/s 2.90 watts 750 Mbit/s 3.05 watts
