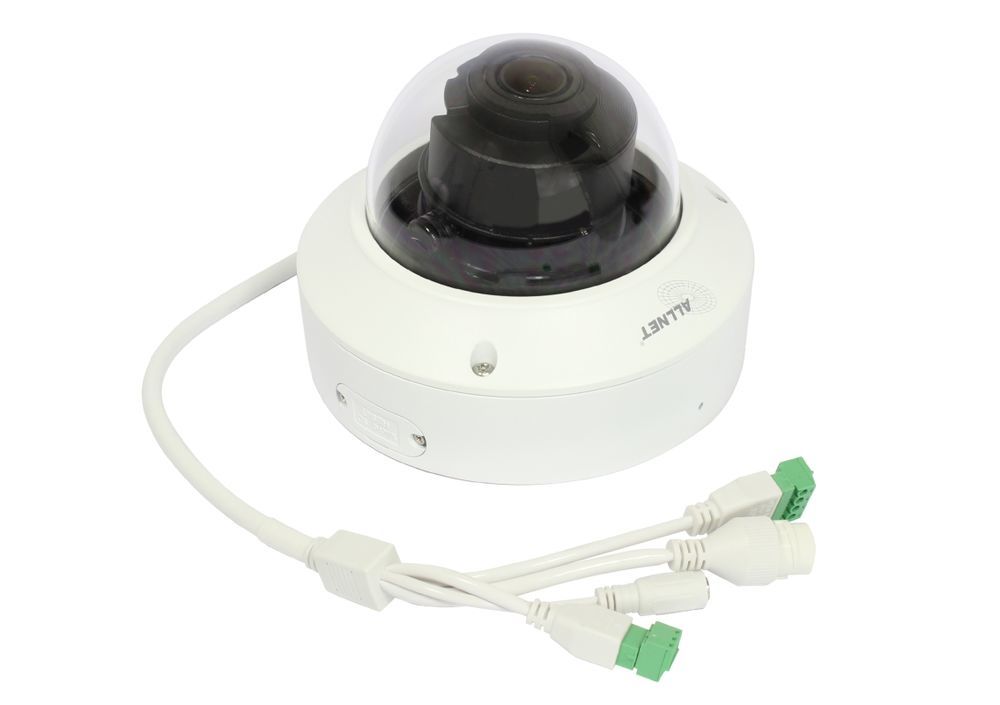

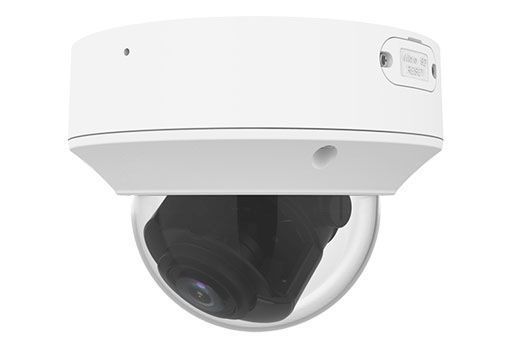

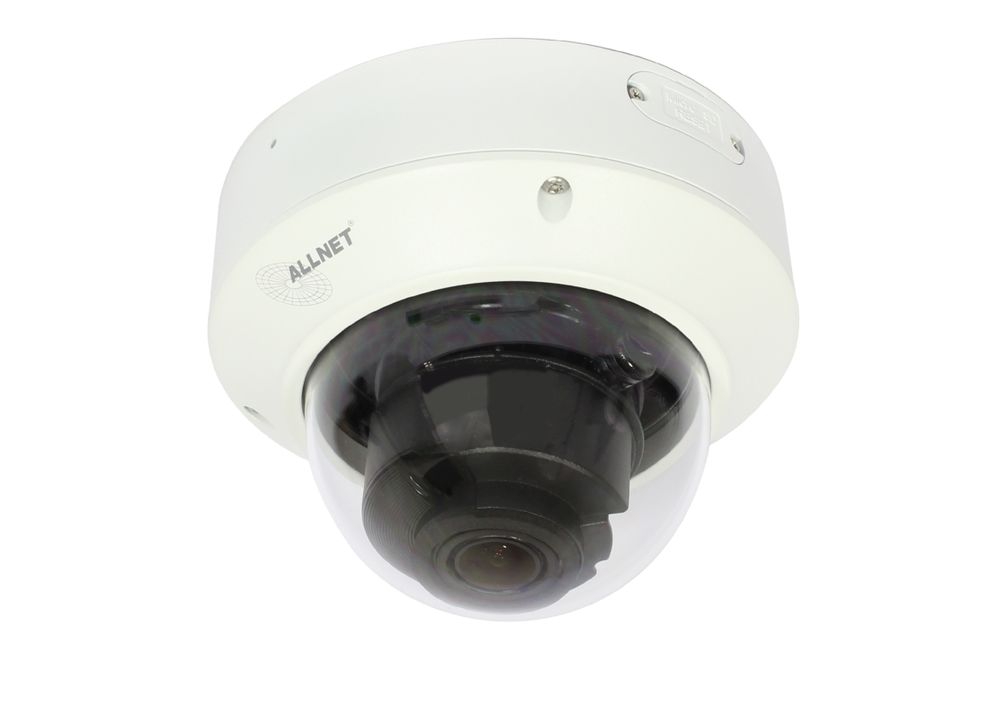

ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN
|
274,55 EUR |
|||||||||||
|
( 326,71 EUR incl. VAT ) ≈ £232.82 | ≈ $307.77 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1895586 | ||||||||||
| Mfg Part No: | ALL-CAM2495v3-LVEFN | ||||||||||
| UPC/EAN: | 4038816209795 | ||||||||||
| Weight: | 1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ALL-CAM2495v3-LVEFN:
Highlights: Optics 1/6,9 cm ( 2,7 inch ), light source: Lighthunter Smart IR, up to 50m (164 ft) IR distance Up to 120 dB optical WDR (Wide Dynamic Range) compression Ultra 265, H.265, H.264, MJPEG Triple streams 2592*1944@20fps in main stream ROI (Region of Interest) Network ONVIF compliance Construction DC12V or PoE power supply Wide voltage range of ±25% in DC Micro SD, up to 256GB Alarm 1 input and 1 output, Audio 1 Input and 1 output IP67 protection against intrusion IK10 vandalism-proof
Links to direct streams see = Technical Details: ALL-CAM2495v3-LVEFN Camera Sensor 1/6,9 cm ( 2,7 inch ), 5.0 megapixel, progressive scan, CMOS Lens 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens Iris Auto aperture DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 70.9(232.5ft) 28.4(93.0ft) 14.2(46.5ft) 7.1(23.3ft ) 13.5 247.5(812.0ft) 99.0(324.8ft) 49.5(162.4ft) 24.8(81.2ft) Angle of View (H) 26.8°~93.1° Angle of View (V) 20.7°~66.0° Angle of View (O) 31.6°~121.0° Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0°~355° Tilt: 0°~80° Rotate: 0°~355° Min. Illumination Colour:0.002ux (F1.2, AGC ON)
0 lux with IR WDR 120dB Day/Night IR-cut filter with auto switch (ICR) IR Range Up to 50m (164 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 5MP(2592*1944),Max 20fps 4MP(2560*1440),Max 30fps
Sub Stream: 2MP (1920*1080), Max 30fps
Third Stream: D1 (720*576), Max 30fps Video Bit Rate 128 Kbps~16 Mbps ROI Supported Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 8 areas(8 blacks/8 mosaics) Image White Balance Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Events General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Two-way Audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR ,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation
EZLive
Ezview Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Interface Audio I/O Audio cable 1 Input: impedance 35kO amplitude 2V [pp] 1 output: impedance 600O amplitude 2V [pp] Alarm I/O 1/1 Network 1 * RJ45 10M/100M Base-TX Ethernet Certification Certifications CE: EN 60950-1
UL: UL 60950- 1
FCC: FCC Part 15 General
Power
DC12V(±25%), PoE(IEEE 802.3af) Power consumption: Max 8W Support overcurrent protection, Input short circuit protection Dimensions (Ø x H) F148.0 x 111.4mm (F14,7 cm ( 5,8 inch ) x11,2 cm ( 4,4 inch ) ) Weight 0.93kg(2.05lb) Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: =95% RH (non-condensing) Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: =95% RH (non-condensing) Surge protection 6KV Vandal Resistant IK10 Ingress Protection IP67
Links to direct streams see = Technical Details: ALL-CAM2495v3-LVEFN Camera Sensor 1/6,9 cm ( 2,7 inch ), 5.0 megapixel, progressive scan, CMOS Lens 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens Iris Auto aperture DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 70.9(232.5ft) 28.4(93.0ft) 14.2(46.5ft) 7.1(23.3ft ) 13.5 247.5(812.0ft) 99.0(324.8ft) 49.5(162.4ft) 24.8(81.2ft) Angle of View (H) 26.8°~93.1° Angle of View (V) 20.7°~66.0° Angle of View (O) 31.6°~121.0° Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0°~355° Tilt: 0°~80° Rotate: 0°~355° Min. Illumination Colour:0.002ux (F1.2, AGC ON)
0 lux with IR WDR 120dB Day/Night IR-cut filter with auto switch (ICR) IR Range Up to 50m (164 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 5MP(2592*1944),Max 20fps 4MP(2560*1440),Max 30fps
Sub Stream: 2MP (1920*1080), Max 30fps
Third Stream: D1 (720*576), Max 30fps Video Bit Rate 128 Kbps~16 Mbps ROI Supported Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 8 areas(8 blacks/8 mosaics) Image White Balance Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Events General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Two-way Audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR ,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation
EZLive
Ezview Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Interface Audio I/O Audio cable 1 Input: impedance 35kO amplitude 2V [pp] 1 output: impedance 600O amplitude 2V [pp] Alarm I/O 1/1 Network 1 * RJ45 10M/100M Base-TX Ethernet Certification Certifications CE: EN 60950-1
UL: UL 60950- 1
FCC: FCC Part 15 General
Power
DC12V(±25%), PoE(IEEE 802.3af) Power consumption: Max 8W Support overcurrent protection, Input short circuit protection Dimensions (Ø x H) F148.0 x 111.4mm (F14,7 cm ( 5,8 inch ) x11,2 cm ( 4,4 inch ) ) Weight 0.93kg(2.05lb) Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: =95% RH (non-condensing) Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: =95% RH (non-condensing) Surge protection 6KV Vandal Resistant IK10 Ingress Protection IP67
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN?
The article ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL-CAM2495v3-LVEFN to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN always at the best possible price. We can give you a discount of 2% on ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized Vario Lens / 93° / ALL-CAM2495v3-LVEFN we can offer you a price of 272,49 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
