ALLNET AD003
Radxa e.g. 25,4 cm ( 10 inch ) inch FHD DSI LCD Mipi display touch screen capacitive
|
74,05 EUR |
|
|
( 88,12 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1890396 |
|---|---|
| Mfg Part No: | AD003 |
| UPC/EAN: | 4038816207487 |
| Weight: | 0.1 kg |
Product information for ALLNET AD003:
A brilliant accessory for your rock boards
High brightness and resolution combined with the gravity sensor and the new 10-point capacitive touch make RADXA's 10-inch display the best choice for your rock boards.

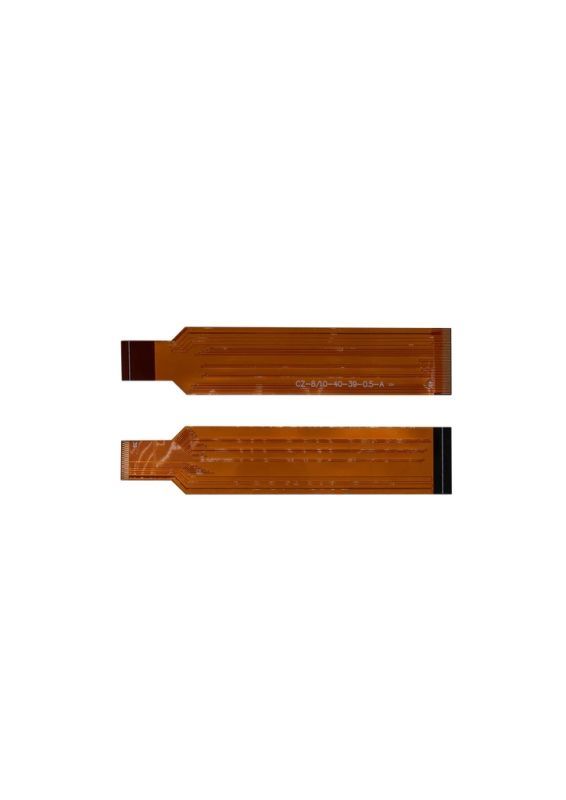

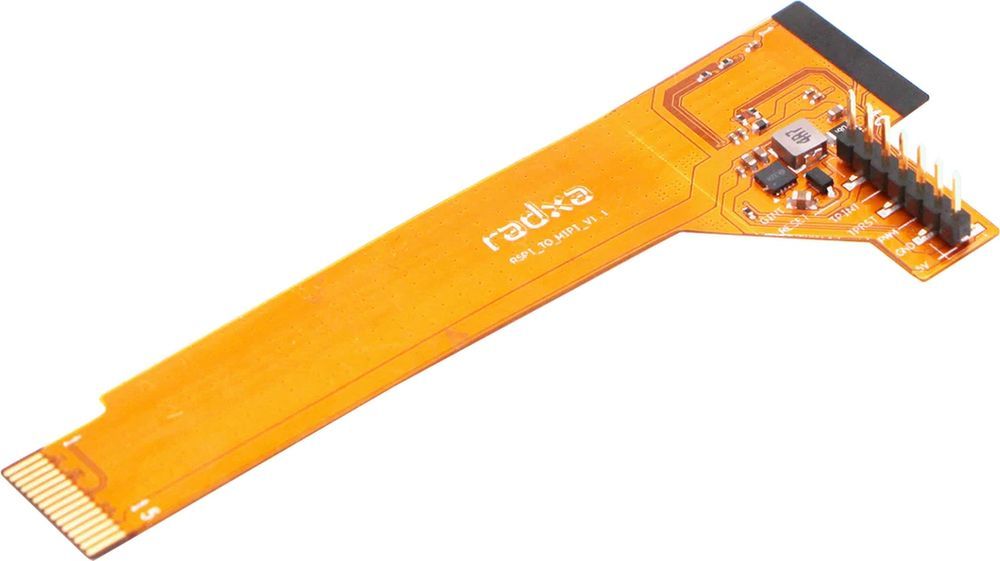

Specifications: 10.1 inch TFT-LCD IPS display Resolution: 1200x1920 pixels FHD Brightness: 300cd/m2 Viewing angle: Full viewing angle Touch screen: 10-point capacitive touch (powered by GT9271) Interface: MIPI DSI interface Built-in gravity sensor for rotation ( SC7A20) One cable for touch and data Operating temperature: -20-60°C Storage temperature: -25 ~ 70°C Maximum power consumption < 5W Full-text touch panel and LCD Mounting options on the back for supported rock boards Mounting option for display in the housing External dimensions: 155x246.16x5.95mm 39 to 40 pin FPC connector cable included 15 to 40 pin FPC connector cable included OS support: Linux and Android *) Hardware support:
ROCK 3A, 3C
ROCK 4A / 4B / 4SE / 4A+ / 4B+ / 4C+
ROCK 5A / 5B
High brightness and resolution combined with the gravity sensor and the new 10-point capacitive touch make RADXA's 10-inch display the best choice for your rock boards.
Specifications: 10.1 inch TFT-LCD IPS display Resolution: 1200x1920 pixels FHD Brightness: 300cd/m2 Viewing angle: Full viewing angle Touch screen: 10-point capacitive touch (powered by GT9271) Interface: MIPI DSI interface Built-in gravity sensor for rotation ( SC7A20) One cable for touch and data Operating temperature: -20-60°C Storage temperature: -25 ~ 70°C Maximum power consumption < 5W Full-text touch panel and LCD Mounting options on the back for supported rock boards Mounting option for display in the housing External dimensions: 155x246.16x5.95mm 39 to 40 pin FPC connector cable included 15 to 40 pin FPC connector cable included OS support: Linux and Android *) Hardware support:
ROCK 3A, 3C
ROCK 4A / 4B / 4SE / 4A+ / 4B+ / 4C+
ROCK 5A / 5B
