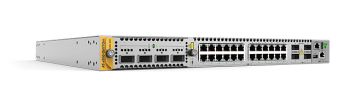

Allied Telesis AT-X950-28XTQM-B01 ALLIED Advanced Layer 3 switch 24x 100M/1G/2.5G/5G/10G-T 4x QSFP+/QSFP28 1x Expansion slot and dual hotswap PSU bays
|
-14% 14.146,97 EUR 16.435,76 EUR |
|
|
( 16.834,89 EUR incl. VAT ) ≈ £11,911.75 | ≈ $15,887.05 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1529088 |
| Mfg Part No: | AT-X950-28XTQM-B01 |
| UPC/EAN: | 0767035215723 |
| Weight: | 10.94 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X950-28XTQM-B01:
| Certificates | |
| Certification | UL, cUL, TUV |
| Data transmission | |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1190 Mpps |
| MAC address table | 96000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic shaping | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Policy-based VLAN, Stacked VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 871.1 BTU/h |
| Packaging data | |
| Package weight | 10.9 kg |
| Performance | |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Noise level | 61.9 dB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 4 |
| Power | |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 255.3 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, BGP4, IP, OSPF, RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TLS, TTLS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 445 mm |
| Height | 44 mm |
| Weight | 7.26 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X950-28XTQM-B01 ALLIED Advanced Layer 3 switch 24x 100M/1G/2.5G/5G/10G-T 4x QSFP+/QSFP28 1x Expansion slot and dual hotswap PSU bays?
The article Allied Telesis AT-X950-28XTQM-B01 ALLIED Advanced Layer 3 switch 24x 100M/1G/2.5G/5G/10G-T 4x QSFP+/QSFP28 1x Expansion slot and dual hotswap PSU bays is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X950-28XTQM-B01 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X950-28XTQM-B01 ALLIED Advanced Layer 3 switch 24x 100M/1G/2.5G/5G/10G-T 4x QSFP+/QSFP28 1x Expansion slot and dual hotswap PSU bays always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X950-28XTQM-B01 ALLIED Advanced Layer 3 switch 24x 100M/1G/2.5G/5G/10G-T 4x QSFP+/QSFP28 1x Expansion slot and dual hotswap PSU bays if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
