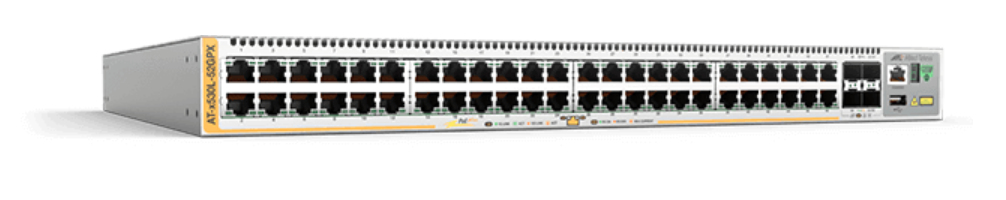

Allied Telesis AT-X530L-52GPX-50 ALLIED 48-port 10/100/1000T PoE+ stackable switch 4 SFP+ ports 2 fixed power supplies
|
3.346,85 EUR 3.494,91 EUR |
|
|
( 3.982,75 EUR incl. VAT ) ≈ £2,818.05 | ≈ $3,758.51 plus delivery charges: 83,00 € |
|
| Made to order · Expected to be available from 04.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1539653 |
| Mfg Part No: | AT-X530L-52GPX-50 |
| UPC/EAN: | 0767035217154 |
| Weight: | 9.316 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X530L-52GPX-50:
| Certificates | |
| Certification | UL, cUL, RoHS UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 3 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 3242 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package weight | 8.9 kg |
| Performance | |
| Physical stacking (units) | 4 |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Power | |
| Power consumption (max) | 950 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Security algorithms | HTTPS, PEAP, SHA-2, SNMP, SSH-2, SSL/TLS, TTLS |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 421 mm |
| Height | 44 mm |
| Weight | 6.7 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X530L-52GPX-50 ALLIED 48-port 10/100/1000T PoE+ stackable switch 4 SFP+ ports 2 fixed power supplies?
The article Allied Telesis AT-X530L-52GPX-50 ALLIED 48-port 10/100/1000T PoE+ stackable switch 4 SFP+ ports 2 fixed power supplies is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X530L-52GPX-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X530L-52GPX-50 ALLIED 48-port 10/100/1000T PoE+ stackable switch 4 SFP+ ports 2 fixed power supplies always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X530L-52GPX-50 ALLIED 48-port 10/100/1000T PoE+ stackable switch 4 SFP+ ports 2 fixed power supplies if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
