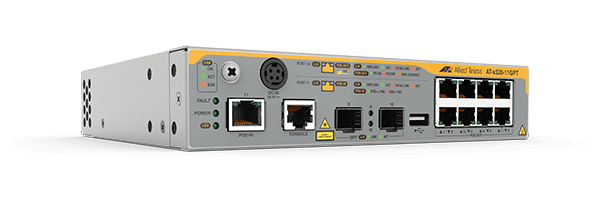

Allied Telesis AT-X320-11GPT-50 ALLIED L3 Gigabit Switch 8-port 10/100/1000T PoE+ 2-port 100/1000X SFP 1-port AC-input 1-port PoE-in
|
1.168,54 EUR |
|
|
( 1.390,56 EUR incl. VAT ) ≈ £978.07 | ≈ $1,307.60 plus delivery charges: 55,00 € |
|
| Made to order · Expected to be available from 03.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1538724 |
| Mfg Part No: | AT-X320-11GPT-50 |
| UPC/EAN: | 0767035216065 |
| Weight: | 3.61 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X320-11GPT-50:
| Certificates | |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 16.4 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| MIB support | SNMP |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| Traffic shaping | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 350 BTU/h |
| Packaging data | |
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 3.5 kg |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power consumption (max) | 98 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | OSPF, RIP, RIP-1 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP snooping |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, IEEE 802.1x, RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
