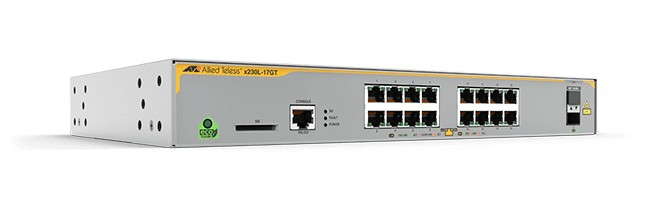

Allied Telesis AT-X230L-17GT-50 ALLIED 16-port 10/100/1000T port 1G SFP
|
681,82 EUR 691,05 EUR |
|
|
( 811,37 EUR incl. VAT ) ≈ £574.09 | ≈ $765.68 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1116864 |
|---|---|
| Mfg Part No: | AT-X230L-17GT-50 |
| UPC/EAN: | 0767035216171 |
| Weight: | 3.64 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X230L-17GT-50:
| Certificates | |
| Certification | UL, cUL, UL-EU |
| Data transmission | |
| Switching capacity | 34 Gbit/s |
| Forwarding rate | 25.3 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | EN55022 A, FCC A, VCCI A |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| MIB support | SNMP |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 512 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Flow control support | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 51 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 100BASE-X, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 400 mm |
| Package height | 145 mm |
| Package weight | 3.4 kg |
| Performance | |
| Physical stacking (units) | 24 |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Compatible memory cards | SD, SDHC |
| Power | |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | RIP |
| Security | |
| DHCP features | DHCP client, DHCP snooping |
| Security algorithms | 3DES, AES, SHA-1, SHA-2, SHA-256, SNMP, SSH |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X230L-17GT-50 ALLIED 16-port 10/100/1000T port 1G SFP?
The article Allied Telesis AT-X230L-17GT-50 ALLIED 16-port 10/100/1000T port 1G SFP is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X230L-17GT-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X230L-17GT-50 ALLIED 16-port 10/100/1000T port 1G SFP always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X230L-17GT-50 ALLIED 16-port 10/100/1000T port 1G SFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
