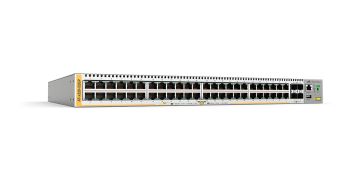

Allied Telesis AT-X220-52GP-50 ALLIED 48port 10/100/1000T PoE+ 4port 100/1000X SFP L3 switch 1 Fixed AC power supply EU Power Cord
|
2.011,86 EUR |
|
|
( 2.394,11 EUR incl. VAT ) ≈ £1,683.93 | ≈ $2,251.27 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1151625 |
|---|---|
| Mfg Part No: | AT-X220-52GP-50 |
| UPC/EAN: | 0767035212197 |
| Weight: | 7.867 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X220-52GP-50:
| Certificates | |
| Certification | UL, cUL, UL-EU, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 35.1 µs |
| Latency (1 Gbps) | 5.5 µs |
| Latency (10 Gbps) | 2.6 µs |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 3 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A, |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| IPv4 multicast entries | 16 |
| IPv6 multicast entries | 16 |
| Multicast Listener Discovery (MLD) snooping | MLDv1 and v2 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, VLAN mapping |
| Full duplex | |
| IP routing | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 164 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 1000BASE-SX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑ZX |
| Wavelength | 1310 nm |
| Packaging data | |
| Package width | 572 mm |
| Package depth | 520 mm |
| Package height | 150 mm |
| Package weight | 7.8 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 42 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Power connector | AC-in jack |
| Power | |
| Power consumption (max) | 48 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) pass through | |
| Protocols | |
| Management protocols | AMF MIB, SNMP, IEEE 802.1AB, MIB, RIPv2 |
| Routing protocols | RIP, RIP-1, RIP-2 |
| Security | |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, SSH, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 359 mm |
| Height | 44 mm |
| Weight | 5.8 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X220-52GP-50 ALLIED 48port 10/100/1000T PoE+ 4port 100/1000X SFP L3 switch 1 Fixed AC power supply EU Power Cord?
The article Allied Telesis AT-X220-52GP-50 ALLIED 48port 10/100/1000T PoE+ 4port 100/1000X SFP L3 switch 1 Fixed AC power supply EU Power Cord is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X220-52GP-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X220-52GP-50 ALLIED 48port 10/100/1000T PoE+ 4port 100/1000X SFP L3 switch 1 Fixed AC power supply EU Power Cord always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X220-52GP-50 ALLIED 48port 10/100/1000T PoE+ 4port 100/1000X SFP L3 switch 1 Fixed AC power supply EU Power Cord if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
