Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF

Your rating:
Average rating
product review for Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF
( 5 / 5 ) 1 ratings

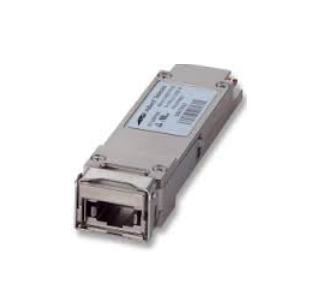

Allied Telesis AT-QSFPLR4
This image may differ from the desired article.
3.264,66 EUR
( 3.884,95 EUR incl. VAT )
≈ £2,732.52  |  ≈ $3,587.86
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF
Datasheet:file_download Download
Lieske Part No.:121678
Mfg Part No: AT-QSFPLR4
UPC/EAN: 0767035206172
Weight:0.06 kg
Type:CPNT

Product information for Allied Telesis AT-QSFPLR4:

The Allied Telesis AT-QSFPLR4 is a QSFP transceiver designed for use in high-speed networks, specifically engineered for 40-Gigabit-Ethernet applications. As a fiber optic module with LR4 standard, it enables transmission over single-mode fiber (SMF) and is designed for maximum reach up to 10,000 meters. The module is manufactured in grey and is intended for use in switches, routers, and other network devices supporting the IEEE 802.3ba standard. It features an LC optical cable connector and is suitable for use in data and telecommunications networks, particularly in environments requiring high port density.

Applications

The AT-QSFPLR4 is designed for use in datacom and telecom environments where high bandwidth and long transmission distances are required. It is suitable for switch and router connections, data aggregation, backplane applications, and systems with high-density port configurations. Typical use cases include data centers, backbone networks, or connecting network components over long distances. The 4 CWDM lanes (Coarse Wavelength Division Multiplexing) allow simultaneous use of four wavelength channels, achieving a total data rate of 40 Gbit/s.

Functions and Features in Detail

The module is hot-swappable, meaning it can be replaced without interrupting network operation. This is particularly advantageous during maintenance or when expanding existing networks. The Digital Diagnostic Monitoring (DDM) enables real-time monitoring of parameters such as transmit power, receive sensitivity, temperature, and voltage, simplifying network administration. The receive sensitivity is -11.5 dBm, ensuring reliable signal transmission even at low signal strength. The transmit power ranges from -7 dBm to 2.3 dBm, which is within the specifications for LR4 modules.

Technology Explained Simply

The AT-QSFPLR4 uses QSFP technology, a compact form factor connector developed for high port density in modern network devices. The 40-Gigabit-Ethernet connection is achieved through four individual wavelength channels (1271 nm, 1291 nm, 1311 nm, 1331 nm), multiplexed via a CWDM MUX/DEMUX design. This enables efficient fiber utilization and high data rates. The single-mode fiber ensures low attenuation and high reach, making it ideal for long distances in backbone applications. The LC connector is a standard in fiber optics and ensures a secure and precise connection.

Compatibility and Accessories

The module is MSA-compliant and conforms to industry standards SFF-8436 and IEEE 802.3ba, enabling interoperability with other devices supporting these specifications. It is therefore suitable not only for Allied Telesis devices but also for other manufacturers adhering to the standard. As accessories, the manufacturer’s catalog offers QSFP+ cables (e.g., AT-QSFP1CU, AT-QSFP3CU) and breakout cables (e.g., AT-QSFP-4SFP10G-3CU) that enable connection to four individual 10-Gigabit ports. MTP cables (e.g., AT-MTP12-1, AT-MTP12-5) are also available to connect to MTP connectors.

Installation and Mounting

Installation is performed by simply inserting the module into the corresponding QSFP slot of a compatible network device. Due to the hot-swap feature, replacement can be done without powering down the device. The fiber connection is made via the integrated LC connector, which is directly plugged into an LC socket. Installation requires no special tools or additional components. Operating conditions include an operating temperature of 0 to 70 °C and a storage temperature of -20 to 85 °C, with relative humidity during operation up to 85 %.

Operational Advantages

The AT-QSFPLR4 offers a high bandwidth of 11.2 Gbit/s per channel (total 40 Gbit/s), sufficient for modern network requirements. The low power consumption of 3.5 W in standard operation reduces energy costs and thermal load. The hot-swap feature enables flexible network design and minimizes downtime. RoHS compliance ensures environmentally friendly manufacturing. Digital diagnostics support network monitoring and simplify troubleshooting. The long-reach capability up to 10 km makes the module particularly suitable for backbone and campus networks.

Certificates
Compliance certificatesRoHS
Features
Product colourGrey
Hot-swapYes
Logistics data
Harmonized System (HS) code85369010
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)0 - 85%
Other features
RX sensitivity-11.5 dB
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate11200 Mbit/s
Interface typeQSFP
Fiber optic connectorLC
SFP transceiver standardLR4
Maximum transfer distance10000 m
Tx power (min)-7 dBmW
Tx power (max)2.3 dBmW
Networking standardsIEEE 802.3ba
Single-mode fiber (SMF) supportedYes
Ethernet LANYes
Power
Power consumption (typical)3.5 W


Product data sheet
Datasheet for Allied Telesis AT-QSFPLR4, EAN: 0767035206172

Questions & answers

What is the delivery time of Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF?

The article Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-QSFPLR4 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-QSFPLR4 ALLIED 40G QSFP+ LR4 SMF if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
