Allied Telesis AT-MMC2000/ST-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM ST connector

Your rating:
Average rating
product review for Allied Telesis AT-MMC2000/ST-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM ST connector
( 0 / 5 ) 0 ratings

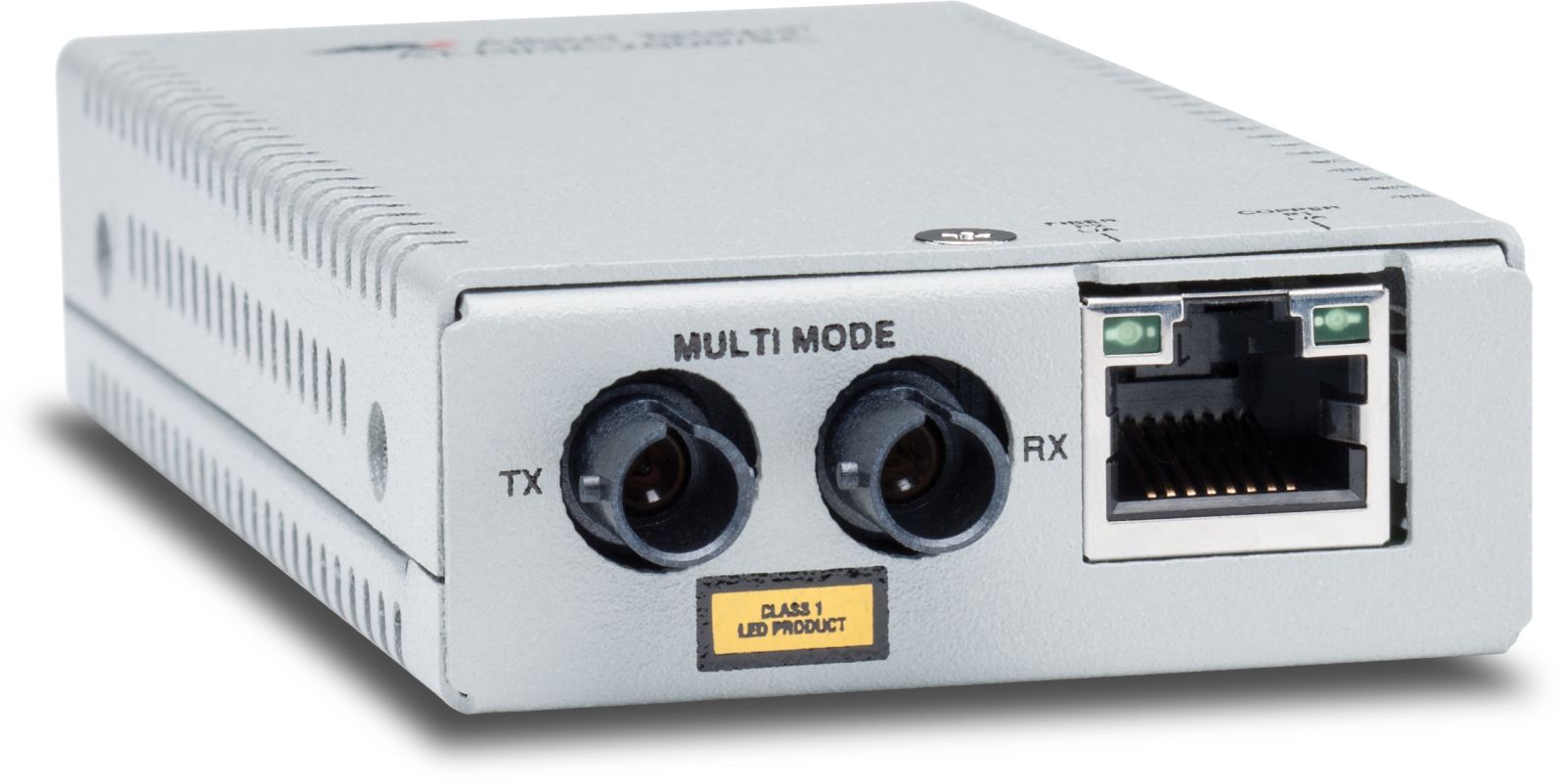

Allied Telesis AT-MMC2000/ST-960
This image may differ from the desired article.
146,96 EUR
( 174,88 EUR incl. VAT )
≈ £123.01  |  ≈ $161.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-MMC2000/ST-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM ST connector
Datasheet:file_download Download
Lieske Part No.:1541050
Mfg Part No: AT-MMC2000/ST-960
UPC/EAN: 0767035218625
Weight:0.52 kg
Type:PERP

Product information for Allied Telesis AT-MMC2000/ST-960:

The Allied Telesis AT-MMC2000/ST-960 is a media converter of the PERP series, designed for use in Gigabit Ethernet networks. It serves to convert Ethernet signals over copper cables (RJ-45) into optical signals over multi-mode fibre cables with ST connectors. The maximum data transfer rate is 1000 Mbit/s, with the converter supporting input interfaces for 10Base-T, 100Base-TX, and 1000Base-T, and providing the 1000Base-SX standard interface on the output side. The conversion takes place in full-duplex mode using store-and-forward technology, ensuring error-free data transmission. Support for jumbo frames up to 10000 bytes enables more efficient data transmission for large packets, particularly in server or storage environments.

Applications

The converter is suitable for use in corporate networks, especially in environments with high requirements for bandwidth and reach. It is commonly used to connect switches, routers, or servers with fibre cables to extend the range of Ethernet connections. The maximum transmission distance is 500 metres when using multi-mode fibre cables with a core diameter of 50/125 µm or 62.5/125 µm. The wavelength of the optical signal is 850 nm, typical for 1000Base-SX systems. The operating temperature of 0 to 50 °C and storage temperature of -30 to 70 °C make the converter suitable for indoor use, and it can also be used in industrial environments with moderate temperature conditions.

Functions and Features in Detail

The converter features one RJ-45 port for copper connection and two optical fibre ports with ST connectors. LED indicators for LAN, power, and system allow visual monitoring of the operating status. The Auto MDI/MDI-X function automatically detects the correct cabling and eliminates the need for crossover cables. VLAN support according to IEEE 802.1Q allows network segmentation based on VLAN IDs, which is important for network administration. Power supply is via 12 V DC, with power consumption in standard operation at 1.7 W. Support for Power over Ethernet (PoE) enables power delivery over the network cable, simplifying installation and reducing the need for additional power sources.

Technology Explained Simply

The converter acts as a bridge between copper and fibre cables. It receives data packets via the RJ-45 cable, converts them into optical signals, and transmits them over the fibre cable. The conversion occurs at a wavelength of 850 nm, optimized for short to medium distances in multi-mode operation. The store-and-forward technology ensures that the entire data packet is received, checked, and then forwarded, enhancing data integrity. Jumbo frames support reduces the number of packets during large data transfers and improves network efficiency. The Auto MDI/MDI-X function automatically detects whether a straight or crossed connection is required, simplifying installation.

Compatibility and Accessories

The converter is compatible with standard Gigabit Ethernet networks and can be connected to any device supporting the input interfaces 10Base-T, 100Base-TX, or 1000Base-T. On the fibre side, it is designed for multi-mode fibre cables with ST connectors. The use of fibre cables with a core diameter of 50/125 µm or 62.5/125 µm is intended. The conversion takes place in the 1000Base-SX standard, commonly used for short to medium distances in corporate environments. Power supply is via 12 V DC, with the PoE function enabling power delivery over the network cable. The converters are available in the AT-MMC2000 series, with various variants featuring different fibre connectors (e.g. SC, LC, SP).

Mounting and Installation

Installation is performed by connecting to a network device via RJ-45 and to a fibre cable via ST connector. Power supply is via an external 12 V DC power supply or via PoE. The LED indicators assist during installation by visually displaying the operating status. The operating temperature of 0 to 50 °C requires installation in a climate-controlled room. The maximum altitude of 3048 m above sea level is approved for operation, which may be relevant for high-altitude applications.

Operational Advantages

The converter enables cost-effective extension of Ethernet connections over fibre cables, increasing the range from 100 metres (copper) to up to 500 metres (fibre). PoE support reduces the need for additional power supplies. Jumbo frames support improves efficiency when transferring large data volumes. VLAN support enables flexible network segmentation. LED indicators simplify diagnostics and maintenance. Compliance with standards such as FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI, CE, EN55024, EN61000-3-2, and EN61000-3-3 ensures electromagnetic compatibility and safety. The delivery includes user manual, operating instructions, and quick installation guide.

Certification and Safety

The converter meets the requirements of FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI, and is certified with CE, EN55024, EN61000-3-2, EN61000-3-3. These certifications guarantee electromagnetic compatibility and operational safety. Compliance with the standard EN60950-1 (TUV) and UL 60950-1 (C UL US) ensures electrical safety. The laser safety standard EN60825 is also met, which is relevant for safe handling of the optical component.

Product Colour and Dimensions

The converter has a grey finish and is compact in design with a width of 549 mm, depth of 101.6 mm, and height of 21.8 mm. Weight is 170 g. The compact form factor allows flexible mounting, e.g. in rack systems or on walls. The operating environment is limited to indoor use, with operating humidity between 5 and 95 %. Storage humidity is 5 to 95 %.

Certificates
SafetyFCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
CertificationCE, EN55024, EN61000-3-2, EN61000-3-3
Features
LED indicatorsLAN, Power, System
Product colourGrey
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface10Base-T, 100Base-TX, 1000Base-T
Converter output interface1000Base-SX
Networking standardsIEEE 802.1Q
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Fiber ethernet cabling technology1000BASE‑SX
Jumbo frames10000
Duplex systemFull
Jumbo frames supportYes
VLAN supportYes
Auto MDI/MDI-XYes
Store-and-forwardYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
User guideYes
ManualYes
Quick installation guideYes
Performance
Maximum transfer distance500 m
Wavelength850 nm
Fiber mode structureMulti-mode
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Tx power (min)-9.5 dBmW
Tx power (max)4 dBmW
Rx power (min)-17 dBmW
Rx power (max)-3 dBmW
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity2
Fiber optic connectorST
DC-in jackYes
Power
Input voltage12 V
Input current0.14 A
Output voltage0.14 V
Power consumption (typical)1.7 W
Power over Ethernet (PoE)Yes
Weight & dimensions
Width549 mm
Depth101.6 mm
Height21.8 mm
Weight170 g


Product data sheet
Datasheet for Allied Telesis AT-MMC2000/ST-960, EAN: 0767035218625
