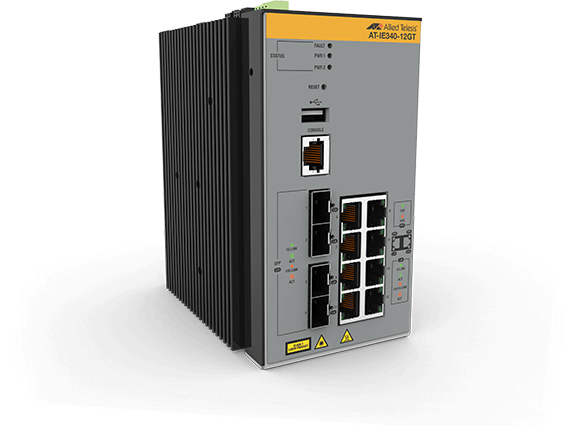

Allied Telesis AT-IE340-12GT-80 ALLIED L3 Industrial Ethernet Switch 8x 10/100/1000-T 4x SFP Ports
|
918,86 EUR 957,68 EUR |
|
|
( 1.093,44 EUR incl. VAT ) ≈ £773.68 | ≈ $1,031.88 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1538707 |
|---|---|
| Mfg Part No: | AT-IE340-12GT-80 |
| UPC/EAN: | 0767035218984 |
| Weight: | 2.7 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-IE340-12GT-80:
| Certificates | |
| Certification | CE, FCC, ICES, RCM, TEC8, UL, VCCI RoHS, China-RoHS, WEEE |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.8 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | EN 55024, EN 61000-6-2 |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| Traffic shaping | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 81.9 BTU/h |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power | |
| DC input voltage | 18 - 57 V |
| Power consumption (max) | 24 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 139 mm |
| Height | 153 mm |
| Weight | 2.34 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-IE340-12GT-80 ALLIED L3 Industrial Ethernet Switch 8x 10/100/1000-T 4x SFP Ports?
The article Allied Telesis AT-IE340-12GT-80 ALLIED L3 Industrial Ethernet Switch 8x 10/100/1000-T 4x SFP Ports is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-IE340-12GT-80 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-IE340-12GT-80 ALLIED L3 Industrial Ethernet Switch 8x 10/100/1000-T 4x SFP Ports always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-IE340-12GT-80 ALLIED L3 Industrial Ethernet Switch 8x 10/100/1000-T 4x SFP Ports if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
