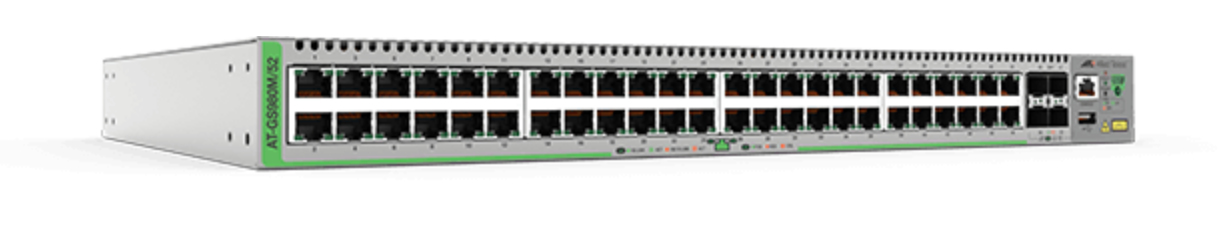

Allied Telesis AT-GS980M/52-50 ALLIED 48x port 10/100/1000T 4x port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord
|
1.057,16 EUR |
|
|
( 1.258,02 EUR incl. VAT ) ≈ £884.84 | ≈ $1,182.96 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1151630 |
| Mfg Part No: | AT-GS980M/52-50 |
| UPC/EAN: | 0767035212388 |
| Weight: | 6.36 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-GS980M/52-50:
| Certificates | |
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 5.5 µs |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Electromagnetic compatibility | EN55024 |
| Rack mounting | |
| LED indicators | |
| Wall mountable | |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
| Management features | |
| Switch type | Managed |
| MIB support | SNMP MIB |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 160 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Switching optical modules type | 100 Gigabit Ethernet |
| Packaging data | |
| Package width | 575 mm |
| Package depth | 445 mm |
| Package height | 150 mm |
| Package weight | 6.4 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 39 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Fiber optic connector | SFP |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.0 A |
| Power consumption (typical) | 47 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP |
| Routing protocols | RIP, RIP-2 |
| Security | |
| DHCP features | DHCP client, DHCP snooping |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-GS980M/52-50 ALLIED 48x port 10/100/1000T 4x port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord?
The article Allied Telesis AT-GS980M/52-50 ALLIED 48x port 10/100/1000T 4x port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS980M/52-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-GS980M/52-50 ALLIED 48x port 10/100/1000T 4x port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS980M/52-50 ALLIED 48x port 10/100/1000T 4x port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
