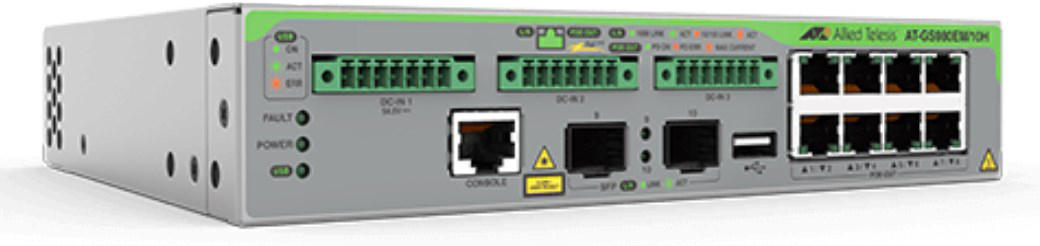

Allied Telesis AT-GS980EM/10H ALLIED L3 Gigabit Switch 8-port 10/100/1000T PoE++ 2-port 100/1000X SFP 3-port DC-Input One designated PWR300 requires at least
|
1.099,95 EUR |
|
|
( 1.308,94 EUR incl. VAT ) ≈ £920.66 | ≈ $1,230.84 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1539482 |
| Mfg Part No: | AT-GS980EM/10H |
| UPC/EAN: | 0767035217796 |
| Weight: | 2.775 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-GS980EM/10H:
| Certificates | |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 5.4 µs |
| Latency (1 Gbps) | 3 µs |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast MAC address table | 2000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Policy-based routing | |
| Flow control support | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Packaging data | |
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 2.7 kg |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | OSPF, RIP |
| Security | |
| DHCP features | DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| Authentication | Guest VLAN |
| Authentication type | AAA |
| Access Control List (ACL) | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
