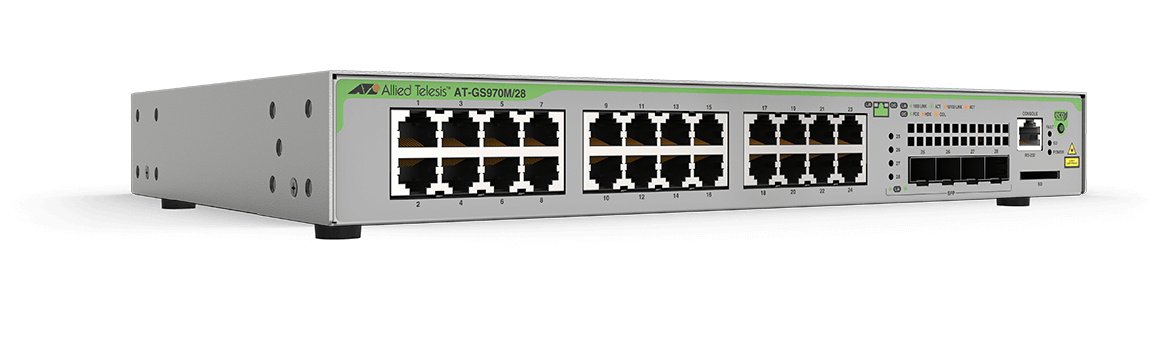

Allied Telesis AT-GS970M/28-50 ALLIED 24x 10/100/1000T ports and 4x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord
|
-11% 618,05 EUR 693,74 EUR |
|
|
( 735,48 EUR incl. VAT ) ≈ £520.40 | ≈ $694.07 plus delivery charges: 53,00 € |
|
| Made to order · Expected to be available from 07.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 792313 |
| Mfg Part No: | AT-GS970M/28-50 |
| UPC/EAN: | 0767035211329 |
| Weight: | 3.93 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-GS970M/28-50:
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 8.6 µs |
| Latency (1 Gbps) | 4.3 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 2048 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 303 BTU/h |
| Packaging data | |
| Package width | 530 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Package weight | 6.35 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 42 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 520 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
