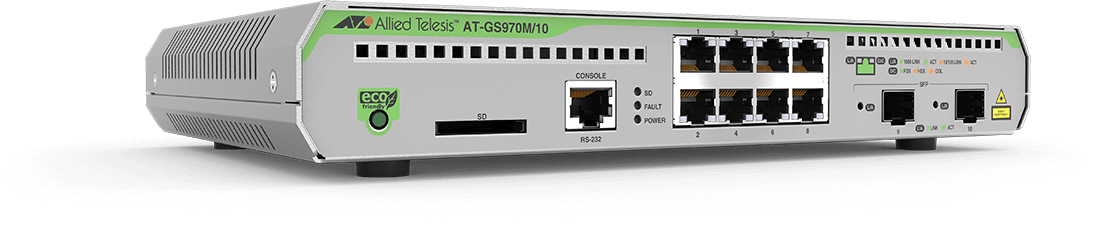

Allied Telesis AT-GS970M/10-50 ALLIED 8x 10/100/1000T ports and 2x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord
|
-22% 342,25 EUR 437,71 EUR |
|
|
( 407,28 EUR incl. VAT ) ≈ £288.17 | ≈ $384.35 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 822826 |
| Mfg Part No: | AT-GS970M/10-50 |
| UPC/EAN: | 0767035211527 |
| Weight: | 1.875 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-GS970M/10-50:
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black, Grey |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Link aggregation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 55 BTU/h |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Included power plug types | EU |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 2.85 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Export Control Classification Number (ECCN) | 5A992A |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Power | |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 265 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.5 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-GS970M/10-50 ALLIED 8x 10/100/1000T ports and 2x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord?
The article Allied Telesis AT-GS970M/10-50 ALLIED 8x 10/100/1000T ports and 2x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS970M/10-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-GS970M/10-50 ALLIED 8x 10/100/1000T ports and 2x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS970M/10-50 ALLIED 8x 10/100/1000T ports and 2x combo ports 100/1000X SFP or 10/100/1000T Copper Fixed one AC power supply EU Power Cord if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
