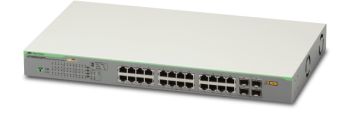

Allied Telesis AT-GS950/52PS V2-50
ALLIED Gigabit webSmart switch 24x 10/100/1000-T PoE+ 24x 10/100/1000-T 4x SFP Ports single fixed PSU EU Power Code
|
-23% 869,50 EUR 1.131,57 EUR |
|
|
( 1.034,71 EUR incl. VAT ) ≈ £732.12 | ≈ $976.45 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1979301 |
| Mfg Part No: | AT-GS950/52PS V2-50 |
| UPC/EAN: | 0767035208725 |
| Weight: | 7.305 kg |
| Certificates | |
| Certification | IEC 68-2-36 IEC 68-2-29 IEC 68-2-32 UL94V-0 RoHS WEEE UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / CUL |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.65 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Number of static routes | 256 |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Rack mounting | |
| Reset button | |
| Management features | |
| Switch type | Managed |
| MIB support | Y |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 256 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 97.59 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-SX, 1000BASE‑LX |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Manual | |
| Packaging data | |
| Mounting brackets included | |
| Rubber feet | |
| Resource CD | |
| Performance | |
| Memory type | DRAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | FX, SX |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 28.6 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Supported network protocols | HTTP |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) rules | 240 |
| Security algorithms | SNMP, SSL/TLS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Weight & dimensions | |
| Width | 450 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-GS950/52PS V2-50 ALLIED Gigabit webSmart switch 24x 10/100/1000-T PoE+ 24x 10/100/1000-T 4x SFP Ports single fixed PSU EU Power Code?
The article Allied Telesis AT-GS950/52PS V2-50 ALLIED Gigabit webSmart switch 24x 10/100/1000-T PoE+ 24x 10/100/1000-T 4x SFP Ports single fixed PSU EU Power Code is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS950/52PS V2-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-GS950/52PS V2-50 ALLIED Gigabit webSmart switch 24x 10/100/1000-T PoE+ 24x 10/100/1000-T 4x SFP Ports single fixed PSU EU Power Code always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS950/52PS V2-50 ALLIED Gigabit webSmart switch 24x 10/100/1000-T PoE+ 24x 10/100/1000-T 4x SFP Ports single fixed PSU EU Power Code if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
