Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter

Your rating:
Average rating
product review for Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter
( 5 / 5 ) 3 ratings

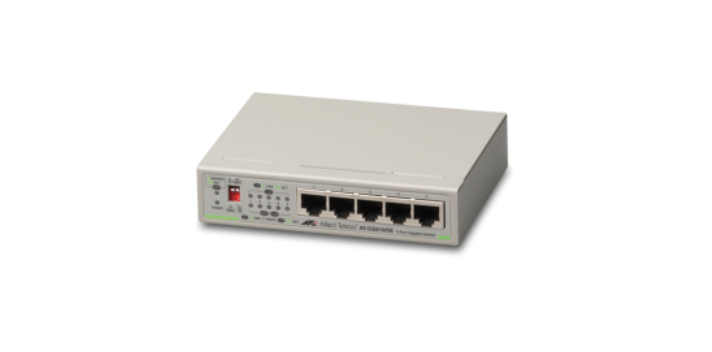

Allied Telesis AT-GS910/5E-50
This image may differ from the desired article.
98,33 EUR
( 117,01 EUR incl. VAT )
≈ £81.91  |  ≈ $107.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: 2 pieces
1x Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter
Lieske Part No.:360517
Mfg Part No: AT-GS910/5E-50
UPC/EAN: 0767035207353
Weight:0.78 kg
Type:CPNT

Product information for Allied Telesis AT-GS910/5E-50:

The Allied Telesis AT-GS910/5E-50 is an unmanaged Gigabit Ethernet switch with five RJ-45 ports, designed for use in small networks, at the workplace, or in decentralized applications. As an unmanaged switch, it requires no complex configuration and provides immediate network connectivity without additional settings. The device class Gigabit Ethernet (10/100/1000) enables data transfer rates up to 1000 Mbit/s per port, supporting demanding applications such as video transmission or graphic-intensive programs. The device features an external power supply connection (DC connector) and is thus flexible in power supply application.

Applications
This switch is suitable for small office networks, home networks, or as an extension in existing network infrastructures where a simple, reliable connection is required. Due to the operating temperature range of 0 to 50 °C, it is also suitable for locations with moderate environmental conditions. The compact design with a width of 130 mm, depth of 101 mm, and height of 30 mm allows space-saving installation, for example on a desk or in a cabinet. The device is not intended for rack mounting.

Functions and Equipment in Detail
The AT-GS910/5E-50 offers five Gigabit Ethernet ports with Auto-Negotiation, automatically setting the highest possible transmission rate between 10, 100, and 1000 Mbit/s. The Auto MDI/MDI-X function automatically detects whether a crossover or straight-through cable is required, simplifying cabling. The data flow control (full-duplex flow control) ensures stable data transmission and prevents overloads. Additionally, the switch supports broadcast storm control to avoid network disruptions caused by uncontrolled data floods.

Technology Explained Simply
The routing/switching capacity of 10 Gbit/s and a forwarding rate of 7.4 Mpps ensure high performance sufficient for smooth operation in small networks. The MAC address table with 2000 entries enables efficient management of network devices. Support for jumbo frames increases efficiency when transmitting large data packets. The cable length detection identifies the length of the connected cable and optimizes power supply accordingly, contributing to energy savings. The Link-down Power Savings function reduces power consumption when a port is inactive.

Compatibility and Accessories
The switch is compatible with network standards IEEE 802.3, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. It is designed for use in Ethernet networks and does not support PoE functions. Devices in the GS910 series are available in various port configurations, with the AT-GS910/5E-50 representing the 5-port variant with external power supply. The Loop Protection function detects network loops and protects the network from broadcast storms. The BPDU filtering prevents forwarding of Spanning-Tree Protocol packets that may occur due to unwanted loops.

Mounting and Installation
Installation is tool-free and requires no special configuration. The ports are clearly labeled, and LED indicators show the status of connections. The device is fanless and therefore operates quietly. Power supply is via the external power supply connector, which is supplied with an EU power adapter. Mounting is on a flat surface; rack mounting is not intended.

Advantages in Operation
The switch features low power consumption (max. 3.6 W) and long service life. The environmentally friendly design with energy-efficient chipset and low energy consumption reduces operating costs and CO₂ emissions. The lifetime limited warranty underscores the product’s reliability. The combination of high performance, low energy consumption, and easy handling makes the AT-GS910/5E-50 a solid solution for small networks.

Data transmission
Switching capacity10 Gbit/s
Throughput7.4 Mpps
MAC address table2000 entries
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Jumbo frames supportYes
Design
Product colourGrey
Rack mountingNo
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeUnmanaged
Network
Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Broadcast storm controlYes
Cable length detectionYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Power connectorDC-in jack
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)3.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Security
Loop protectionYes
BPDU filtering/protectionYes
Weight & dimensions
Width130 mm
Depth101 mm
Height30 mm
Weight720 g


Questions & answers

What is the delivery time of Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter?

The article Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS910/5E-50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS910/5E-50 ALLIED 5-Port 10/100/1000TX unmanaged switch with external power supply EU power adapter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
