Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches

Your rating:
Average rating
product review for Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches
( 5 / 5 ) 3 ratings

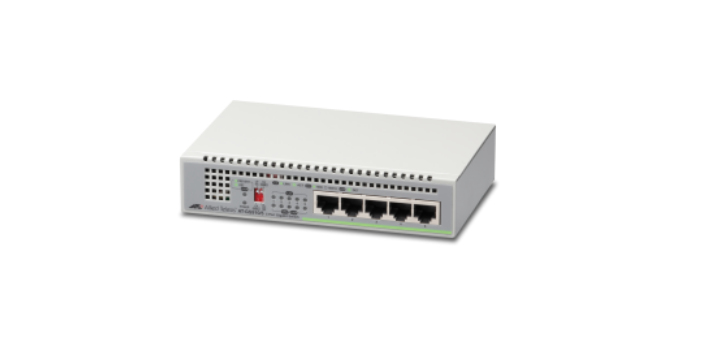

Allied Telesis AT-GS910/5-50
This image may differ from the desired article.
82,55 EUR
( 98,23 EUR incl. VAT )
≈ £68.76  |  ≈ $90.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches
Lieske Part No.:698710
Mfg Part No: AT-GS910/5-50
UPC/EAN: 0767035207391
Weight:1.04 kg
Type:CPNT

Product information for Allied Telesis AT-GS910/5-50:

The Allied Telesis AT-GS910/5-50 is an unmanaged Gigabit Ethernet switch with five RJ-45 ports, designed for use in small networks, at workstations, or in decentralized applications. It provides a simple, maintenance-free connection to existing network infrastructures without complex configuration. The device features an internal power supply and is housed in a compact, robust metal housing designed for long-term use. The operating temperature ranges from 0 to 50 °C, enabling use in indoor environments under normal conditions.

Applications

The switch is suitable for small office networks, home applications, or as an extension in existing networks where fast, reliable data transmission without management functions is sufficient. It is particularly suited for applications with high bandwidth requirements such as video transmission, graphic design, or industrial design applications, as it offers wire-speed performance. The compact design without rack mounting allows flexible placement on desks or in small server rooms.

Functions and Equipment in Detail

The AT-GS910/5-50 features five Gigabit Ethernet ports (10/100/1000 Mbit/s) that automatically detect the optimal transmission rate (auto-negotiation) and set the correct connection (MDI/MDI-X). The ports support data flow control (full-duplex flow control) and broadcast storm control to prevent network disruptions caused by packet flooding. An integrated Loop Detection Frame (LDF) detects unexpected network loops and automatically disables affected ports to prevent network disruptions. After the loop is resolved, the ports are automatically restored.

Technology Explained Simply

The switching capacity is 10 Gbit/s, enabling a high packet forwarding rate — at 1 Gbit/s, this is 1,488,000 packets per second. The MAC address table with 2000 entries ensures efficient routing within the network. Support for Jumbo Frames allows the transmission of larger data packets, improving network efficiency. Power supply is via an internal power unit with an input range of 100 to 240 V AC and 50 to 60 Hz. The maximum power consumption is 3.1 W, highlighting the energy efficiency of the device. The device operates without a fan (fanless), ensuring quiet and disturbance-free operation.

Compatibility and Accessories

The switch is compatible with network standards IEEE 802.3, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. It supports cable length detection to determine the length of the connected cable and integrated power-saving functions such as link-down mode and power minimization to reduce energy consumption. The BPDU passthrough function enables forwarding of Spanning Tree Protocol packets, which is important for compatibility with other network devices.

Mounting and Installation

The switch is not designed for rack mounting and is operated as a desktop device. Installation is done by simply connecting the network cables to the RJ-45 ports and connecting the power supply. No additional settings or configurations are required, as it is an unmanaged device. The robust metal housing construction provides mechanical protection and heat dissipation.

Advantages in Operation

The AT-GS910/5-50 offers a reliable, maintenance-free network connection with high speed and low power consumption. Integrated protection functions such as loop detection and broadcast storm control enhance network security. The quiet, fanless operation and compact design make it a discreet solution for workstations. The lifespan is supported by a lifetime limited warranty, emphasizing the manufacturer’s reliability. Energy efficiency reduces operating costs and lowers CO2 emissions.

Data transmission
Switching capacity10 Gbit/s
Throughput7.4 Mpps
MAC address table2000 entries
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Jumbo frames supportYes
Design
Product colourGrey
Rack mountingNo
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeUnmanaged
Network
Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Broadcast storm controlYes
Cable length detectionYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)3.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Security
Loop protectionYes
BPDU filtering/protectionYes
Weight & dimensions
Width160 mm
Depth105 mm
Height35 mm
Weight500 g


Questions & answers

What is the delivery time of Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches?

The article Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS910/5-50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS910/5-50 ALLIED GS910 Series - Unmanaged Layer 2 Gigabit SmartSwitches if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
