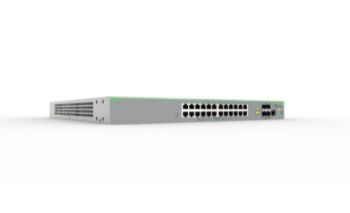

Allied Telesis AT-FS980M/28DP-30 24X10/100T POE+ 4X100/1000X SFP
|
1.201,56 EUR 1.205,16 EUR |
|
|
( 1.429,86 EUR incl. VAT ) ≈ £1,002.10 | ≈ $1,342.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1531945 |
| Mfg Part No: | AT-FS980M/28DP-30 |
| UPC/EAN: | 0767035216676 |
| Weight: | 0 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-FS980M/28DP-30:
| Data transmission | |
| Switching capacity | 12.8 Gbit/s |
| Forwarding rate | 9.52 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Traffic classification | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Routing entries | 16 |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 1800 BTU/h |
| Performance | |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 49 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 4 |
| Power | |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Power consumption (max) | 520 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 375 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP snooping |
| Security algorithms | 3DES, AES, DES, HTTPS, MD5, SHA-1, SHA-2, SHA-256, SNMP, SSH-2, SSL/TLS |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 425 mm |
| Height | 44 mm |
