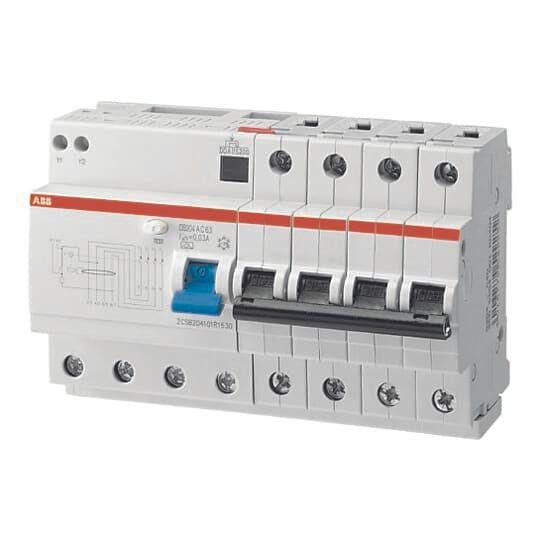

ABB 2CSR254101R1407 DS204A-K40/0.03 FI/LS combination

Your rating:
Average rating
product review for ABB 2CSR254101R1407 DS204A-K40/0.03 FI/LS combination
( 4.5 / 5 ) 27 ratings
ABB 2CSR254101R1407
This image may differ from the desired article.
ABB 2CSR254101R1407ABB 2CSR254101R1407ABB 2CSR254101R1407
427,50 EUR
( 508,72 EUR incl. VAT )
≈ £357.82  |  ≈ $469.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 11 workdaysinfo_outline
1x ABB 2CSR254101R1407 DS204A-K40/0.03 FI/LS combination
Lieske Part No.:114454
Mfg Part No: 2CSR254101R1407
UPC/EAN: 8012542931904
Weight:0.78 kg
Type:DS204 A-K40/0.03
Graduated prices net
From piecesPrice per pieces
4417,88 EUR
8408,26 EUR
12398,64 EUR
16389,03 EUR

Product information for ABB 2CSR254101R1407:

The ABB residual current circuit breaker DS204 A-K40/0.03 is an FI/LS combination switch (RCBO) designed for use in electrical installations in residential, commercial, and industrial applications. It combines the functions of a circuit breaker (LS) and a residual current circuit breaker (FI) in one device, ensuring both personal and property protection. The protection functions include protection against indirect contact, additional protection with a rated residual current of 30 mA, and fire protection with a rated residual current of 300 mA. The device complies with product standard IEC/EN 61009-1 (VDE 0664-20) and is suitable for use in accordance with DIN VDE 0100-410 and DIN VDE 0100-530.

Applications

The DS204 A-K40/0.03 is designed for use in electrical installations requiring protection against overload, short circuit, and fault currents. It is suitable for 4-pole circuits and provides protection for sinusoidal alternating currents as well as for pulsating currents with a smooth direct fault current component up to 6 mA. Application areas range from residential buildings to commercial and industrial facilities, with certifications enabling worldwide use.

Functions and Equipment in Detail

The device has a rated current of 40 A and a rated residual current of 30 mA. The tripping characteristic is K, meaning the switch responds to overloads with a current increase above the rated current, with tripping beginning at approximately 1.3 times the rated current. The number of protected poles is 4, with the neutral conductor not switching. The combination of FI and LS functions enables an integrated protection function that detects and disconnects both electrical overloads and fault currents.

Technology Explained Simply

The switch is designed as an RCBO (Residual Current Breaker with Overcurrent protection), meaning it detects and disconnects both fault currents and overload and short-circuit currents. The breaking capacity is 6 kA, which is sufficient for use in residential and similar applications. The rated switching capacities are Icn = 6,000 A for the RCD function (residual current protective device) and Icu = 10 kA for the MCB function (circuit breaker), with the latter being relevant for industrial applications.

Compatibility and Accessories

Various accessories are available for this device, extending its functionality. These include the S2C-S/H6R auxiliary switch with 1 changeover contact for LS and FI, as well as the S2C-H6R auxiliary switch 1 changeover contact system per M compact. These auxiliary switches enable remote control or signal output of the switch, allowing integration into more complex control and monitoring systems.

Mounting and Installation

The switch is designed for modular installation and has dimensions of 93 mm (height), 105 mm (width), and 69 mm (depth). Installation requires compliance with applicable VDE standards and correct wiring of the poles. The number of combinations of residual current switch/circuit breaker is 1, meaning the device is installed as a single unit.

Operational Advantages

The DS204 A-K40/0.03 offers a compact solution for protecting electrical installations, as it integrates the functions of two devices in one. The combination of FI and LS protection reduces space requirements in the distribution box and simplifies installation. Protection against overload, short circuit, and fault currents increases the safety of the installation. Certifications for worldwide use increase flexibility in planning and installation.

General
Rated current40
Rated fault current30
Number of protected poles4
Release characteristicK
Breaking capacity6
Number of earth leakage circuit breakers1
Height93
Width105
Depth69
Concurrently switching N-neutralno
Wiring on terminal stripno
