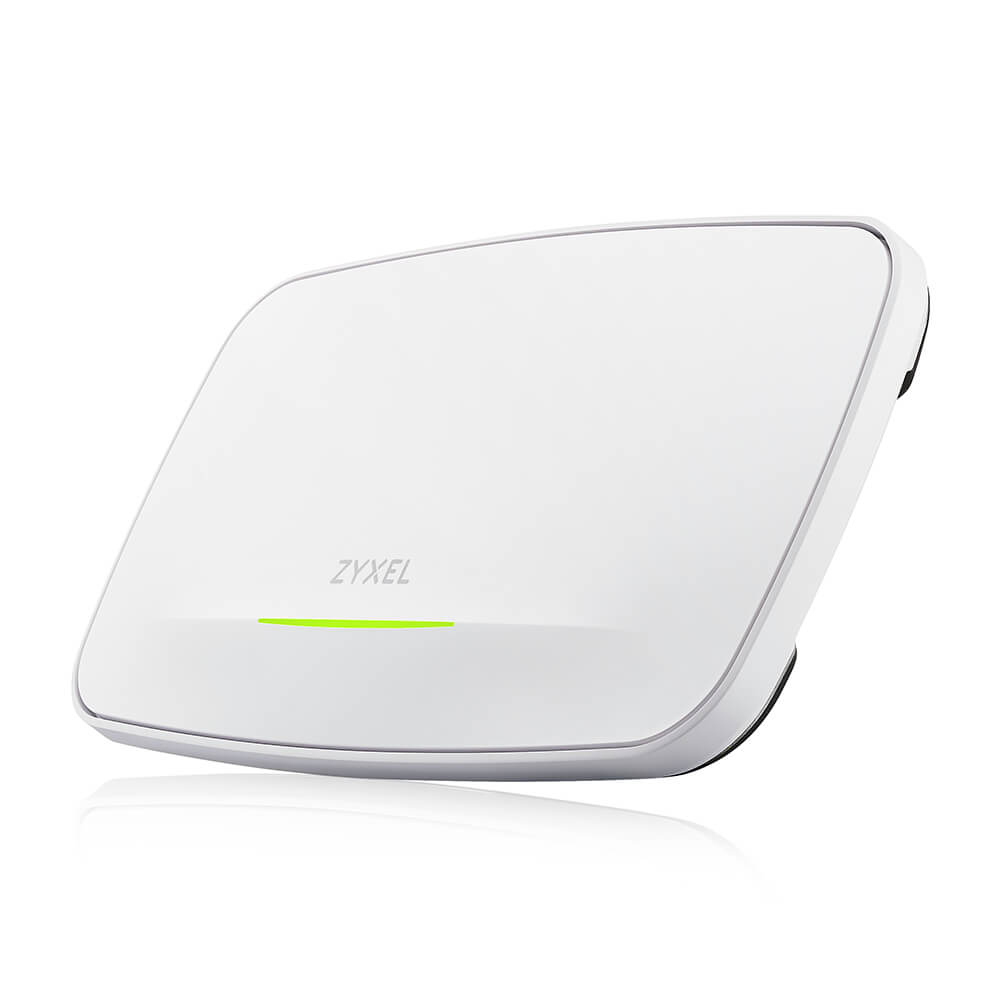

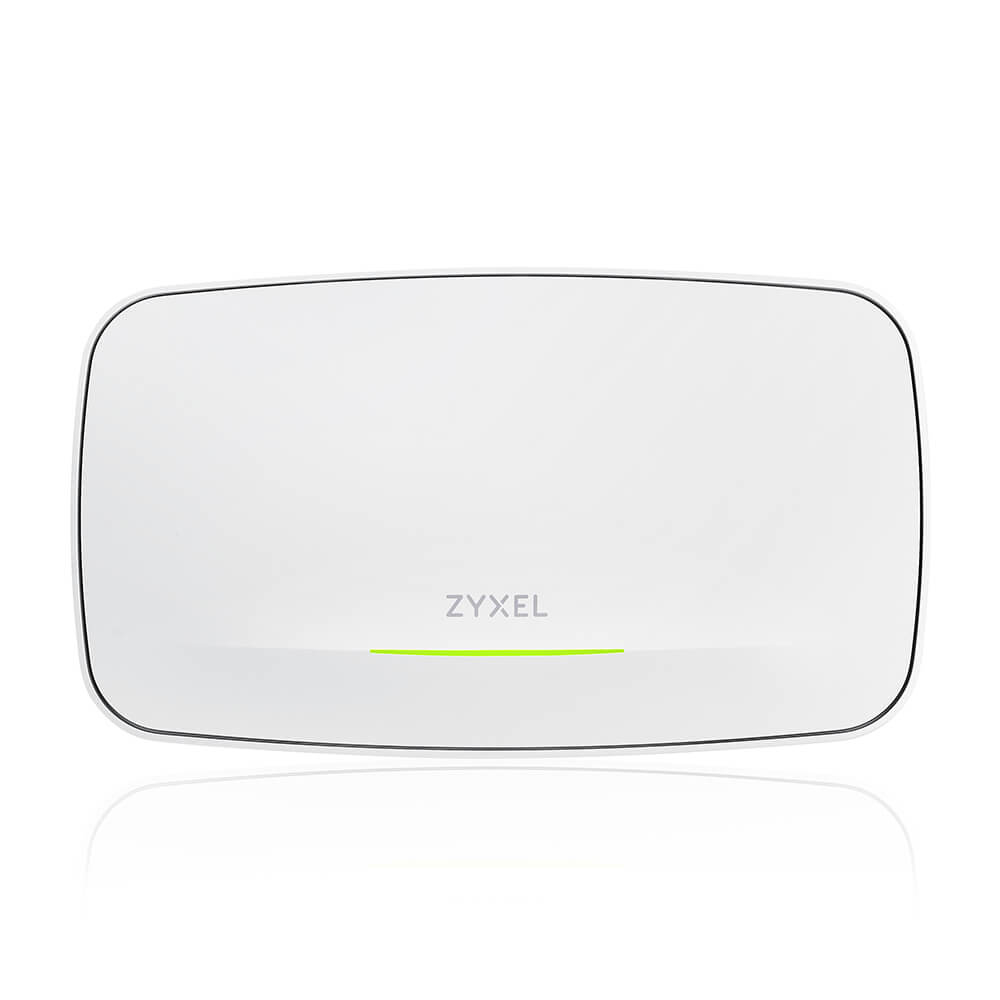

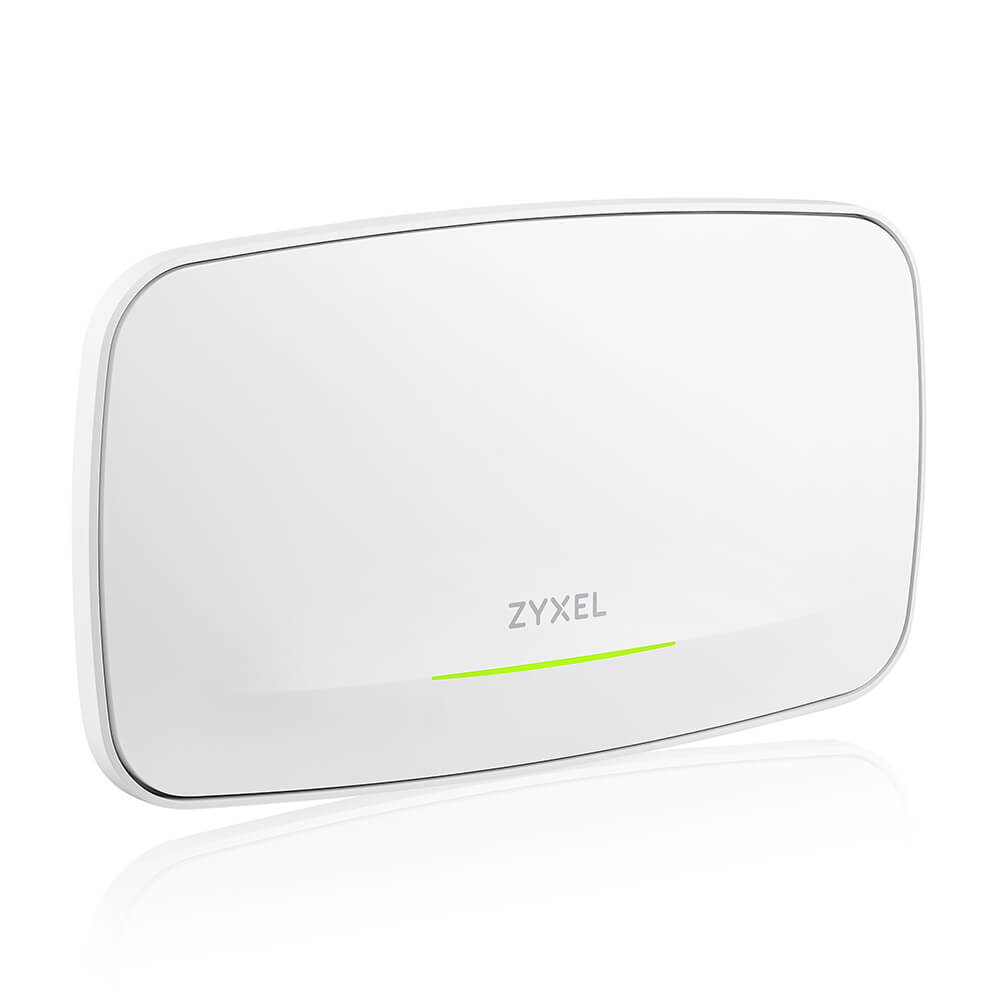

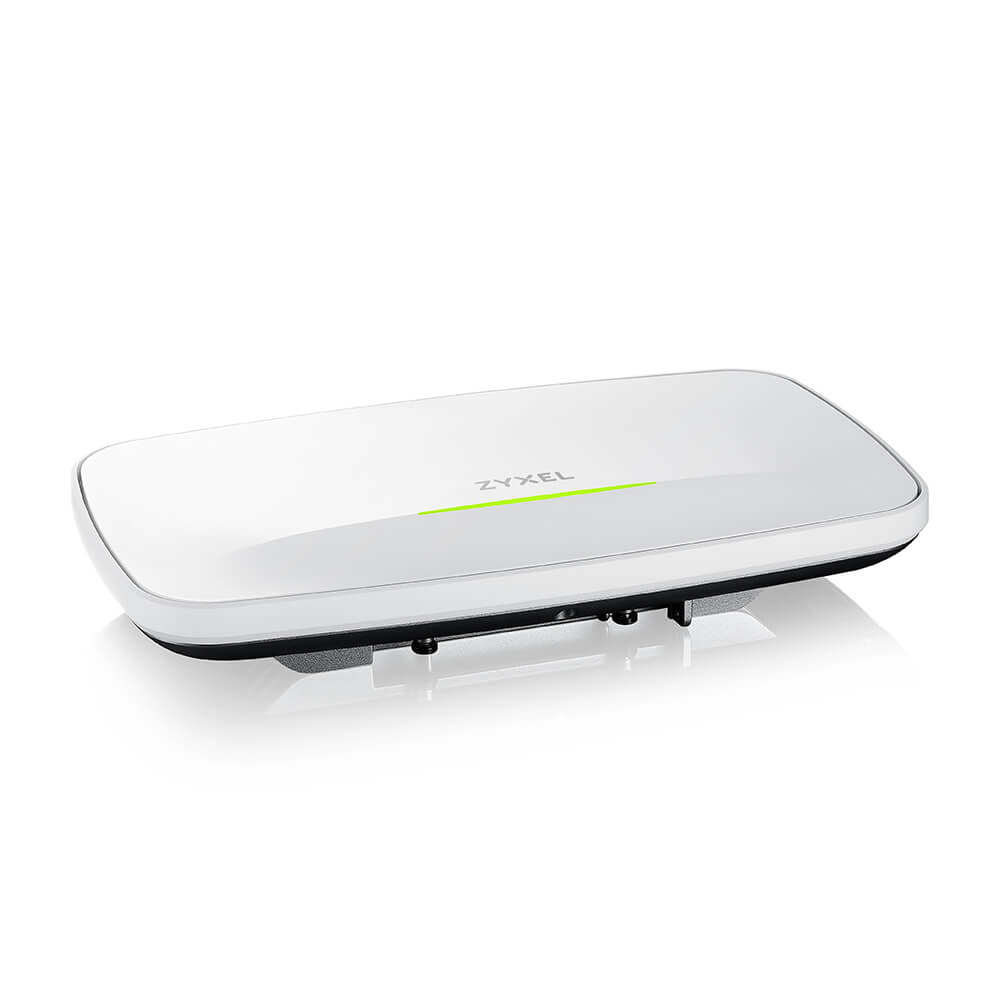

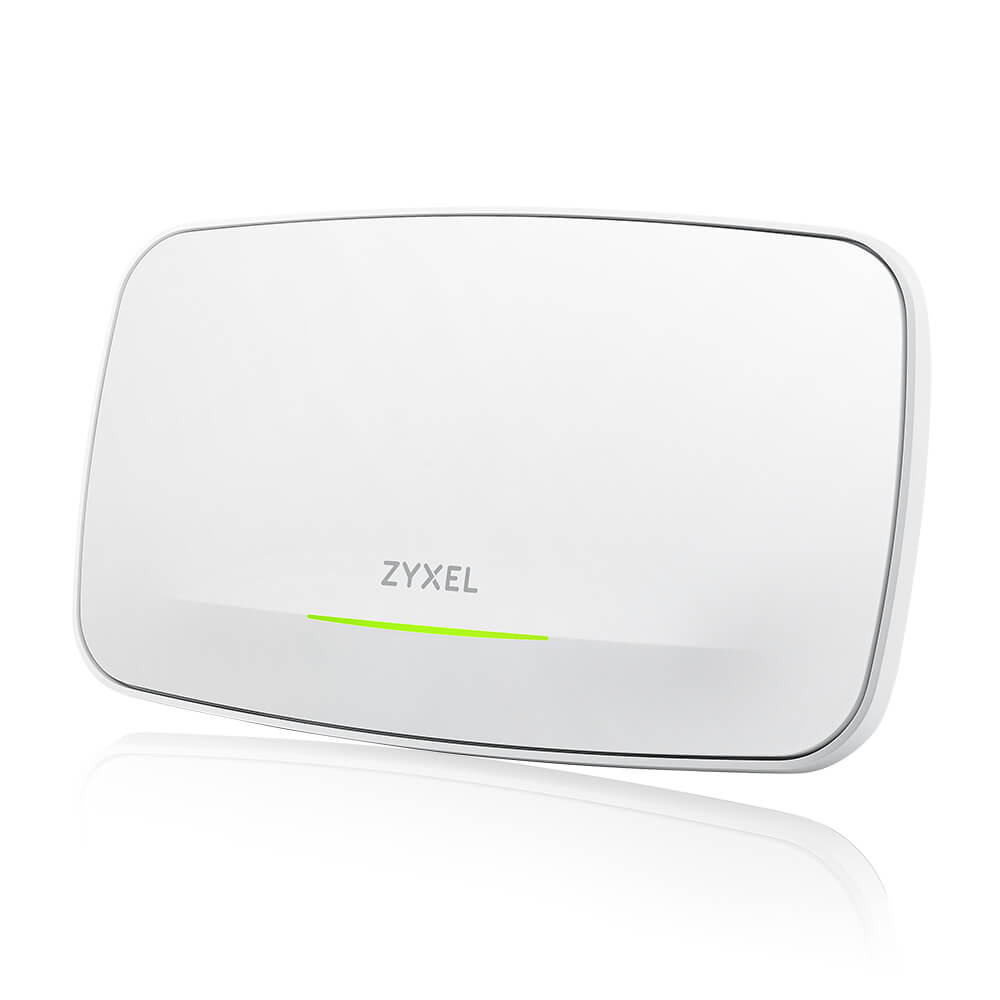

Zyxel WBE660S 802.11be Wifi 7 NebulaPro Access Point content_copy

Featuring a Qualcomm quad-core processor and robust, durable hardware, the WBE660S delivers lightning-fast WiFi 7 speeds of up to 22 Gbps and a significant increase in capacity. Combined with Zyxel Nebula's comprehensive range of management and security enhancements, it ensures high connectivity and reliability for demanding enterprise connections.

Highlights

• Tri-band access point delivers lightning-fast speeds of up to 22 Gbps and lower latency for real-time responsiveness
• 1x 10GbE uplink port delivers WiFi 7 speeds and enables true 10GbE super broadband

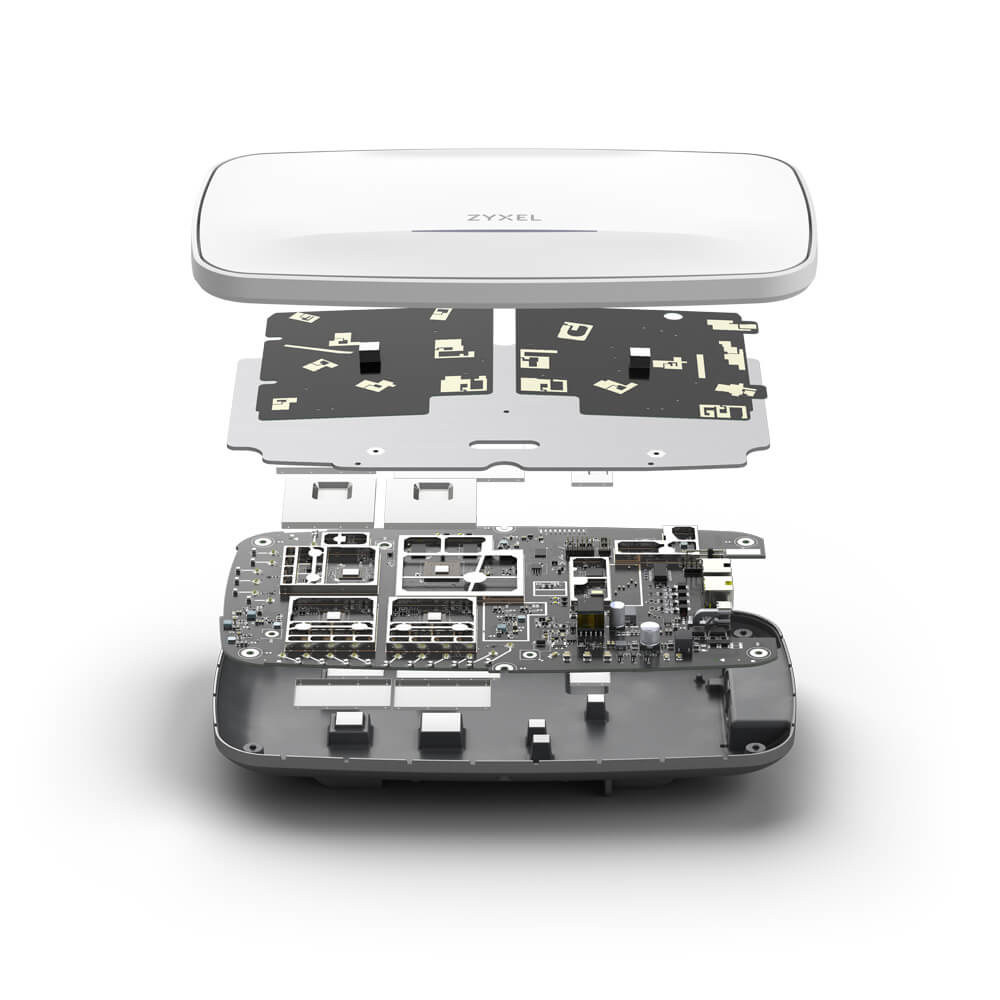

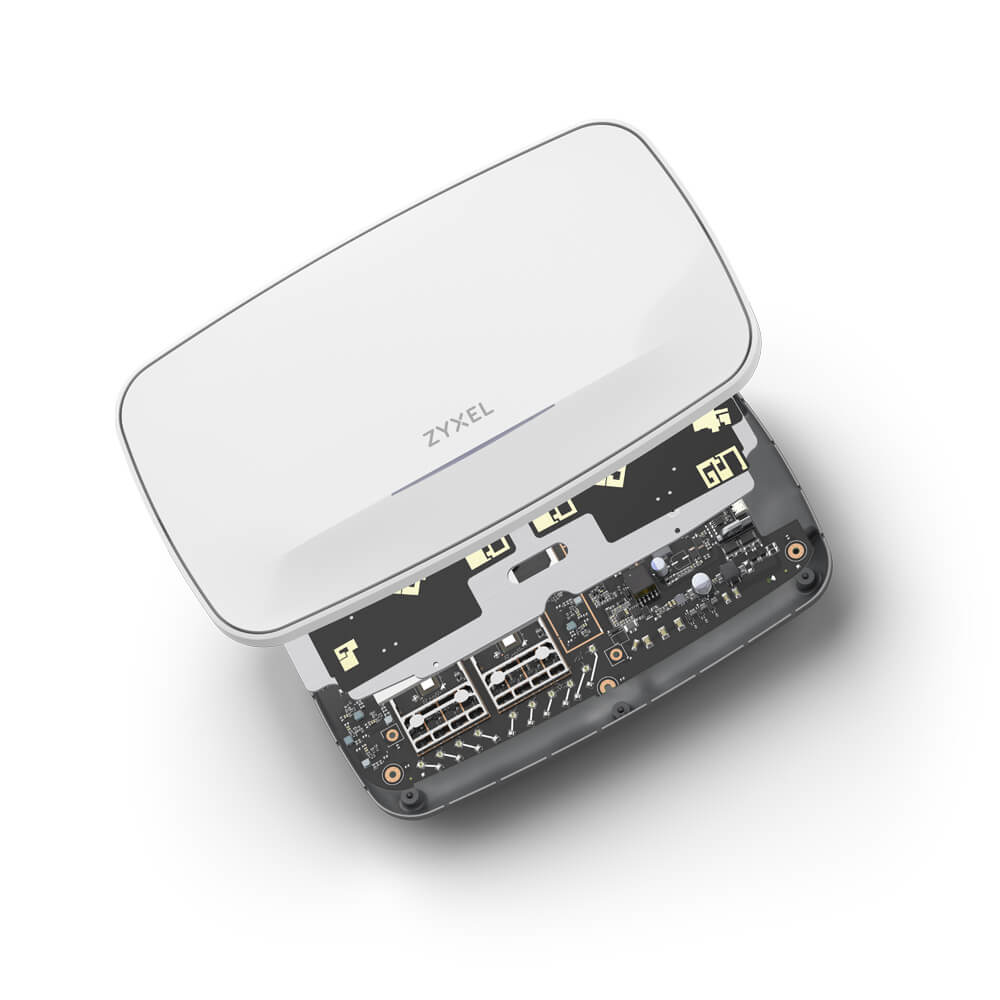

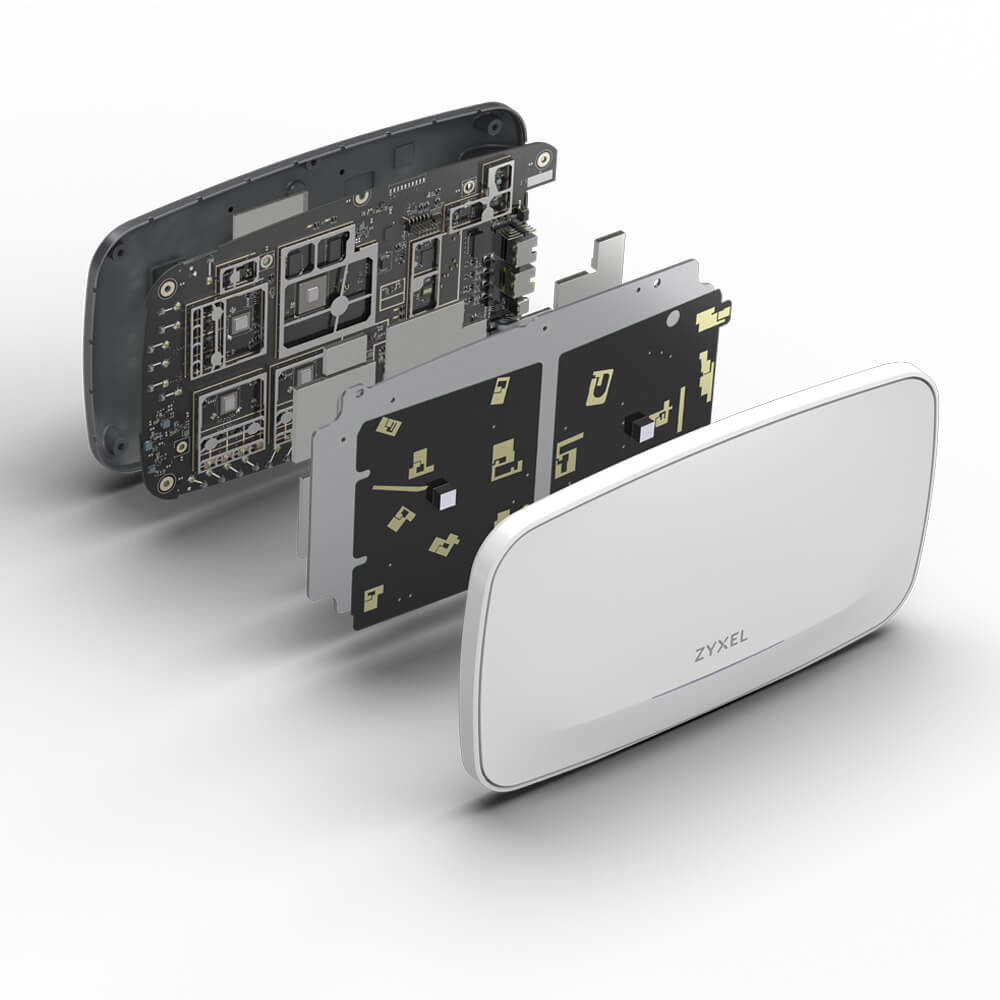

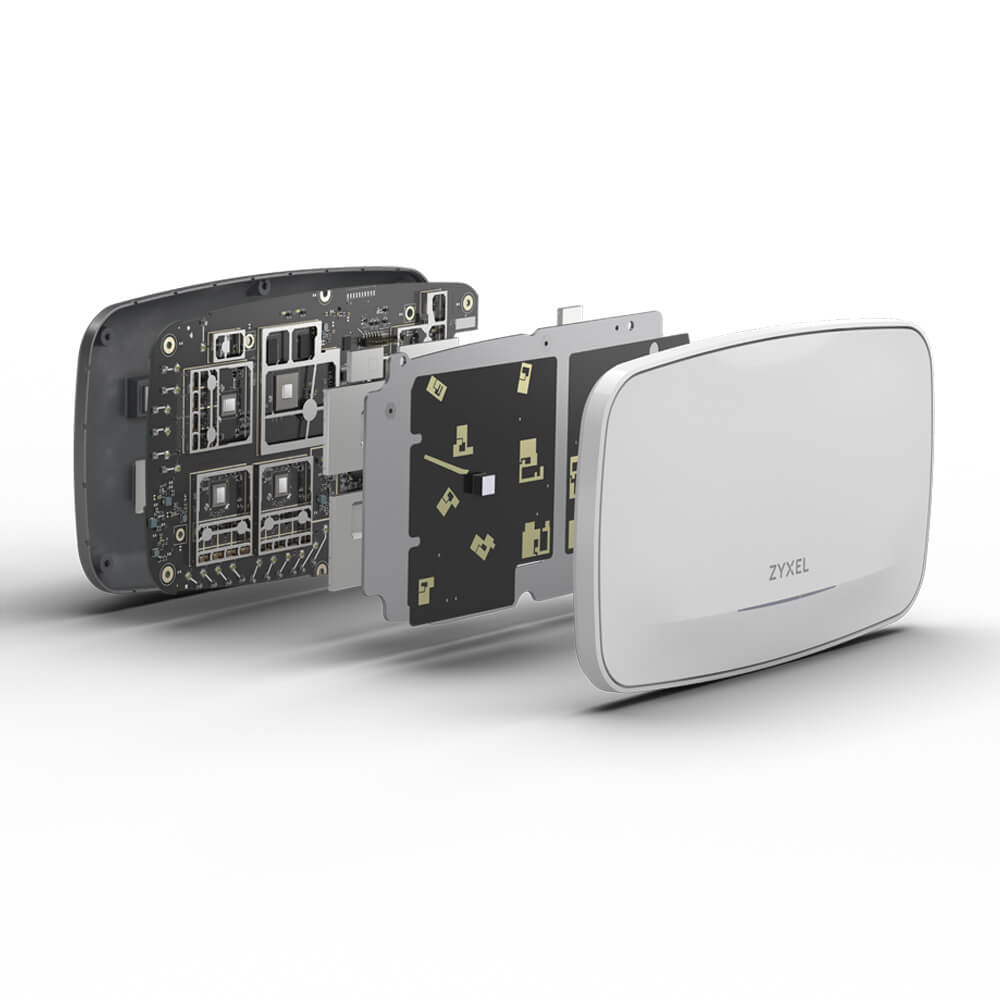

• Smart antennas to reduce interference and boost WiFi 7 performance
• Advanced cellular coexistence minimizes interference from 4G/5G cellular networks
• Can be powered via PoE bt (PoE++) or USB Type-C charger (45W) with flexible power options
• NebulaFlex Pro allows users to switch between standalone, on-premises controller or intuitive Nebula cloud management modes as needed

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, Small IT and telecommunications equipment B2C

Specifications

• Operating temperature max: 45 °C
• Operating temperature min: 0 °C
• Area of application: Indoor

Shipping

• WEEE: 40153029

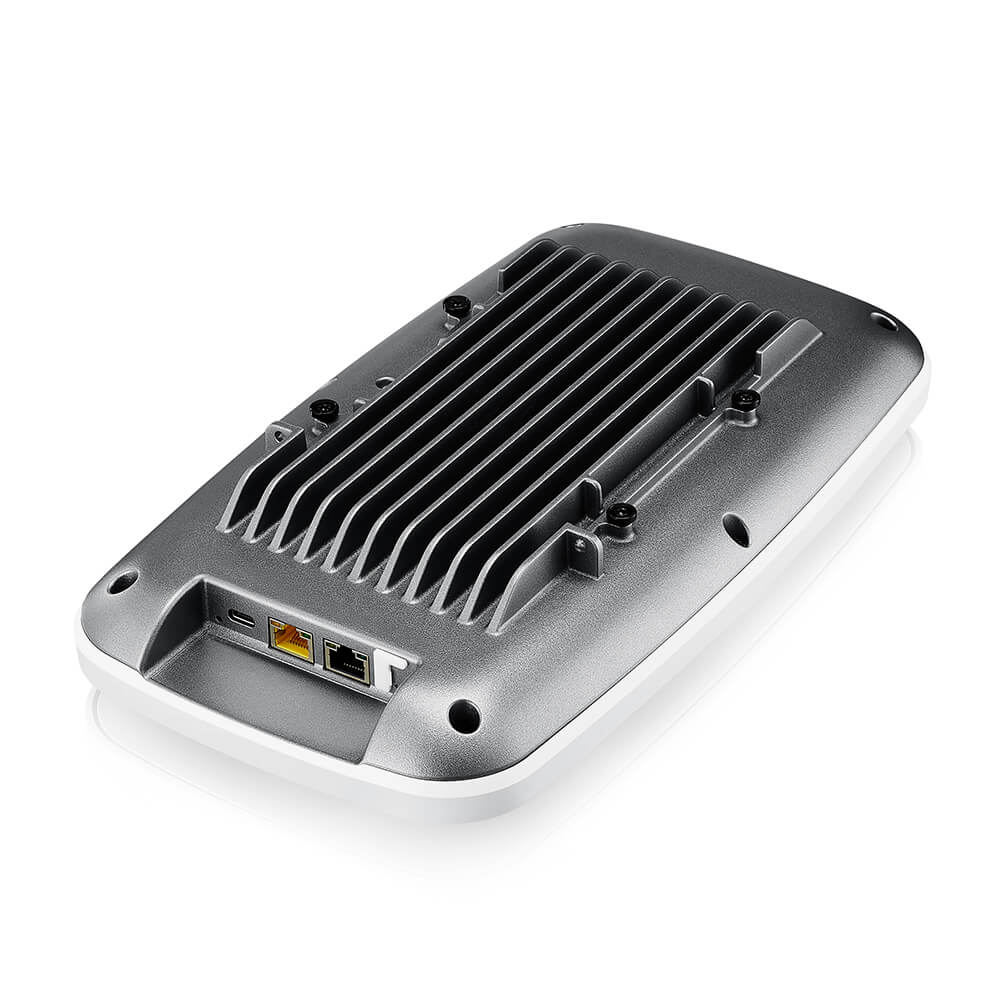

Connections

• Connection: USB-C, RJ45
• Number of USB ports: 1

Power supply

• PoE standard: PoE - 802.3af, PoE+ - 802.3at, PoE++ - 802.3bt (Type 3)
• Power supply: optional
• Mains
• Power consumption during operation: 41 W

Antenna

• Antenna technology: internal
• Reception standard: WLAN
• Gain: 5 dbi

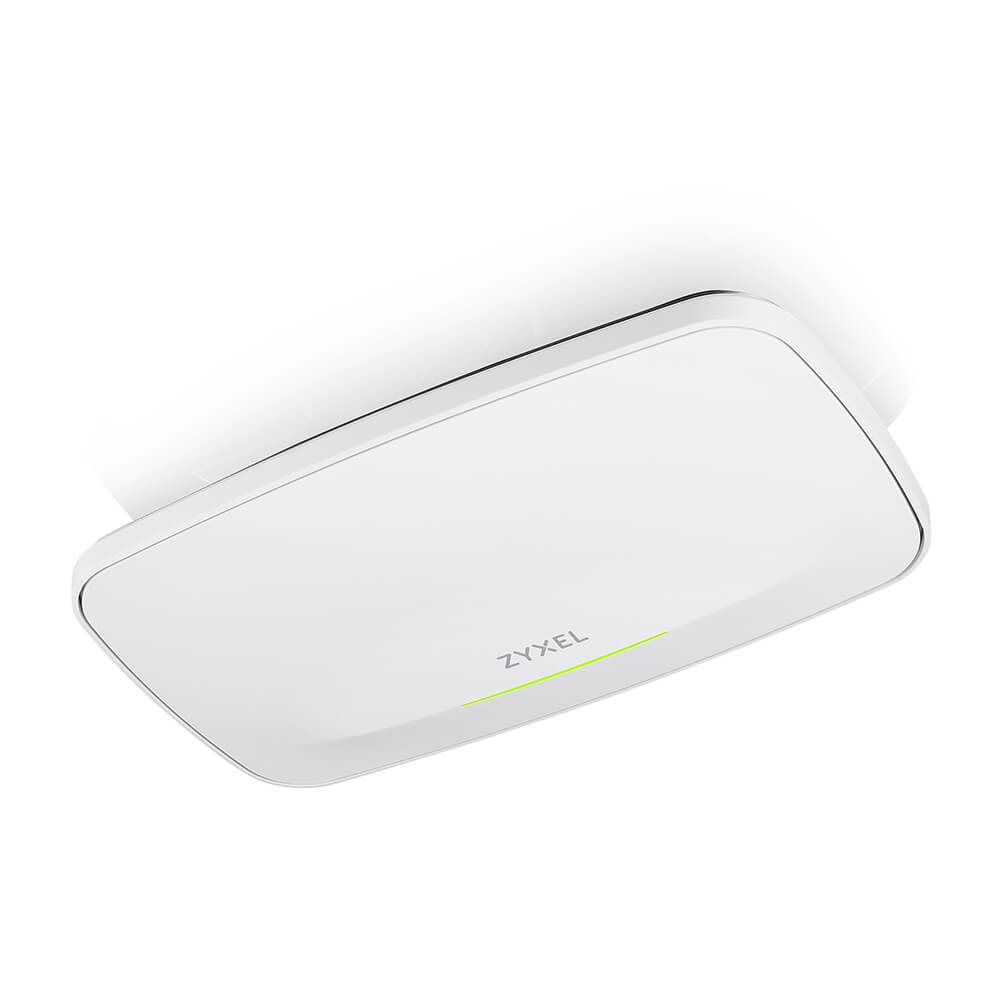

• Mounting type: Wall

Data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6, IEEE 802.11be - WiFi 7

Basic features

• Color: Gray
• Height: 56 mm
• Length/Depth: 178 mm
• Width: 310 mm
• Weight: 1.41 kg
• icecat Import: 2023/10/31

Scope of delivery

• ZyXEL WBE660S 802.11be WiFi 7 NebulaPro AccessPoint
• Mounting plate
• Mounting screws

Antenna
Antenna type	Internal
Design
Placement	Wall
Product colour	Grey
LED indicators
Features
Maximum data transfer rate	11530 Mbit/s
Maximum data transfer rate (2.4 GHz)	1376 Mbit/s
Maximum data transfer rate (5 GHz)	8646 Mbit/s
Maximum data transfer rate (6 GHz)	11530 Mbit/s
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
2.4 GHz
5 GHz
6 GHz
Wi-Fi Multimedia (WMM)/(WME)
VLAN support
Management features
Firmware upgradeable
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	377 mm
Package depth	231 mm
Package height	93 mm
Package weight	2.04 kg
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
DC voltage range	15 V
Input current	3 A
Power over Ethernet (PoE)
Security
Security algorithms	WEP, WPA, WPA2-PSK, WPA3
MAC address filtering
Weight & dimensions
Width	310 mm
Depth	178 mm
Height	56 mm
Weight	1.41 kg

---
