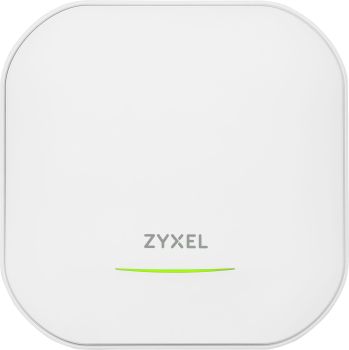

Zyxel NWA220AX-6E-EU0101F
WiFi 6E NebulaFex Access Point MU-MIMO
|
209,54 EUR |
|
|
( 249,35 EUR incl. VAT ) ≈ £176.43 | ≈ $235.31 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1974847 |
| Mfg Part No: | NWA220AX-6E-EU0101F |
| UPC/EAN: | 4718937628643 |
| Weight: | 0.79 kg |
Further Wireless DSL Router from ZyxelFurther products in category Wireless DSL Router
All products of Zyxel
Product information for Zyxel NWA220AX-6E-EU0101F:
Mit einer Geschwindigkeit von bis zu 5,4 Gbit/s ist der NWA220AXE-6E von Zyxel vollständig mit der WiFi 6E-Technologie der nächsten Generation für ultraschnelle Geschwindigkeiten und Verbindungen mit geringer Latenz ausgestattet.
Highlights
- 802.11axe-Accesspoint (4x4 in 6 GHz/ 5 GHz wählbar, 2x2 in 2,4 GHz) mit einer maximalen Datenrate von bis zu 5,4 Gbit/s
- Das Band Flex-Funkdesign kann je nach Konfiguration entweder 5 GHz oder 6 GHz unterstützen, um in Ihre 5-GHz-Abdeckung zu passen und die Verwendung von 6 GHz zukunftssicher zu machen
- Zyxel 6E Boost hilft, die Reichweite zu vergrößern und die Leistung des neuen Bands zu maximieren
- Dual-optimierte Antenne bietet optimale Funkmuster
- Wand- und Deckenmontage möglich
- NebulaFlex Pro bietet Benutzern die volle Flexibilität, um einfach zwischen Nebula Cloud-verwalteten, Controller-verwalteten und Standalone-Modi zu wechseln
- Ideal für Umgebungen mit hoher Gerätedichte
Produkttyp
- Accesspoint
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der IT- und TK-Technik B2C
Spezifikationen
- Betriebstemperatur max: 50 °C
- Betriebstemperatur min: 0 °C
- Einsatzgebiet: Indoor
Versand
- WEEE: 40153029
Anschlüsse
- Anschluss: RJ45
Stromversorgung
- PoE-Standard: PoE - 802.3af, PoE+ - 802.3at
- Netzteil: extern
- Leistungsaufnahme Betrieb: 21 W
Antenne
- Antennentechnologie: MIMO
- Empfangsstandard: WLAN
- Gewinn: 6 dbi
Datenübertragung
- WLAN Standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6, IEEE 802.11ax - WiFi 6E
Grundeigenschaften
- Farbe: Weiß
- Höhe: 42 mm
- Länge/Tiefe: 180 mm
- Breite: 180 mm
- Gewicht: 650 g
Lieferumfang
- ZyXEL NWA220AX-6E Wifi 6E NebulaFlex AccessPoint
- Montageplatte
- Montageschrauben
- Hinweistext Lieferumfang: Netzteil ist nicht im Lieferumfang enthalten.
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| LED indicators | |
| Features | |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Bandwidth | 0.16 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO type | Multi User MIMO |
| 2.4 GHz | |
| 5 GHz | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| Fast roaming | |
| VLAN support | |
| Band steering | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Packaging content | |
| Mounting kit | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Output voltage | 12 V |
| Output current | 2 A |
| Power supply | 21 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | 802.1x RADIUS, EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise |
| MAC address filtering | |
| Auto Wireless Distribution System (WDS) | |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 42 mm |
| Weight | 650 g |
