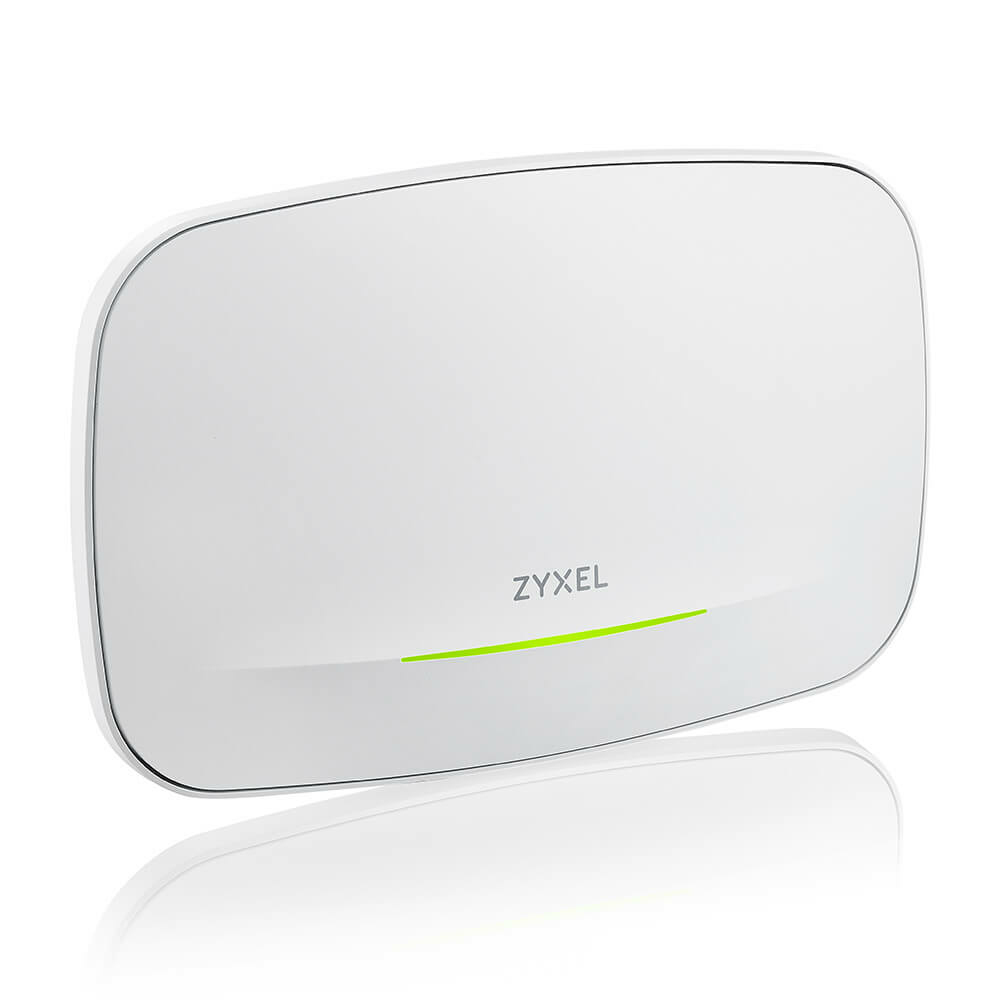

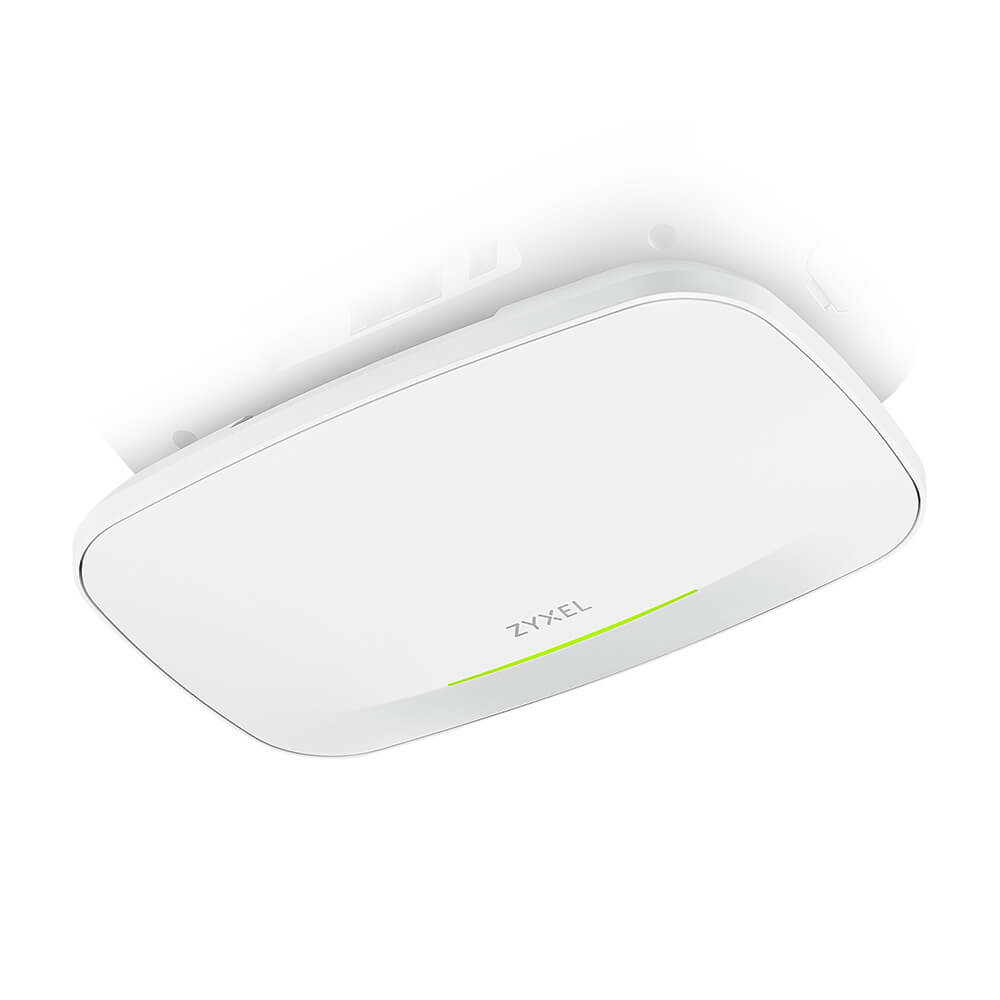

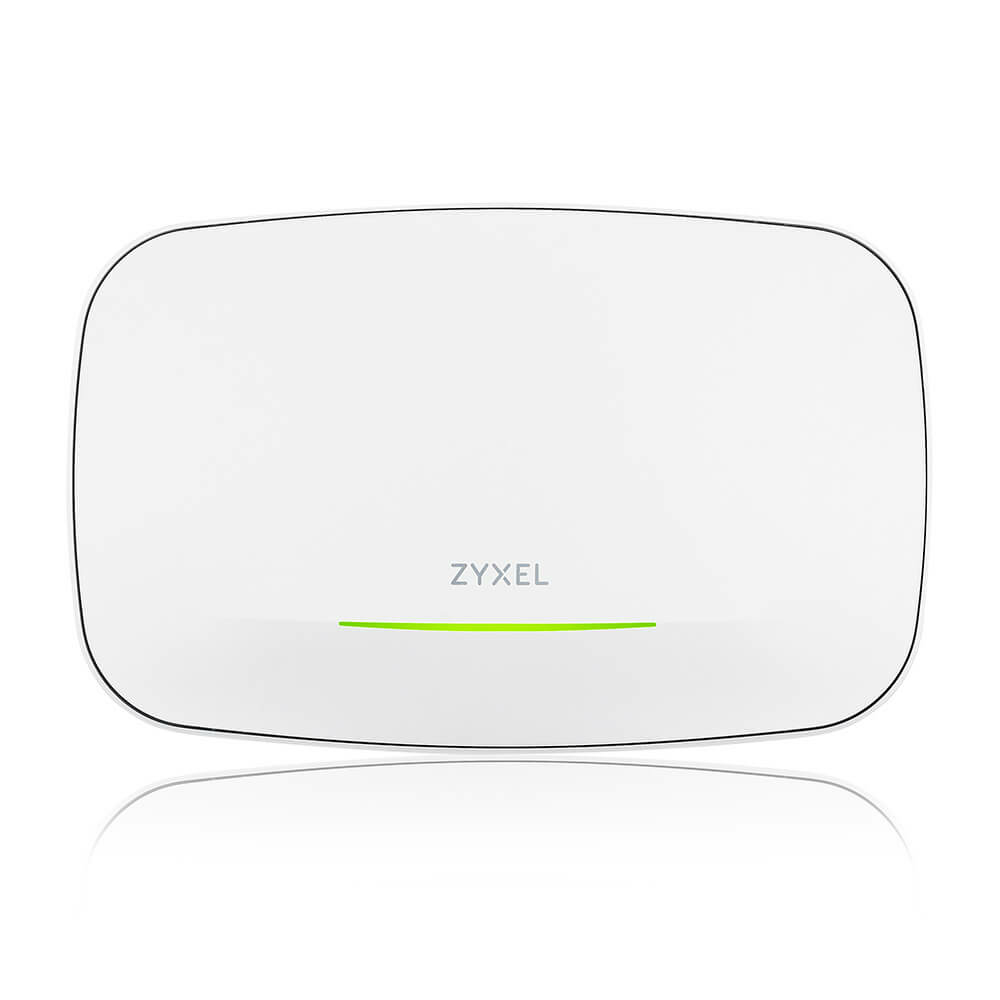

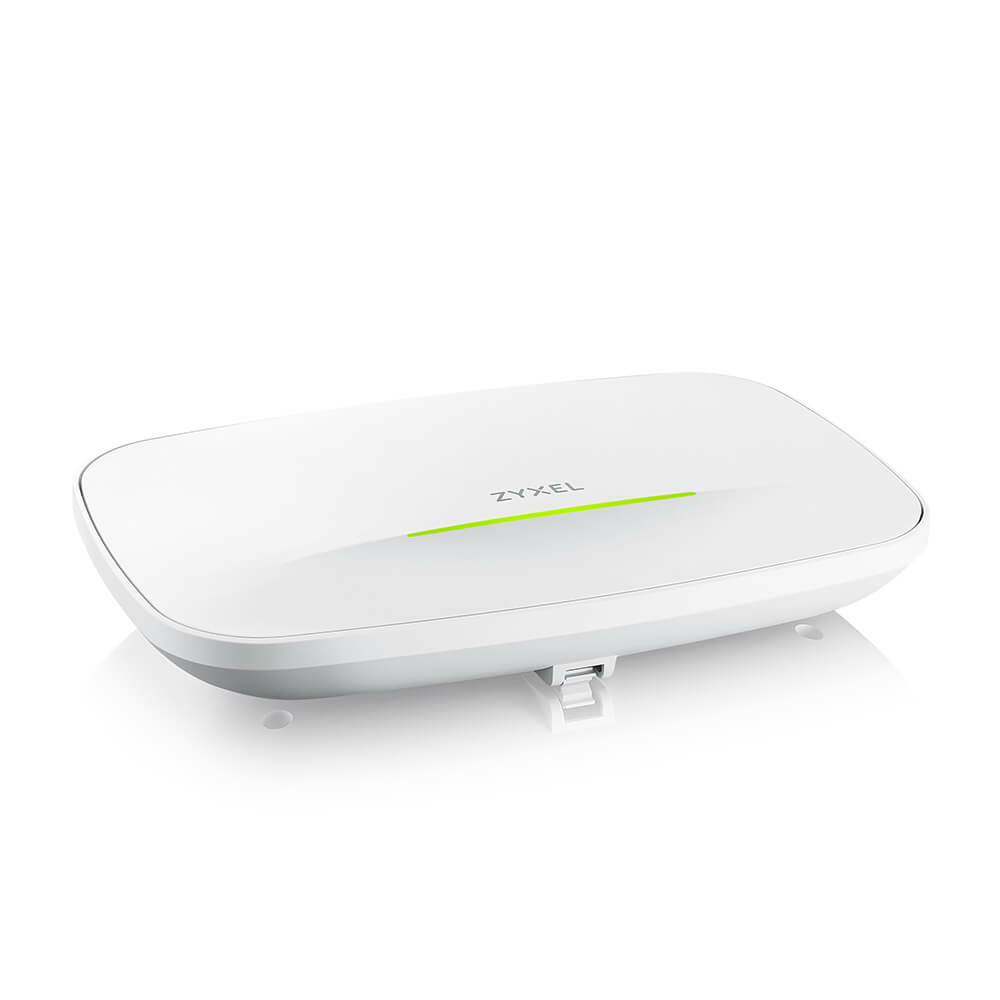

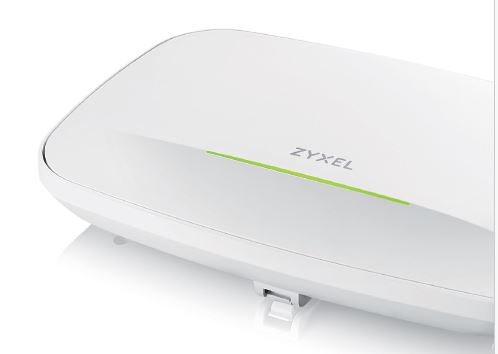

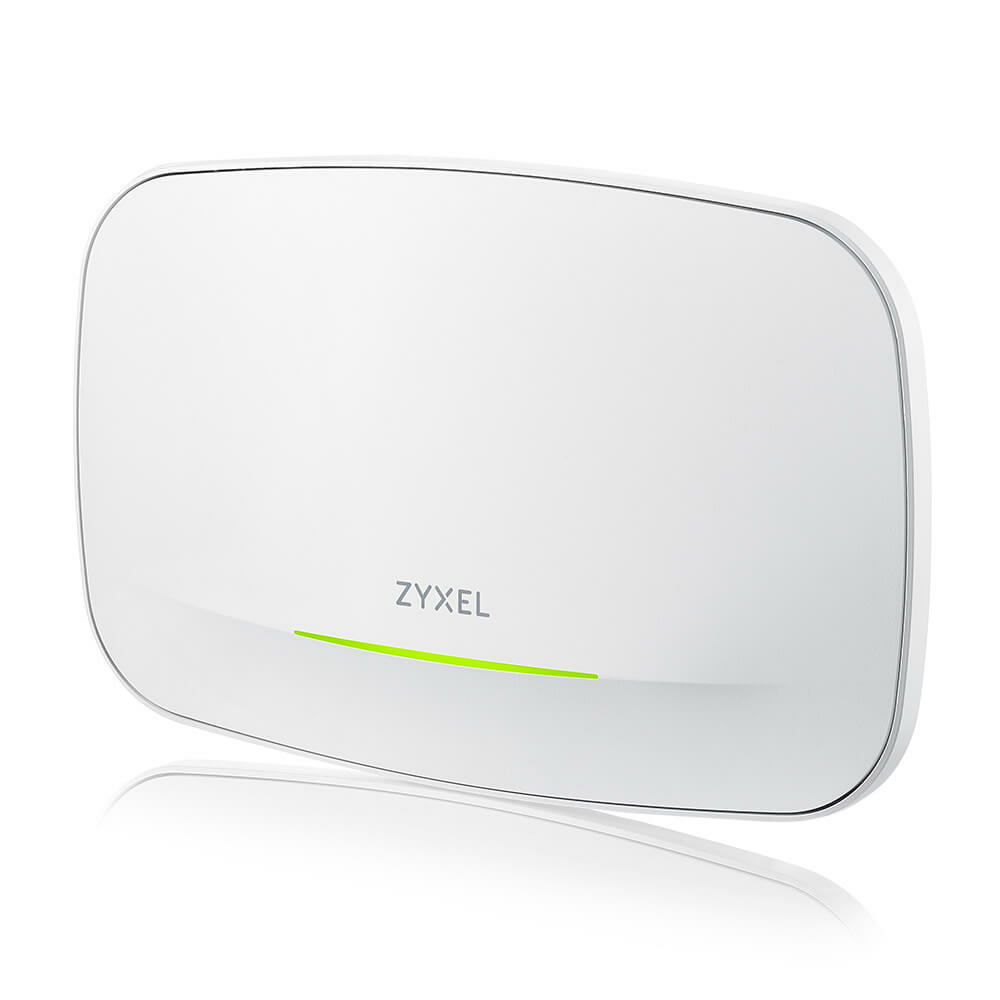

Zyxel NWA130BE 802.11be Wifi / NebulaFlex Access Point PoE+ content_copy

Designed specifically for modern work environments, the Zyxel NWA130BE is equipped with a Qualcomm quad-core CPU that ensures impressively fast WiFi 7 speeds of up to 11 Gbps and a noticeable increase in capacity. The two 2.5 Gigabit Ethernet ports not only offer a cost-effective way to easily upgrade to WiFi 7 performance, but also enable seamless integration into existing infrastructure without the need for complex re-cabling. Combined with Zyxel Nebula's extensive range of management and security innovations, the NWA130BE guarantees robust connectivity and reliability for the demanding needs of corporate environments in today's working world. Equipped with NebulaFlex technology, the NWA130BE offers users complete flexibility to seamlessly switch between standalone mode and the intuitive Nebula Cloud management mode as needed.

Highlights

• The BE11000 (2x2 in 2.4, 5 and 6 GHz) Tri-Radio Access Point offers extremely fast WiFi 7 speeds of up to 11 Gbps and lower latency for real-time responsiveness
• The 2 x 2.5G Ethernet ports enable seamless integration into existing infrastructure without re-wiring
• The advanced RF filter prevents interference between the 5 GHz and 6 GHz bands while ensuring performance in all channels
• Cellular Coexistence minimizes interference from 4G/5G cellular networks
• NebulaFlex allows users to seamlessly switch between standalone mode and the intuitive Nebula Cloud management mode when needed

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, Small IT and telecommunications equipment B2C

Specifications

• Operating temperature max: 50 °C
• Operating temperature min: 0 °C
• Application area: Indoor

Shipping

• WEEE: 40153029

Connections

• Connection: RJ45

Power supply

• PoE standard: PoE+ - 802.3at
• Power supply: optional
• Mains
• Power consumption operation: 24 W

Antenna

• Gain: 4 dbi

Data transmission

• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11a - WiFi 2, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6E, IEEE 802.11be - WiFi 7

Basic properties

• Color: White
• Height: 160 mm
• Length/depth: 47 mm
• Width: 250 mm
• Weight: 808 g

Scope of delivery

• ZyXEL NWA130 BE 802.11be WiFi 7 NebulaFlex AccessPoint
• Mounting plate
• Mounting screws

Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Design
Placement	Wall
Product colour	White
LED indicators
Features
Maximum data transfer rate	5764 Mbit/s
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4324 Mbit/s
Maximum data transfer rate (6 GHz)	5764 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO type	Multi User MIMO
2.4 GHz
5 GHz
6 GHz
MIMO
Wi-Fi Multimedia (WMM)/(WME)
Fast roaming
VLAN support
Management features
Web-based management
Command-line interface (CLI)
Firmware upgradeable
Operational conditions
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	279.5 mm
Package depth	180.5 mm
Package height	66 mm
Package weight	2.28 kg
Ports & interfaces

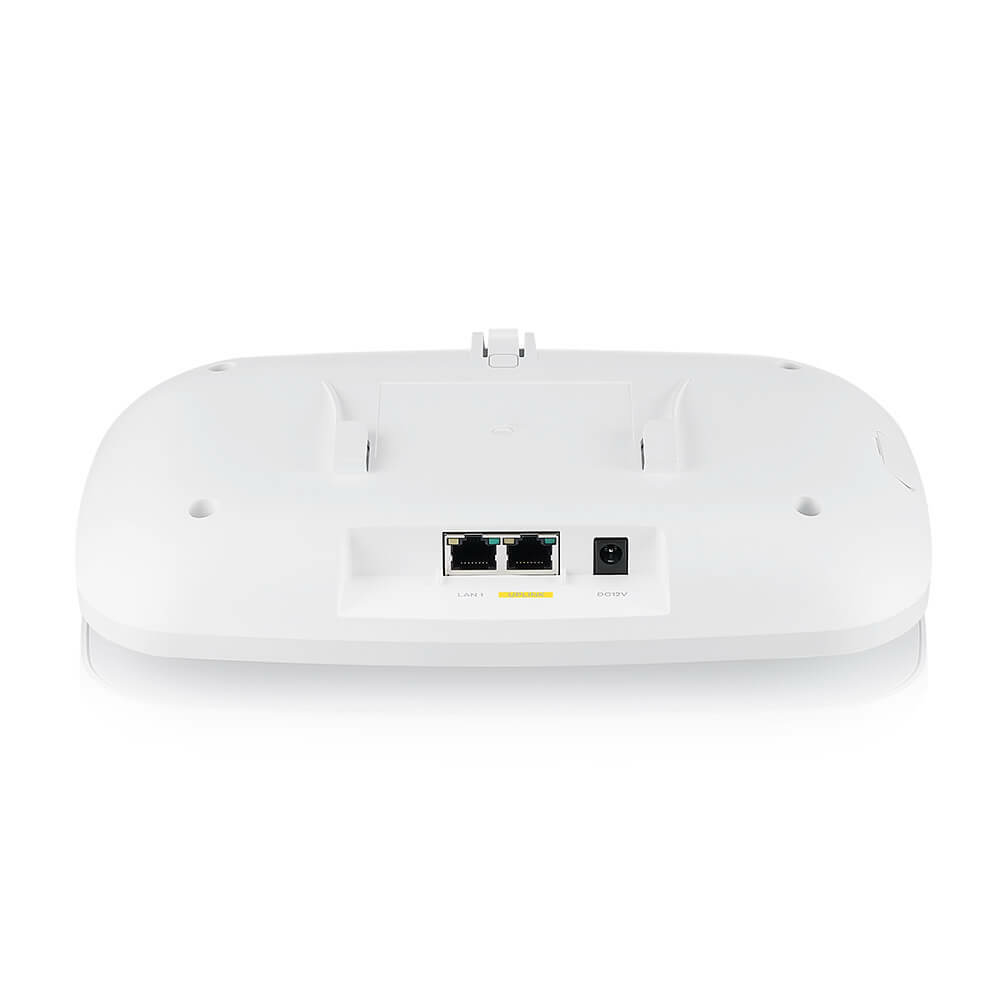

Ethernet LAN (RJ-45) ports	2
Power
DC voltage range	12 V
Input current	2 A
Power over Ethernet (PoE)
Security
Security algorithms	WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
MAC address filtering
Weight & dimensions
Width	250 mm
Depth	160 mm
Height	47 mm
Weight	1.03 kg

---
