Zyxel ATP200-EU0102F ATP200 firewall up to 50 users incl. 1 year Security GOLD Pack
|
772,80 EUR |
|
|
( 919,63 EUR incl. VAT ) ≈ £646.83 | ≈ $849.31 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1533912 |
| Mfg Part No: | ATP200-EU0102F |
| UPC/EAN: | 4718937599240 |
| Weight: | 0.123 kg |
Product information for Zyxel ATP200-EU0102F:
Applications
This device is recommended for networks with up to 50 users. It is particularly suitable for businesses requiring central security control to monitor internet access, block malware and malicious activities, and manage data traffic within the company. Integrated functions such as Web Security, Application Security, Malware Blocker, and Intrusion Prevention (IDP) enable comprehensive defense against various attack vectors. The support for Sandboxing (optional) extends protection by analyzing unknown files in an isolated cloud environment to identify new malware types that conventional static security mechanisms cannot detect.
Functions and Equipment in Detail

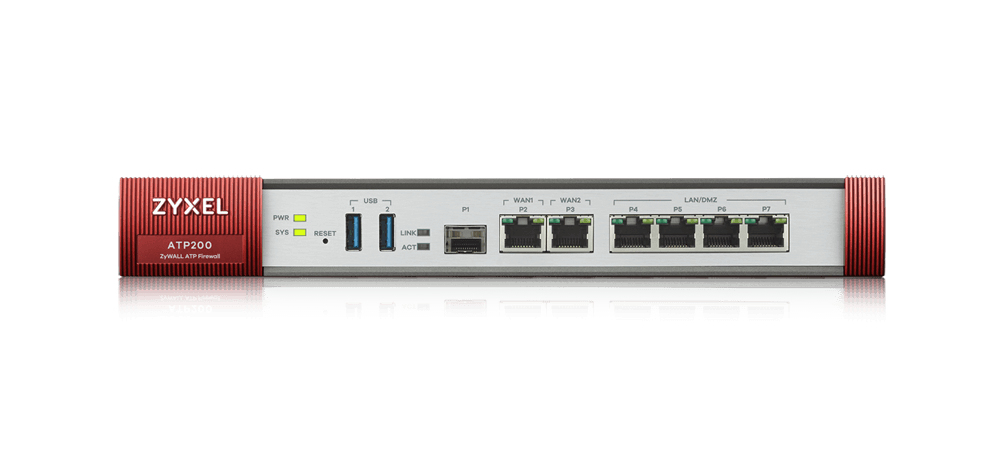

The Zyxel ATP200 features 4 Ethernet LAN ports (RJ-45) with data transfer rates of 10, 100, and 1000 Mbit/s, a dedicated DMZ port, and a WAN port, also via RJ-45. Additionally, an SFP module slot is integrated, enabling the use of fiber optic or copper transceivers. The device includes two USB 3.2 Gen 1 (3.1 Gen 1) Type A ports, which can be used to connect storage devices or other USB peripherals. A console port is also available for direct configuration or maintenance via a serial connection. The Firewall throughput is 2 Gbit/s, with the VPN throughput at 0.5 Gbit/s. The IPSec-VPN throughput is specified as 40 Gbit/s. The maximum number of active TCP connections is 600,000, and the maximum number of connections with stateful packet inspection (SPI) is 2000. HTTPS encryption is supported, as is stateful packet inspection (SPI). The UTM throughput (fast/full scan) is 450/450 Gbit/s.
Technology Explained Simply
The security architecture of the Zyxel ATP200 is based on multi-layered Protection, combining multiple protection mechanisms to defend against attacks from various angles. Cloud Intelligence ensures that unknown threats are detected in real time and shared via a global database with all ATP firewalls, enabling continuous evolution of the security ecosystem to adapt to new attack methods. The Sandboxing function analyzes suspicious files in an isolated environment to observe their behavior without endangering the local network. The SecuReporter function provides cloud-based analysis and reporting, giving network administrators a centralized overview of user activities, threat statistics, application and website usage, as well as the status of VPN connections and device health. The integrated dashboard displays an overview of traffic since the last restart, along with detailed threat statistics from the past seven days.
Compatibility and Accessories
The device is designed for rack mounting and includes an integrated rack mounting kit. The form factor is desktop, with an internal fan providing cooling. Power supply is via an input current of 2.5 A, with power consumption in standard operation at 13.3 W. Heat dissipation is specified as 45.38 BTU/h. Operating temperature ranges from 0 to 40 °C, with storage temperature from -30 to 70 °C. Relative humidity during operation is 10 to 90 %, and the same range applies during storage. Dimensions are 272 x 187 x 36 mm, and weight is 1.4 kg. Certification includes FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI, LVD (EN60950-1), and BSMI. The Mean Time Between Failures (MTBF) is 529,688.2 hours.
Installation and Mounting

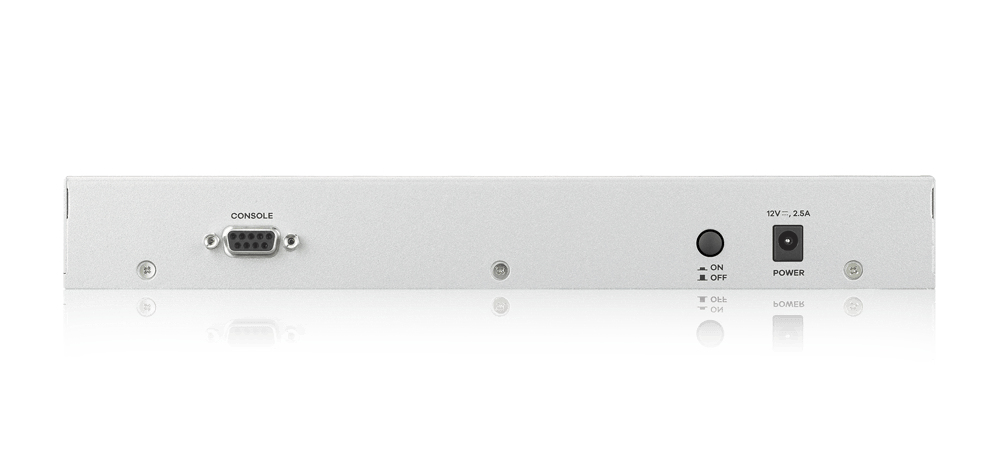

The device can be used as a desktop unit or mounted in a standard 19-inch rack. The included rack mounting kit enables easy installation in a rack system. Configuration is performed via the integrated web interface, console port, or management software. LED indicators and a power switch support visual monitoring and physical operation of the device. Installation requires no special tools, as mounting is done using standard screws.
Operational Advantages
The Zyxel ATP200 offers high performance in processing network traffic and security functions. The combination of local protection functions and cloud-based services enables rapid response to new threats. The integrated Sandboxing function (optional) enhances security against zero-day attacks. The SecuReporter function provides detailed analysis and reports useful for network monitoring and optimization. The ZyWALL ATP200 series is designed to activate network protection immediately after startup, ensuring no security gaps occur. The Firewall throughput of 2 Gbit/s and support for 450 Gbit/s UTM throughput ensure high efficiency in processing data traffic and security checks. Certification according to FCC, CE, and other standards ensures compliance with international requirements for electromagnetic compatibility and safety.
| Certificates | |
| Certification | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI, LVD (EN60950-1), BSMI |
| Data transmission | |
| Firewall throughput | 2 Gbit/s |
| VPN throughput | 0.5 Gbit/s |
| IPSec VPN throughput | 40 Gbit/s |
| SSL performance | 10 transactions/sec |
| UTM throughput (fast/full scan) | 450/450 Gbit/s |
| Maximum connections (SPI) | 2000 |
| HTTPS encryption | |
| Design | |
| Form factor | Desktop |
| Rack mounting | |
| Built-in fan | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| LED indicators | |
| On/off switch | |
| Network | |
| Number of VLANs | 16 |
| Active TCP connections (max) | 600000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Rack mount kit | |
| Packaging data | |
| Package width | 427 mm |
| Package height | 73 mm |
| Package depth | 247 mm |
| Package weight | 2.42 kg |
| Performance | |
| Heat dissipation | 45.38 BTU/h |
| Mean time between failures (MTBF) | 529688.2 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of console ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Ethernet DMZ ports quantity | 1 |
| SFP module slots quantity | 1 |
| Power | |
| Input current | 2.5 A |
| Power consumption (typical) | 13.3 W |
| Security | |
| Content filtering | 1 |
| Stateful Packet Inspection (SPI) | |
| Weight & dimensions | |
| Dimensions (WxDxH) | 272 x 187 x 36 mm |
| Weight | 1.4 kg |
Questions & answers
What is the delivery time of Zyxel ATP200-EU0102F ATP200 firewall up to 50 users incl. 1 year Security GOLD Pack?
The article Zyxel ATP200-EU0102F ATP200 firewall up to 50 users incl. 1 year Security GOLD Pack is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zyxel ATP200-EU0102F to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zyxel ATP200-EU0102F ATP200 firewall up to 50 users incl. 1 year Security GOLD Pack always at the best possible price. We can give you a discount of 2% on Zyxel ATP200-EU0102F ATP200 firewall up to 50 users incl. 1 year Security GOLD Pack if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
