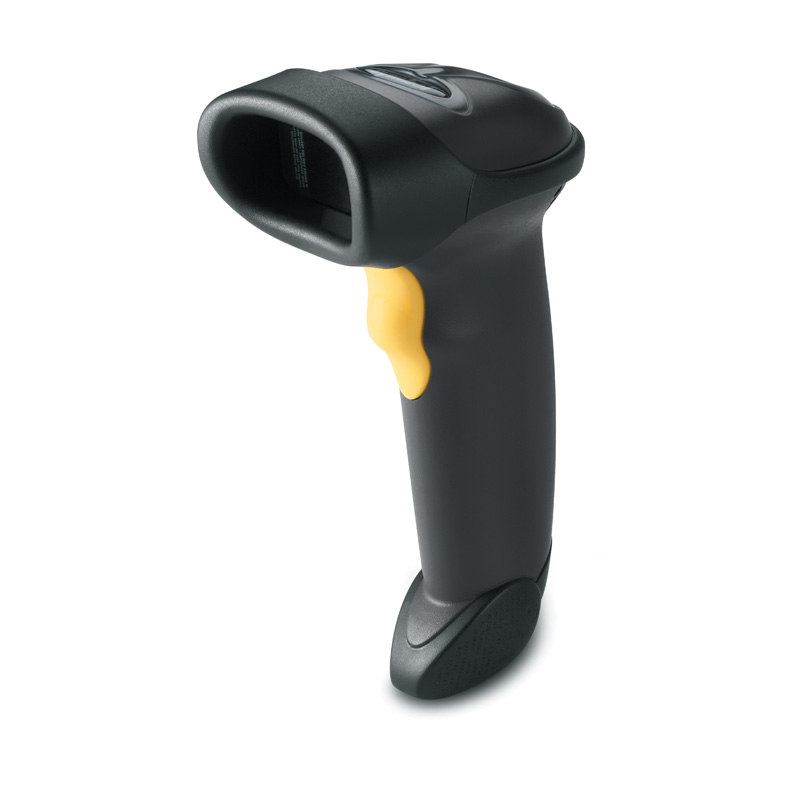

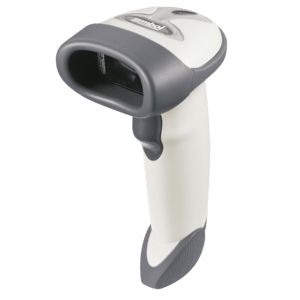

Zebra LS2208-SR20007R Symbol LS2208 - barcode scanner content_copy

The innovative LS 2208 hand-held scanner from Symbol Technologies delivers performance features at an affordable price to make your buying decision easier than ever. If you're seeking investment protection and great value in a small, light scanner that assures maximum productivity, then the LS 2208 is the ideal scanner for you.From the checkout line to the back room, the LS 2208 helps you make the most of your application-specific solution in a variety of ways.Getting started with the LS 2208 is fast and simple with 123Scan setup utility. This easy-to-use tool reduces startup time and costs wherever the scanner is used. To further save you money, the scan element in the LS 2208 is based on a liquid injection process that delivers integral shock protection, providing durability you can count on. These powerful features enable you to reduce downtime and keep maintenance costs to a minimum.In any industry, the high-value LS 2208 hand-held scanner offers superior performance, excellent reliability and user-friendly ergonomics to create a more productive mobile environment. And when you choose the LS 2208, you receive the added assurance of purchasing from Symbol - a company with proven solutions and millions of scanner installations worldwide.

handheld scanner, retail, 1D, laser, standard range, 100 scans/sec., multi-interface (RS232, KBW, USB), order separately: interface cable, colour: anthracite

Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Dimensions (WxDxH)	63 x 84 x 152 mm
Safety	UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Electromagnetic emissions	FCC Part 15 Class B, ICES 003 Class B
Light source	650nm
Performance
Product colour	Black
Ports & interfaces
Standard interfaces	RS-485, USB, Keyboard wedge, RS-232
Power
Input voltage	5 V
Power consumption	130 mA
Scanning
Sensor type	Laser
Tilt reading angle	-30 - 30°
Pitch reading angle	-65 - 65°
Yaw reading angle	-60 - 60°
Decoding standards	UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2 of 5
Scan speed	100 sec/page
Weight & dimensions
Weight	146 g

---
