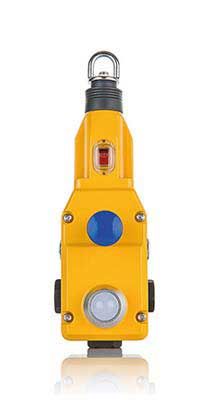

Zander Aachen 940010 ZLS cable pull switch 80m, 3NC, 1NO, E-Stop, LED
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 445879 |
|---|---|
| Mfg Part No: | 940010 |
| Weight: | 0.82 kg |
Product information for Zander Aachen 940010:
Designed for rope lengths up to 80 meters, the ZLS comes in different variants to suit various installation conditions. The included ZANDER mounting and rope-tensioning system ZTK allows easy and precise adjustment of the rope tension. When the green arrows are visible in the switch's viewing window, proper tension is confirmed – simplifying installation, troubleshooting, and maintenance.
An additional emergency-stop button can be mounted on either side of the switch unit and is included in the package.
With a rugged die-cast light alloy housing, IP67 protection, and high mechanical durability, this switch is well-suited for continuous industrial use.
**Technical Specifications:**
Applications:
- Safety for large systems like conveyor belts, rolling systems, extrusion machinery
Certifications:
- IEC 60947-5-5
- IEC 60947-5-1
- EN 60947-5-5
- EN 60947-5-1
- EN 60204-1
- ISO 13850
Approvals:
- CE
- TÜV
Contacts:
- 3 normally open (forced opening)
- 1 normally closed
Switching capacity / Minimum load current:
- AC-15: 3 A / 240 V
- DC: 5 V / 10 mA
Actuation force (rope pulled):
- < 125 N
Maximum rope length:
- 80 m
Temperature range:
- -25 °C to +80 °C
LED indicator (DC 24 V):
- Red flashing: unsafe condition
- Green constant: safe condition
Housing material:
- Die-cast light alloy
Protection class:
- IP67
Mechanical life:
- 1.5 million switching cycles
Weight:
- 820 g
Order number:
- 940010
Included in delivery:
- ZLS rope-pull safety switch
- Mounting/rope-tensioning system ZTK
- Emergency stop button (mountable on both sides)
Type: ZLS Seilzugschalter 80m
