Zander Aachen 585470 Coupling WGK, 28mm long, 2 clamping screws M3

Description:

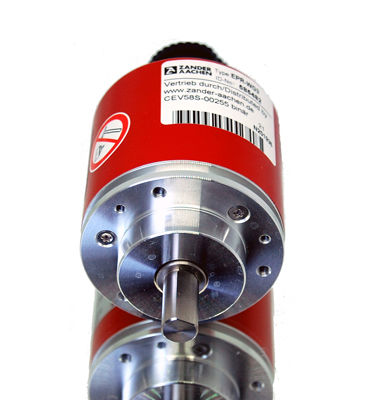

The EPR-WG is a robust, absolute single-turn encoder designed for use with programmable controllers like EPR16, EPR48, EPC16, and EPC48. Featuring optoelectronic, contactless scanning and a durable mechanical structure, it is suitable for high-load and high-speed applications.

Features:

• Resolution: 360 or 1000 steps per revolution
• Supported Codes: Binary or Gray-Excess-76 code
• Push-pull outputs
• Outputs are short-circuit proof and reverse-polarity protected
• Reversible rotation direction (with adapter cable 585738, required from 2020 onward)
• Direct connection to EPR/EPC controllers
• Mechanically robust design
• Available with axial or radial connector

Technical Specifications:

• Supply Voltage: +10 to +24V
• Output Signals: Short-circuit proof and reverse-polarity protected
• Mechanical Durability: Suitable for high speeds
• Sensing: Optoelectronic, contactless, and wear-free

Connector Pinout and Cable Colors:

| Pin (12-pin) | Pin (17-pin) | Pin (25-pin) | Signal | Cable Color |
|------------------|------------------|------------------|------------|-------------------|
| 1 | 17 | 1,14 | 0V | Blue |
| 2 | 1 | 2,20 | G0 | Brown |
| 3 | 2 | 15,21 | G1 | Green |
| 4 | 3 | 3,22 | G2 | Black |
| 5 | 4 | 16,23 | G3 | Gray |
| 6 | 5 | 4,24 | G4 | White |
| 7 | 6 | 17,25 | G5 | Pink |
| 8 | 16 | 13,25 | +10..24V | Red |
| 9 | 7 | 5,26 | G6 | Violet |
| 10 | 8 | 18,27 | G7 | Red/Blue |
| 11 | 9 | 6,28 | G8 | Yellow |
| - | 10 | 19,29 | Gray/Pink | Gray/Pink |
| 12* | - | 10 | Fwd/Rev | Gray/Pink |
| Housing | Shield | | Shield | |

Installation Notes:

• Mount on the front side using 3 M4 screws
• Use a suitable membrane coupling for shaft connection (see accessories)
• Protect against:
- Electrostatic discharge
- Excessive mechanical forces on the shaft
- Impacts, shocks, and vibrations
- Extreme temperatures and chemical exposure


Note:

From 2020 onward, rotation direction can no longer be changed via a jumper on the device. Use the 585738 adapter cable to reverse the direction.


Optional Accessories:

• Shielded connection cables in various lengths with connectors on both ends (see part numbers)
• Adapter cable for reversing rotation direction (Part No. 585738)

Included Items:

• EPR-WG encoder (with axial or radial connection)
• Installation manual
• Optional cables and adapters available separately

Applications:

Ideal for processing machines, packaging machines, labeling systems, machine tools, and other industrial applications.
Type: Kupplung WGK, 28mm lang
