Zander Aachen 585455 EPR16-OK 0.5A opto output short circuit proof
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 442634 |
|---|---|
| Mfg Part No: | 585455 |
| Weight: | 0.13 kg |
Product information for Zander Aachen 585455:
Description:
The extension cards EPR16-RE and EPR16-OK enhance the digital output capabilities of the EPR16 and EPR16S controllers. The EPC16 controller already includes integrated transistor outputs and is therefore only compatible with the Relay Card EPR16-RE.Relay Card EPR16-RE:
- 16 digital relay outputs
- Watch-Dog output as a potential-free relay contact
- All relay contacts protected by 250V-varistors
- Two galvanically isolated contact blocks: - Block 1: Outputs 1–8 and Watch-Dog
- Can operate with different voltages
- Block 2: Outputs 9–16

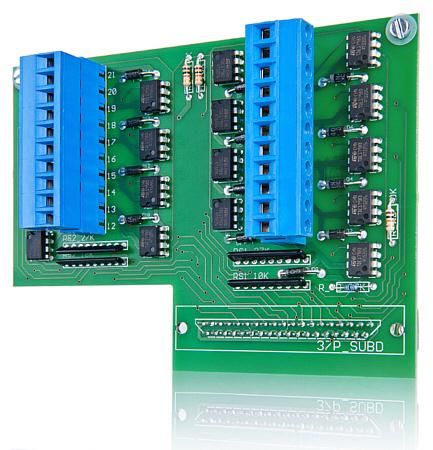

Power Optocoupler Card EPR16-OK:
- 16 electronic transistor outputs
- Watch-Dog output as a 0.5A transistor output
- Outputs galvanically isolated via optocouplers
- Short-circuit proof and overheat protected
- Two contact blocks with common connections: - Block 1: Outputs 1–8 and Watch-Dog
- Maximum continuous current per output: 0.5A
- Automatic reset after overload removal
- External operating voltage: DC 10–30V
- Load connected between output (A1–A16) and 0V
- Block 2: Outputs 9–16
Installation and Connections:
- Directly connects to the OUTPUT socket of the EPR16, EPR16S, and EPC16 controllers
- Secured with included screws to designated mounting bolts
- Power supply for relays provided by the controller
- Notes: - Ensure proper seating of the detachable terminal block connectors
- EPR16-RE: - 16 galvanically isolated relay outputs
- EPR16-OK: - 16 transistor outputs (short-circuit proof)
- Extension card (EPR16-RE or EPR16-OK)
- Mounting screws
- Installation manual
- Inductive loads (e.g., solenoids, contactors) require protective circuits (RC network or varistor)
Technical Specifications:
- Protection via 250V-varistors
- Compatible with EPR16, EPR16S, EPC16
- Max. continuous current: 0.5A per output
- External DC voltage: 10–30V
- Compatible with EPR16, EPR16S
Included Items:
Note:
Inductive loads such as solenoids or contactors must be equipped with protective circuits.Type: EPR16-OK 0,5A Optoausg.
