Zander Aachen 445091 DFP remote potentiometer 100kOhm, including mounting kit (DMC,DVC)

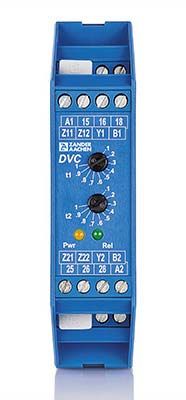

The universal multifunction timer relay DVC is designed specifically for controlling time-dependent processes in machinery and equipment. It offers a wide range of configurable functions and time ranges, making it suitable for various industrial applications. With two independent time circuits and flexible voltage supply, the DVC provides a reliable and versatile solution for industrial use.

Features:

• 16 Functions:
- On-delay
- Off-delay
- On- and off-delay
- On pulse
- Off pulse
- On- and off pulse
- Flashing
- Impulse generator
- Pulse shaping
- Partially inverted
- Integrated electronic sensor

• 2 independent time circuits:
- Time ranges per circuit:
- 0.3-3s
- 1-10s
- 0.1-10min
- 1-10min

• Operating Voltages:
- AC 230V
- DC 12-30V


Functionality:

• Time Range Selection:
The desired time ranges for the two circuits (t1 and t2) are set using switches 6-7 and 8-9 according to a reference table. The potentiometer’s maximum position determines the maximum time.

• Function Triggering:
- Functions such as off-delay," "on- and off-delay," "off pulse," "on- and off pulse," and "pulse shaping are triggered via a potential-free contact at Y1-Y2.
- Changes in state at Y1-Y2 directly impact the associated time function, regardless of any remaining previous time.
- All other functions start automatically when the operating voltage is applied.

• Note: Once the operating voltage is applied, function and time range cannot be changed.

Safety Precautions:

• Installation and commissioning must only be performed by qualified personnel.
• All relevant safety regulations and standards must be observed.
• Wiring changes are only allowed in a de-energized state.

Included Items:

• Multifunction timer relay DVC

Applications:

• Industrial machinery control
• Time-dependent processes in production
• Automation technology

Type: DFP Fernpotentiometer 100kOhm
